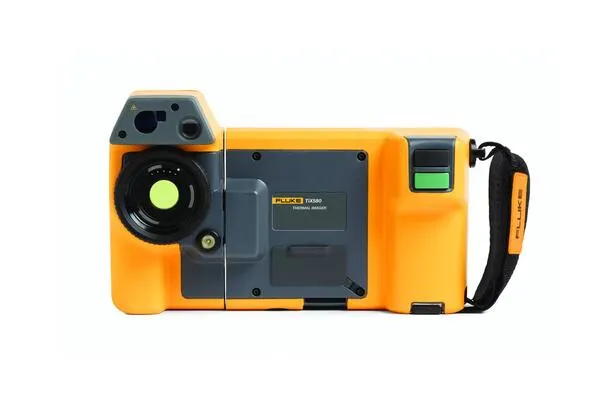

The Fluke TiX580 thermal camera is designed for industrial applications, oil and gas, power plants, and large facilities. This device, featuring an infrared resolution of 1024×768 pixels and SuperResolution technology, provides exceptional image quality and enables the identification of the most precise thermal anomalies.
The LaserSharp™ Auto Focus combined with an internal laser distance meter creates accurate and crystal-clear images with just one touch. The MultiSharp™ Focus technology allows for simultaneous focusing from near and far, while the IR-Fusion™ combines thermal and visual images for optimal and faster thermal analysis.
The durable and ergonomic design of the TiX580 meets the IP54 protection standard and offers drop resistance up to 2 meters. Additionally, this device supports interchangeable lenses suitable for specific applications such as macro, wide-angle, and telephoto.
The TiX580 is an ideal choice for technical teams and engineers looking for reliable, precise, and professional thermal imaging for harsh and complex industrial environments.
🔹 Key Features of the Fluke TiX580
-
Infrared Resolution: 1024×768 pixels
-
SuperResolution technology for enhanced image quality
-
High Distance-to-Spot (D:S) ratio for accurate detection from long distances
-
LaserSharp™ Auto Focus and MultiSharp™ Focus technologies
-
IR-Fusion™ technology for combining thermal and visual images
-
Variable field of view with interchangeable lenses
-
Minimum focus distance of approximately 15 cm
-
Thermal sensitivity (NETD): ≤ 0.04 °C
-
Rugged design: IP54 rated with drop resistance up to 2 meters
-
Large ergonomic touch display
-
Suitable for industrial, oil and gas, power plant, and predictive maintenance applications
🔹 Technical Specifications of the Fluke TiX580
| Feature | Value |
|---|---|
| Infrared Sensor Resolution | 1024 × 768 pixels |
| SuperResolution Technology | Yes (Resolution enhancement up to 2048 × 1536) |
| Distance-to-Spot (D:S) Ratio | Very High |
| Field of View (FOV) | Variable with interchangeable lenses |
| Minimum Focus Distance | Approximately 15 cm |
| Focusing | LaserSharp™ Auto Focus and MultiSharp™ Focus |
| Image Combination Technology | IR-Fusion™ |
| Durable Design | IP54, drop resistance up to 2 meters |
| Display | Large ergonomic touch display |
| Weight | Approximately 1.3 kg |
| Temperature Measurement Range | –20 °C to +1200 °C |
| Interchangeable Lenses | Telephoto, wide-angle, macro |
❓ Frequently Asked Questions (FAQ)
Q1: Is the TiX580 suitable for heavy industrial environments?
Yes, with its rugged body, IP54 standard, and drop resistance, it's completely feasible to use in harsh industrial settings.
Q2: What is the difference between the TiX580 and lower models?
The higher resolution, SuperResolution technology, advanced focusing, and interchangeable lenses distinguish the TiX580 for professional applications and large environments.
Q3: Are different lenses available for use?
Yes, this model supports telephoto, wide-angle, and macro lenses, making it highly suitable for specific industrial applications.
Q4: Is there the possibility of combining infrared and visible images in the TiX580?
Yes, the IR-Fusion™ technology enables the thermal image to be combined with the real image for more precise analysis.
🔚 Conclusion
The Fluke TiX580 thermal camera is a robust, advanced solution for professional thermal imaging in complex and demanding industrial environments.
