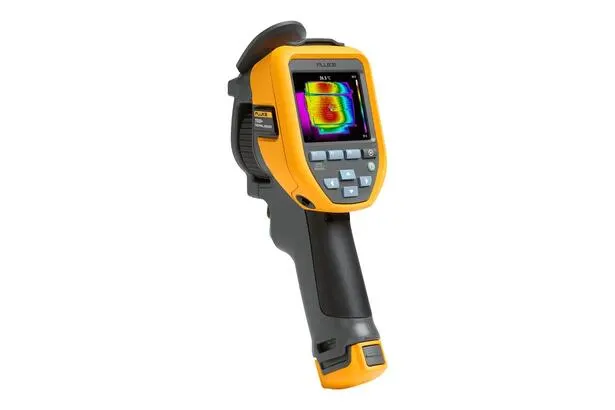

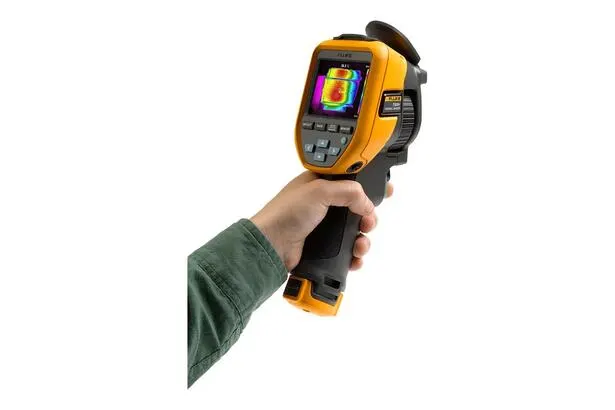

The Fluke TiS55+ thermal camera is a professional product from the American brand Fluke, designed for industrial applications and electrical equipment inspection.
This device offers a resolution of 256×192 pixels (a total of 49,152 pixels) and a frame rate of 27 Hz, enabling accurate identification of hot spots and thermal status analysis of equipment.
The IR-Fusion technology in this model combines the infrared image with the actual ambient image to simplify and speed up the detection of thermal defects.
The Asset Tagging feature also allows users to automatically categorize related images by scanning a QR code of each device.
The Fluke TiS55+ is highly resistant in terms of industrial design, capable of withstanding drops from a height of 2 meters without damage. Additionally, it is protected against dust and water splashes with an IP54 rating. These features make it an ideal choice for harsh industrial environments.
The device features a 3.5-inch touchscreen display with a resolution of 640×480 and has an internal storage capacity of approximately 500 images.
An SD memory card can also be used to increase storage capacity. The temperature measurement range for this model is from -20 °C to +550 °C.
🔹 Key Features of Fluke TiS55+
-
Infrared resolution: 256×192 pixels (49,152 pixels)
-
Frame rate: 27 Hz
-
IR-Fusion technology for combining infrared and real images
-
Thermal sensitivity: 40 mK
-
Field of view: 28° × 20°
-
Minimum focus distance: 0.5 meters
-
Asset Tagging capability with QR code
-
Internal storage: up to 500 images
-
Supports SD memory card up to 4 GB
-
3.5-inch touchscreen display: 640×480
-
Temperature measurement range: -20 °C to +550 °C (-4 °F to +1022 °F)
-
Drop resistance: from 2 meters
-
IP54 protection standard
🔹 Technical Specifications (Fluke TiS55+)
| Feature | Value |
|---|---|
| Infrared resolution | 256×192 pixels (49,152 pixels) |
| Frame rate | 27 Hz |
| Field of view (FOV) | 28° × 20° |
| Minimum focus distance | 0.5 m (1.64 ft) |
| Thermal sensitivity (NETD) | 40 mK |
| Minimum span measurement | Manual: 4.5 °F (3 °C) / Automatic: 9 °F (5 °C) |
| Temperature measurement range | -20 °C to +550 °C (-4 °F to +1022 °F) |
| Display | 3.5-inch (8.9 cm) touchscreen: 640×480 |
| Internal storage | Approximately 500 images |
| External memory | SD card minimum 4 GB |
| Protection degree | IP54 |
| Drop resistance | Up to 2 meters |
❓ Frequently Asked Questions (FAQ)
Q1: What applications is this camera suitable for?
For inspecting electrical equipment, predictive maintenance, detecting hot spots in boiler rooms, electrical panels, and industrial equipment.
Q2: Does it have software connectivity?
Yes, it supports Fluke Connect software and Asset Tagging capabilities for capturing and reporting images.
Q3: Can it be used in harsh industrial environments?
Yes, with an IP54 rating and drop resistance from 2 meters, it is well-suited for industrial environments.
Q4: What are the differences among the different TiS models?
The primary differences are in resolution, frame rate, and software capabilities; the TiS55+ model offers greater accuracy and features compared to lower versions.
🔚 Conclusion
The Fluke TiS55+ thermal camera is a powerful tool for engineers, technicians, and industrial maintenance teams.
With high accuracy, capabilities...
