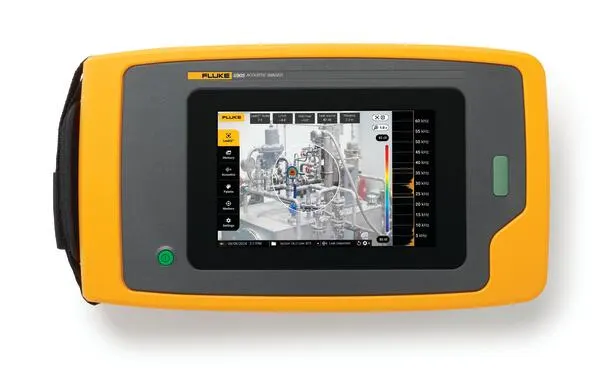

The Fluke ii905 Acoustic Imager is a professional acoustic imager that uses an array of sensitive microphones and sound processors to identify hidden leaks in gas, air, or vacuum lines and visually display them.
This device features a 7-inch touchscreen display that simultaneously shows visual imagery and audio SoundMap™ data, easily and accurately indicating the location of leaks on the screen.
In LeakQ™ mode, the device can estimate the approximate size and cost of the leak based on the sound level and distance to the leak.
With a frequency range from 2 kHz to 65 kHz and a detection range of up to about 70 meters, this tool performs effectively even in noisy environments. Its rugged design, replaceable battery, and capability to store thousands of photos and videos are other key features.
The Fluke ii905 is suitable for use in the oil and gas, manufacturing industries, compressed air systems, vacuum systems, and large facilities, allowing users to find leaks more quickly and at lower costs, thus planning corrective actions efficiently.
🔹 Key Features of Fluke ii905
-
Simultaneous acoustic leak detection and imaging with SoundMap™ technology
-
Detection range of up to approximately 70 meters depending on environmental conditions
-
Wide frequency range of 2 kHz to 65 kHz
-
High-resolution 7-inch touchscreen display
-
LeakQ™ mode for estimating size, rate, and cost of leaks
-
Image and video storage capability for documentation
-
Industrial robust design suitable for noisy and harsh environments
-
Intuitive user interface with minimal training required
🔹 Technical Specifications of Fluke ii905
| Feature | Value |
|---|---|
| Frequency Range | 2 kHz to 65 kHz |
| Approximate Detection Range | 0.5 to > 70 meters |
| Display | 7-inch touchscreen, resolution 1280 × 800 |
| Storage Memory | 32 GB (over 8000 photos / over 1600 videos) |
| Image/Video Storage Format | JPG or PNG, MP4 of combined Image and SoundMap™ |
| Data Transfer Interface | USB-C |
| Battery | Replaceable, approximately 6 hours lifespan |
| Protection Rating | IP40 |
| Dimensions | Approximately 186 × 322 × 68 mm |
| Weight | Approximately 2 kg |
❓ Frequently Asked Questions (FAQ)
Q: Is this device only suitable for gas?
A: No, the ii905 can also be used for compressed air, vacuum, and pressurized systems.
Q: Does it require hard training?
A: No, the simple user interface and LeakQ™ mode allow even users with minimal experience to quickly perform operations.
Q: Does it work in noisy environments?
A: Yes, the wide frequency range and background noise suppression algorithm ensure efficacy in industrial environments.
Q: Is there a possibility of documenting results?
A: Yes, thousands of photos and videos can be stored and utilized for reporting purposes.
🔚 Conclusion
The Fluke ii905 Acoustic Imager, with its combination of acoustic imaging, suitable design for industrial spaces, and documentation capabilities, is an excellent choice for industrial maintenance teams.
If you are looking for a professional tool for the quick and accurate detection of leaks in complex systems, this device is a reliable and advanced option.
📎 Official Datasheet Link
👉 Download the datasheet Fluke ii905 (PDF)
