The Fluke ii915 Acoustic Imager utilizes an array of sensitive microphones and sound processing technology to allow you to 'see' sound.
This device has three working modes: LeakQ™ for leaks, PDQ™ for partial discharge in high-pressure equipment, and MecQ™ for investigating mechanical issues such as bearings or belts. With a frequency range of up to 100 kHz and a detection range of over 120 meters, the tool becomes a highly powerful option in noisy industrial environments.
The 7-inch high-resolution touchscreen display, along with photo and video storage capabilities, enables effective reporting and documentation of repairs. This device is a professional choice for manufacturing plants, refineries, compressed air lines, vacuum systems, power stations, and other industrial applications where sudden downtime is costly.
🔹 Key Features of Fluke ii915
-
Acoustic leak detection and imaging with SoundMap™ technology
-
LeakQ™ mode for assessing leak magnitude, volume, and associated costs
-
PDQ™ mode for identifying electrical partial discharges
-
MecQ™ mode for non-contact inspection of mechanical defects
-
Frequency range from 2 kHz to 100 kHz
-
Detection range of up to over 120 meters (depending on environmental conditions)
-

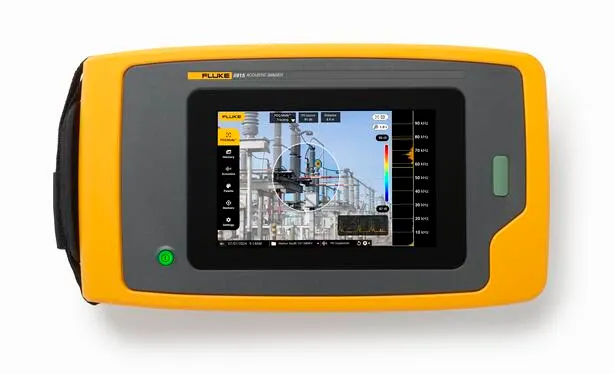

7-inch high-resolution touchscreen display
-
Photo and video storage for documentation and reporting
-
Rugged industrial design suitable for noisy environments
🔹 Technical Specifications of Fluke ii915
| Feature | Value |
|---|---|
| Frequency range | 2 kHz to 100 kHz |
| Approximate detection range | 0.5 meters to over 120 meters |
| Display | 7-inch touchscreen, 1280×800 pixel resolution |
| Storage memory | 32 GB (over 8000 photos / over 1600 videos) |
| Sound measurement accuracy | Variable range based on frequency (e.g., ±1 dB SPL at 2 kHz) |
| Battery life | Approximately 6 hours |
| Weight | Approximately 2 kilograms |
| Protection rating | IP40 |
| Connection interface | USB-C |
❓ Frequently Asked Questions (FAQ)
Q: Is the ii915 only for gas leak detection?
A: No, it is also suitable for compressed air leaks, vacuum, electrical partial discharge, and mechanical defects.
Q: Does it require extensive training?
A: No, the simple user interface and three separate modes make it usable by maintenance teams with minimal training.
Q: Does it perform well in noisy environments?
A: Yes, the high-frequency design and sound localization allow leaks to be detected even in harsh environments.
Q: Does it have documentation capabilities for reporting?
A: Yes, it features photo and video storage, along with the option to add comments to each photo for documentation.
🔚 Conclusion
The Fluke ii915 Acoustic Imager, combining acoustic imaging technology, industrial design, and documentation capabilities, is an excellent choice for professional maintenance teams.
If your goal is rapid, accurate detection with minimal production downtime for leaks, discharges, or mechanical defects in industrial systems, this device is a reliable and advanced option.
📎 Official Datasheet Link
👉 Download the datasheet Fluke ii915 Acoustic Imager (PDF)
