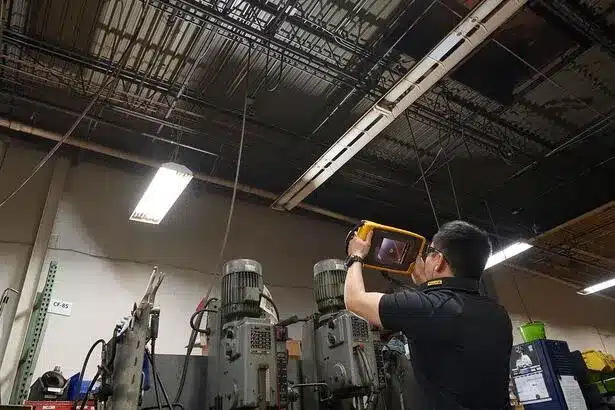

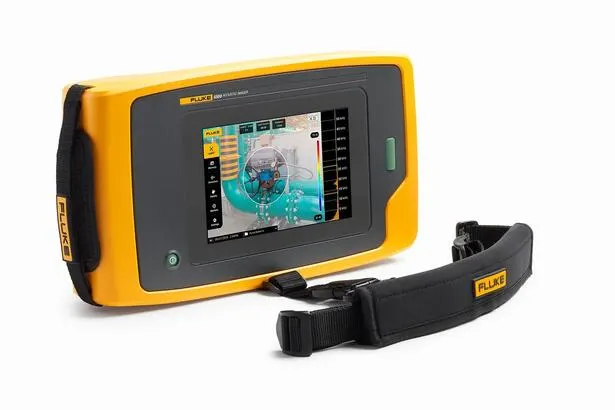

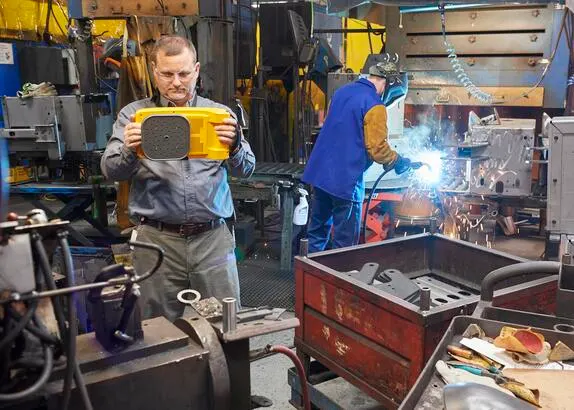

The Fluke ii500 Acoustic Imager is a specialized device for the acoustic and visual detection of gas, compressed air, and vacuum leaks in industrial lines. This device combines sensitive microphones, SoundMap™ technology, and a touchscreen display to create an acoustic image of the leak location, helping technicians identify the exact leak point without the need for destructive and time-consuming methods.
With a frequency range of 2 to 52 kHz and the ability to detect leaks up to approximately 50 meters, this device performs strongly even in noisy industrial environments.
Its rugged design, internal memory, photo/video storage capability, and data logging on-site make the maintenance and reporting process faster. With the ii500, maintenance teams can quickly access critical parameters, reducing production line downtime.
🔹 Key Features of Fluke ii500
-
Acoustic leak detection with SoundMap™ technology
-
Frequency range of 2 to 52 kHz for industrial environments
-
7-inch touchscreen display for real-time viewing
-
Photo and video storage capability for documentation
-
Leak detection ability up to approximately 50 meters
-
Industrial rugged design suitable for noisy environments
-
Simple process, no extensive training required for teams
🔹 Technical Specifications of Fluke ii500
| Feature | Value |
|---|---|
| Frequency Range | 2 to 52 kHz |
| Approximate Detection Range | Up to ≈ 50 meters (≈164 feet) |
| Display | 7-inch high-resolution touchscreen |
| Storage Memory | Thousands of photos and videos |
| Connection Interface | USB-C |
| Battery Life | Approximately 6 hours |
| Protection Ratings | Rugged industrial design |
| Weight | Approximately 2.1 kilograms |
❓ Frequently Asked Questions (FAQ)
Q: Is ii500 suitable only for gas?
A: No, in addition to gas, it can also be used for air, vacuum leaks, and industrial noises.
Q: Does it require complex training?
A: No, the simple user interface and SoundMap™ technology enable maintenance teams to work quickly.
Q: Is it effective in noisy environments?
A: Yes, the high-frequency range and large number of microphones make it possible to detect leaks even in noisy environments.
🔚 Conclusion
The Fluke ii500 Acoustic Imager, with its combination of acoustic imaging technology, rugged design, and quick usability, is an ideal choice for industrial maintenance teams.
If your goal is rapid and accurate leak detection in production lines or compression systems, this tool can elevate your performance to a higher level.
📎 Official Datasheet Link
👉 Download datasheet Fluke ii500 Acoustic Imager (PDF)
