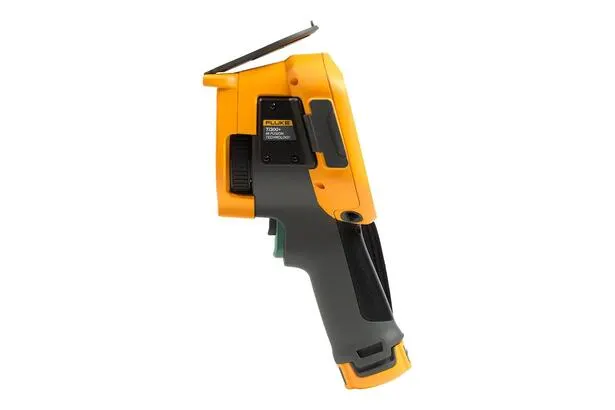

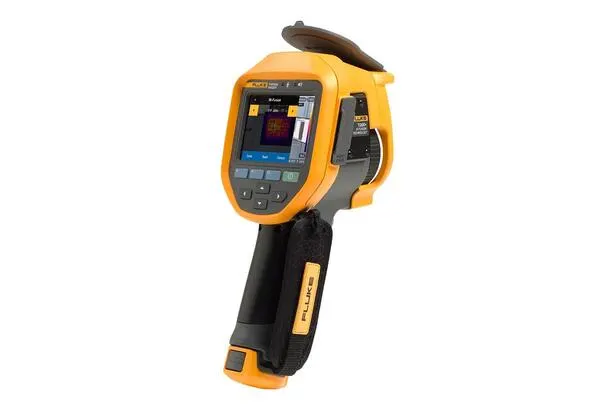

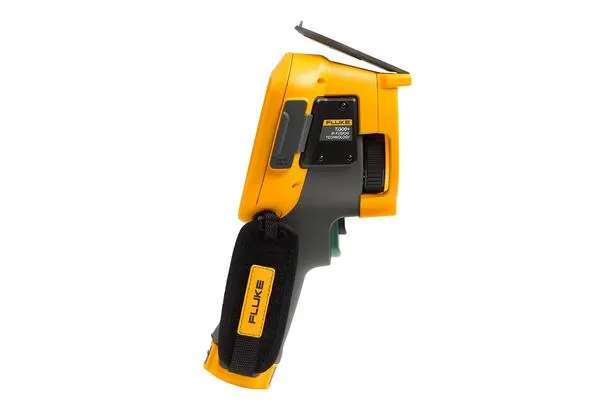

The Fluke Ti300+ thermal camera is part of Fluke's industrial thermal imaging tools designed to accurately detect thermal anomalies in electrical, mechanical, and production line equipment.
The product features an infrared resolution of 320×240 pixels (76,800 pixels) and a distance-to-spot (D:S) ratio of 532:1, enhancing its capability for precise detection from distances.
LaserSharp™ Auto Focus and an internal laser distance meter provide the ability to capture accurate images with minimal focus error.
Moreover, the capability to fuse infrared images with visible images (IR-Fusion™) allows users to conduct thermal analysis along with an accurate visual background.
The rugged design of this device is suitable for harsh industrial environments: it is drop-resistant from heights of 2 meters, has an IP54 protection rating, and weighs approximately 1.04 kg.
For work in production lines, industrial installations, and predictive maintenance applications, the Ti300+ is a practical tool that significantly aids in early detection of thermal issues, enhancing safety, and reducing unexpected downtimes.
🔹 Key Features of Fluke Ti300+
-
Infrared Resolution: 320×240 pixels (76,800 pixels)
-
Distance to Spot Ratio D:S = 532:1
-
LaserSharp™ Auto Focus
-
IR-Fusion™ Image Blending Technology
-
Field of View 34° × 24°
-
Minimum Focus Distance of approximately 15 centimeters
-
Thermal Sensitivity (NETD) ≤ 0.075°C (75 mK)
-
Frame Rate 60 Hz
-
Drop Resistance from a height of 2 meters
-
Protection Rating IP54
-
Weight of approximately 1.04 kg
-
Suitable for industrial inspection, predictive maintenance, and repair programs
🔹 Technical Specifications of Fluke Ti300+
| Feature | Value |
|---|---|
| Infrared Resolution | 320 × 240 pixels |
| Distance to Spot Ratio (D:S) | 532:1 |
| Field of View (FOV) | 34° × 24° |
| Minimum Focus Distance | Approximately 15 cm (6 in) |
| Thermal Sensitivity (NETD) | ≤ 0.075°C (75 mK) |
| Frame Rate | 60 Hz |
| Temperature Measurement Range | Approximately -20°C to +650°C |
| Focus Type | Laser Auto + Manual |
| Protection Class | IP54 |
| Drop Resistance | Up to 2 meters |
| Weight | Approximately 1.04 kg |
❓ Frequently Asked Questions (FAQ)
Q1: Is it suitable for industrial maintenance applications?
Yes, the high resolution, suitable distance-to-spot ratio, and autofocus features make this device very appropriate for predictive maintenance in industries.
Q2: Can it be used in harsh industrial environments?
Yes, the rugged design, with drop resistance to 2 meters and an IP54 rating, enables its use in tough industrial settings.
Q3: What is the difference between Ti300+ and simpler models?
The Ti300+ version offers higher resolution, better sensitivity, laser autofocus technology, and image blending capabilities, designed for more professional applications.
Q4: Does it have wireless connectivity or reporting capability?
Yes, the Ti300+ model supports data sharing and reporting via related software and WiFi networks.
🔚 Conclusion
The Fluke Ti300+ thermal camera is a comprehensive tool for maintenance engineers, inspection professionals, and industrial teams that require high precision, rapid performance, and significant durability.
With its appropriate resolution, advanced capabilities, and rugged design, this device can help reduce production downtimes, enhance safety, and improve productivity in industrial environments.
If you require professional and reliable thermal imaging in your industry, the Ti300+ is an excellent choice.
