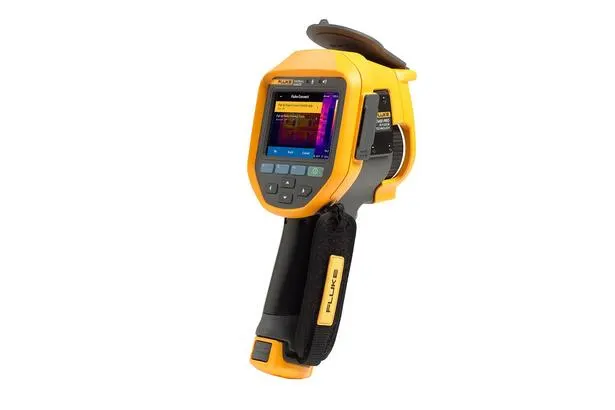

The Fluke Ti480 PRO thermal camera is designed from Fluke's professional series to meet the challenging needs of industries, large facilities, oil and gas applications, power plants, and manufacturing centers.
This device features a 640×480 pixel infrared sensor (equivalent to 307,200 pixels) and SuperResolution technology that enhances it to 1280×960 (614,400 pixels), providing exceptionally precise imagery.
The LaserSharp™ Auto Focus technology with an internal laser distance meter allows for precise focusing on the target with just a touch, even in tough industrial conditions. Additionally, the MultiSharp™ Focus technology ensures that images from both near and far are captured clearly, facilitating more accurate detection.
The IR-Fusion™ capability with different image blending modes provides a combination of visual and infrared images to enable rapid identification of thermal anomalies and accurate visibility of the visual context.
The body of this device is engineered to be robust; designed to withstand drops from heights of up to 2 meters, rated with an IP54 protection standard, making it suitable for use in harsh and hazardous industrial environments.
Overall, the Ti480 PRO is an excellent choice for companies and industrial facilities looking for an accurate, powerful, and reliable tool for thermal inspection; this device helps identify issues before they escalate into prolonged failures, reduce maintenance costs, and increase equipment efficiency.
🔹 Key Features of the Fluke Ti480 PRO
-
Infrared Resolution: 640×480 pixels (307,200 pixels)
-
SuperResolution Technology (enhancement up to 1280×960)
-
Distance to Spot Ratio (D:S) of 1065:1
-
Field of View: 34° × 24°
-
Minimum Focus Distance: approximately 15 cm
-
LaserSharp™ Auto Focus and MultiSharp™ Focus Technology
-
Thermal Sensitivity (NETD): ≤ 0.05 °C (50 mK)
-
Rugged body with IP54 rating and drop resistance up to 2 meters
-
Ergonomic design with pistol grip for one-handed use
-
IR-Fusion™ Technology with image blending modes
-
Supports interchangeable smart lenses (telephoto, wide angle, macro)
-
Suitable for industrial environments, oil and gas applications, power plants, and predictive maintenance programs
🔹 Technical Specifications of the Fluke Ti480 PRO
| Feature | Value |
|---|---|
| Infrared Sensor Resolution | 640 × 480 pixels (307,200 pixels) |
| SuperResolution Technology | Yes (enhancement up to 1280 × 960) |
| Distance to Spot Ratio (D:S) | 1065:1 |
| Field of View (FOV) | 34° × 24° |
| Minimum Focus Distance | Approximately 15 cm |
| Thermal Sensitivity (NETD) | ≤ 0.05 °C (50 mK) |
| Temperature Measurement Range | Approximately –20 °C to +1000 °C |
| Display | 3.5-inch Touchscreen LCD (640×480) |
| Weight | Approximately 1.04 kg |
| Protection Rating | IP54 |
❓ Frequently Asked Questions (FAQ)
Q 1: Is this device suitable for heavy industrial environments?
Yes, it is well-suited for harsh industrial environments due to its rugged design, IP54 standard, drop resistance, and interchangeable lenses.
Q 2: If precise detection of very small hot spots is required, is the Ti480 PRO a good choice?
Yes, with high resolution, a high distance to spot ratio, and 50 mK sensitivity, it enables more accurate detection even at long distances.
Q 3: Is it possible to use different lenses?
Yes, this model supports interchangeable smart lenses that are useful for specific applications such as macro or telephoto.
Q 4: What is the difference between the Ti480 PRO and lower models?
Higher resolution, SuperResolution technology, better distance to spot ratio, advanced focusing features, and interchangeable smart lenses distinguish the Ti480 PRO for more professional applications.
🔚 Conclusion
The Fluke Ti480 PRO thermal camera is an excellent choice for companies, industrial facilities, maintenance teams, and inspectors seeking a tool that offers exceptional accuracy, advanced capabilities, and industrial durability.
