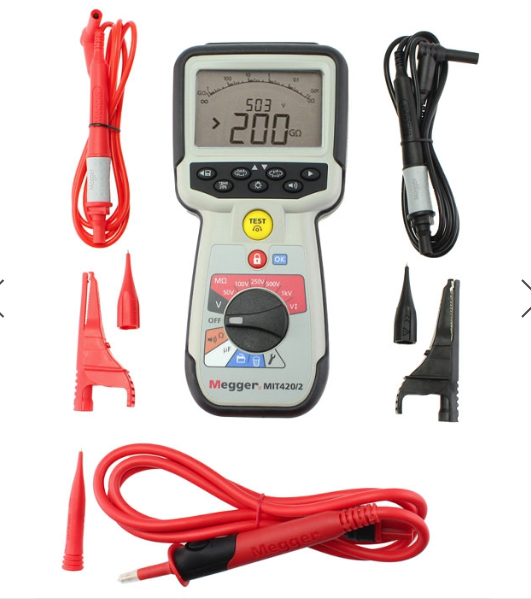

The Megger MIT420/2 insulation and continuity tester is a professional-grade, multifunctional device designed for accurately assessing the insulation status of cables, motors, and electrical equipment in industrial environments.
This tool provides variable test voltages from 50 to 1000 volts, allowing technicians to perform standard tests with high precision and ensure the insulation integrity of electrical systems.
The MIT420/2 device utilizes advanced technology to measure not only insulation resistance but also critical parameters such as the polarization index (PI) and dielectric absorption ratio (DAR), which are essential for detecting moisture or contamination in insulations.

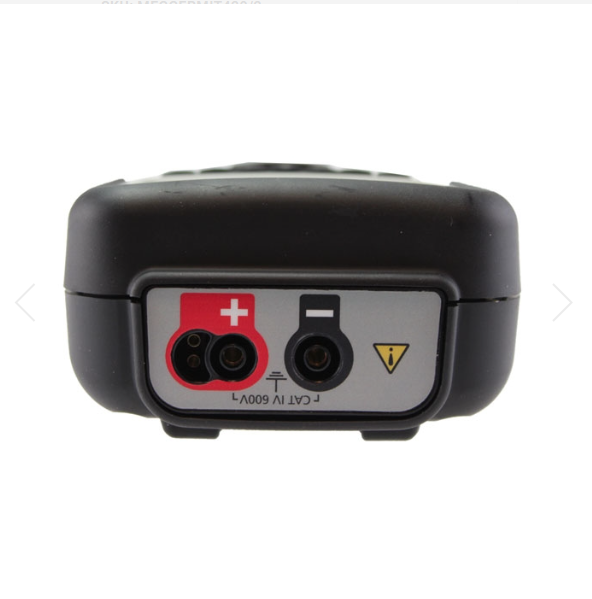

This model from the reputable global brand Megger adheres to stringent safety standards, featuring 600V Class IV (CAT IV) protection to guarantee operator safety against voltage spikes and electrical arcs.
Data storage and retrieval capabilities in this device simplify the documentation process of test results for maintenance (PM) and compliance with standards.
The ergonomic design and simple user interface make operating this device easy and quick even in harsh environmental conditions.
Key Features of Megger MIT420/2 Insulation & Continuity Tester

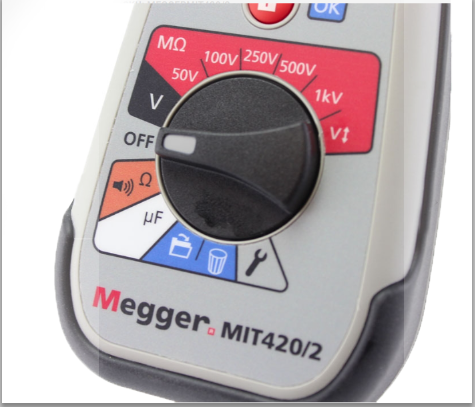

- Variable test voltages: 50, 100, 250, 500, and 1000 volts for flexibility in testing various equipment.
- Safety protection: Offers 600V Class IV (CAT IV) rating for maximum safety in distribution networks.
- Advanced calculations: Ability to automatically compute polarization index (PI) and dielectric absorption ratio (DAR) for insulation condition analysis.
- Continuity testing: High-precision continuity tests for checking grounding and conductor connections.
- Data storage: Equipped with internal memory for storing and retrieving test results for documentation and reporting.
- Durable design: Sturdy housing resistant to shocks and harsh industrial environmental conditions.
Technical Specifications
| Feature | Value |
|---|---|
| Model | MIT420/2 |
| Insulation test voltages | 50V, 100V, 250V, 500V, 1000V |
| Safety protection rating | 600V CAT IV |
| PI and DAR calculation capability | Yes |
| Continuity testing | Available |
| Storage capacity | Ability to store and retrieve results |
| Display type | High readability digital |
| Main application | Insulation and continuity testing of industrial equipment |
Frequently Asked Questions
Is the Megger MIT420/2 insulation and continuity tester suitable for testing low-voltage cables?
Yes, this device is highly suitable and safe for testing the insulation and continuity of low-voltage cables and related equipment in electrical distribution networks due to its variable test voltages and 600V Class IV protection rating.
What is the difference between polarization index (PI) and dielectric absorption ratio (DAR), and why are they important?
Polarization index (PI) and dielectric absorption ratio (DAR) are parameters used to determine insulation quality and the presence of moisture or contamination. PI is generally applied for larger insulations, while DAR is used for smaller ones, both contributing to a more accurate assessment of insulation status compared to simple resistance measurements.
Does this device have the capability to store test results?
Yes, the MIT420/2 device has the capability to store and retrieve test results, allowing users to document data for maintenance, repair, and compliance with safety standards.
Conclusion
The Megger MIT420/2 insulation and continuity tester, combining high accuracy, exceptional safety, and advanced analytical capabilities, is an essential tool for electrical engineers and technicians in various industries.
With its variable voltage options and capability to calculate PI and DAR, this device helps users accurately assess the insulation state of equipment and ensure the safe and stable operation of electrical systems.
Choosing this model due to CAT IV safety standards and documentation capabilities makes it a superior option for industrial projects and preventive maintenance.
