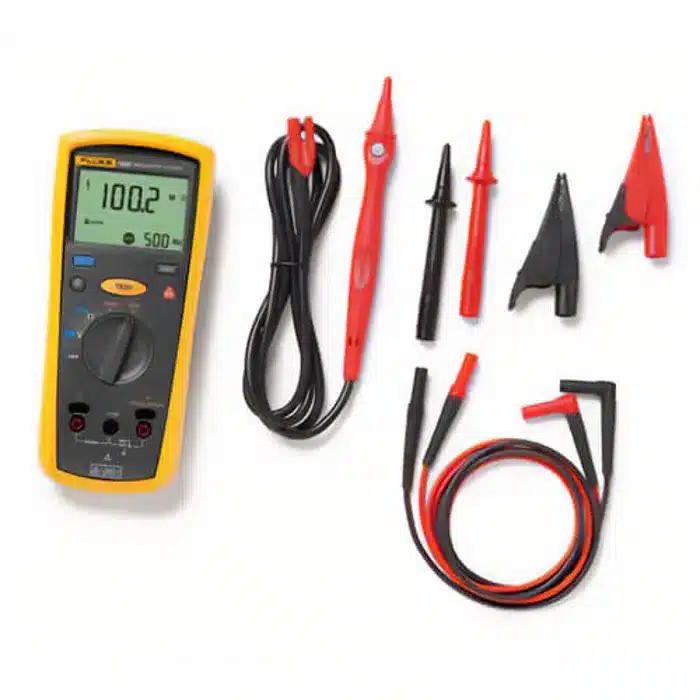

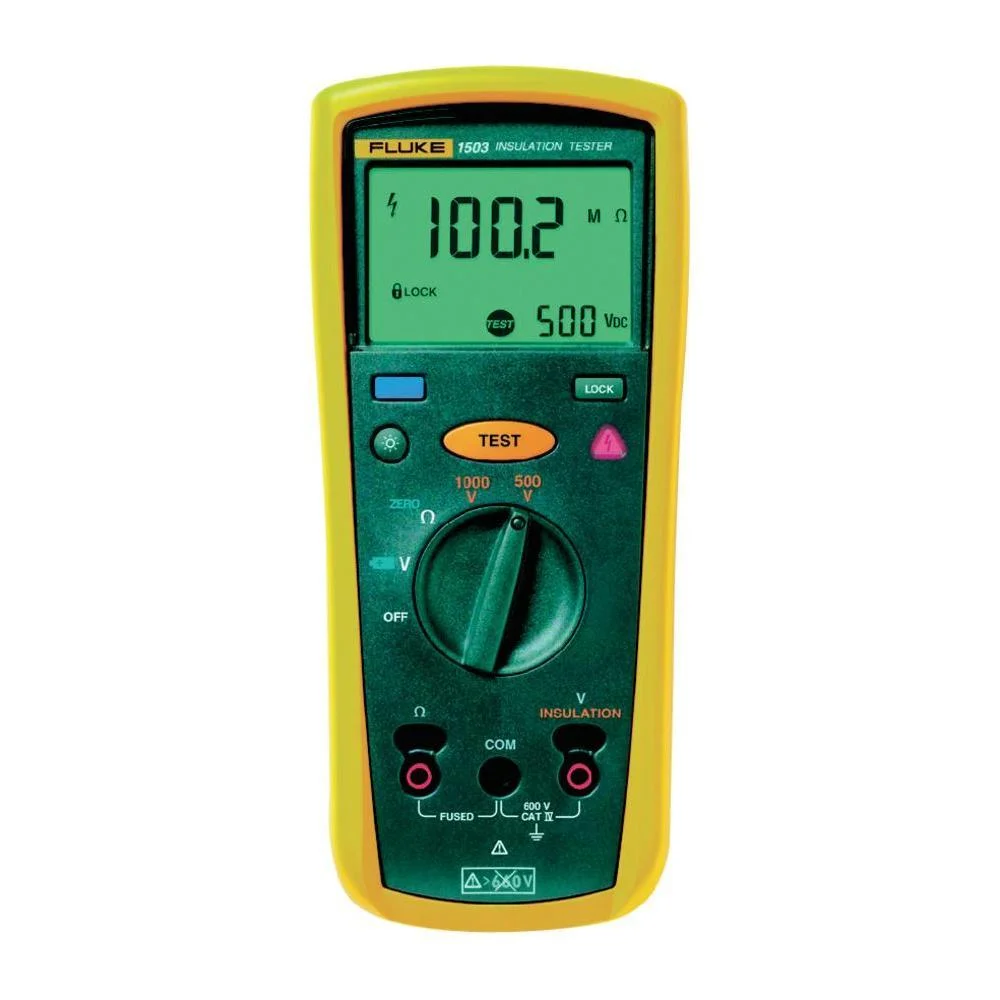

The Fluke model 1503 Insulation Resistance Tester is a professional tool for assessing the insulation condition of cables, motors, and electrical equipment. This device can accurately measure insulation resistance up to 2000 MΩ.
This model features two selectable test voltage levels (500V and 1000V), providing the necessary versatility and adaptability for various industrial and repair applications. Its compact and rugged design makes it easy to use in tough industrial environments.
Additionally, the Fluke 1503 includes a continuity test feature with an audible alarm, which is very useful for quickly checking connections.
🔹 Key Features of Fluke Model 1503
-
Insulation resistance testing up to 2000 MΩ
-
Selectable test voltages: 500V and 1000V
-
Continuity testing capability with audible alarm
-
Compact design and resistant to industrial conditions
-
Large and readable digital display
-
Automatic shutdown for battery savings
🔹 Technical Specifications of Fluke Model 1503
| Feature | Value |
|---|---|
| Insulation Resistance Range | 0.1 MΩ to 2000 MΩ |
| Test Voltage | 500V and 1000V |
| Continuity Testing | Yes (with audible alarm) |
| Display | Digital with high resolution |
| Safety | CAT III 600V |
| Weight | Light and portable |
❓ Frequently Asked Questions (FAQ)
What is the difference between the Fluke 1503 and the Fluke 1507?
The 1507 model has a wider test voltage range (50V to 1000V), whereas the 1503 only supports 500V and 1000V.
Can continuity testing be performed with the Fluke 1503?
Yes, this device has continuity testing with an audible alarm.
What is the maximum insulation resistance that can be measured?
Up to 2000 Megaohms.
🔚 Conclusion
If you need a simple, portable, and accurate insulation tester for general industrial applications, the Fluke 1503 is a cost-effective and reliable choice. This device, with insulation and continuity testing capabilities, meets the fundamental needs of electricians and technicians.
