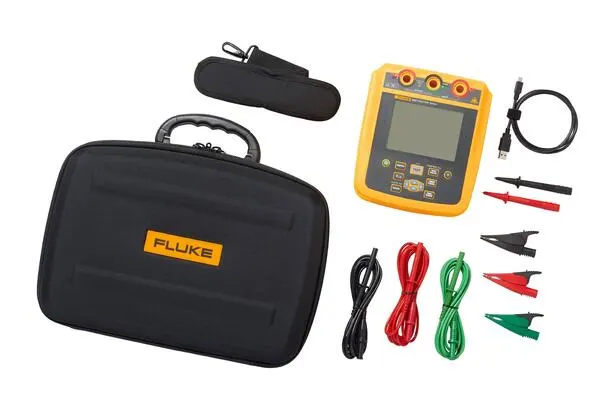

The Fluke 1537 insulation resistance tester is a new generation of professional-grade insulation testing equipment that offers not only high accuracy but also data storage and transfer capabilities for users.
This device provides adjustable test voltage ranging from 250 V to 2500 V and a measurement range of up to 500 GΩ, making it an ideal choice for safety inspections and preventive maintenance of industrial equipment.
One of the primary differences between this model and the Fluke 1535 is the support for data storage, USB interface, and information management software, which simplifies the analysis of results.

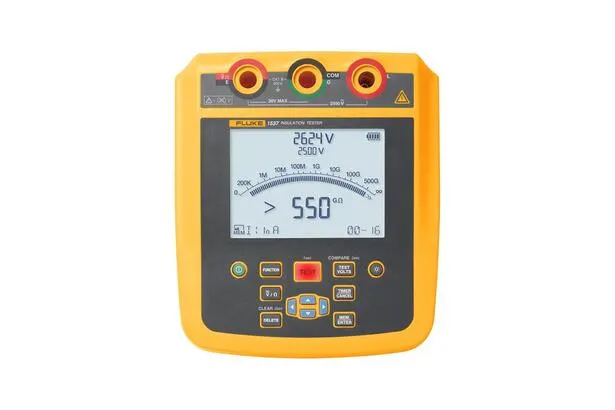

Its large display with a bar graph ensures excellent readability even in low-light environments, and its ergonomic and rugged design with an IP40 protection rating allows for reliable operation under harsh conditions.
This tester is constructed according to CAT IV 600 V standards and can perform over 1300 tests on a single full charge, making it an ideal option for electrical engineers, contractors, and industrial maintenance technicians.
🔹 Key Features of Fluke 1537
-
Selectable test voltage from 250 V to 2500 V
-
Insulation resistance measurement up to 500 GΩ
-
Data storage capability and transfer via USB
-
Automatic calculation of Polarization Index (PI) and Dielectric Absorption Ratio (DAR)
-
Large display with digital bar graph
-
High safety with CAT IV 600 V rating
-
Over 1300 tests on a single charge
-
Rugged and portable design with IP40
🔹 Technical Specifications of Fluke 1537
| Feature | Value |
|---|---|
| Test Voltage | 250 V / 500 V / 1000 V / 2500 V |
| Insulation Resistance Range | Up to 500 GΩ |
| Test Current | Maximum 5 mA |
| Safety Rating | CAT IV 600 V |
| Data Storage Capability | Yes (with USB interface) |
| Number of Tests per Charge | Over 1300 tests |
| Dimensions | 184 × 211 × 93 mm |
| Weight | Approximately 1.3 kg |
| Protection Rating | IP40 |
❓ Frequently Asked Questions (FAQ)
Q: What is the difference between the Fluke 1537 and Fluke 1535?
A: The model 1537 has data storage and transfer capabilities via USB, while the 1535 does not have this feature.
Q: Is the Fluke 1537 suitable for testing high-voltage equipment?
A: Yes, with a test voltage of up to 2500 V and CAT IV 600 V safety, it is highly suitable for industrial equipment testing.
Q: Does the device come with software?
A: Yes, the Fluke 1537 is equipped with data management software for analysis and reporting.
Q: How many tests can be performed on a single charge?
A: This device can perform over 1300 tests on a full charge.
🔚 Conclusion
The Fluke 1537 insulation resistance tester, with its data storage capabilities, high safety, and unparalleled accuracy, is one of the best choices for electrical engineers and industrial maintenance technicians. If you are looking for a professional, reliable, and durable tool for insulation assessment, the Fluke 1537 will be a smart choice.
