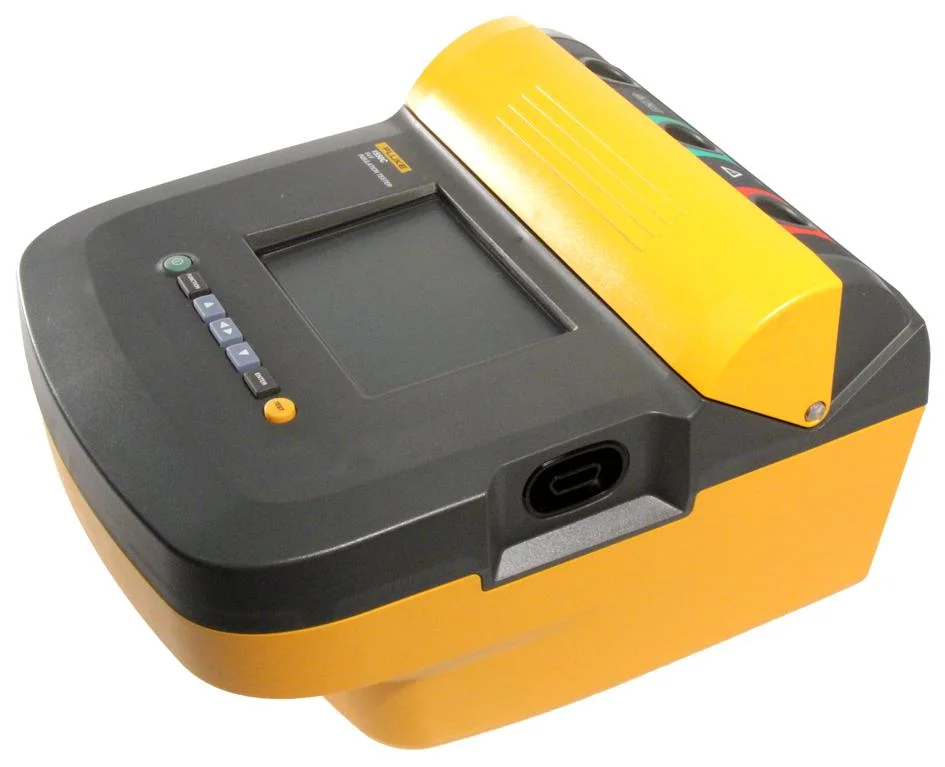

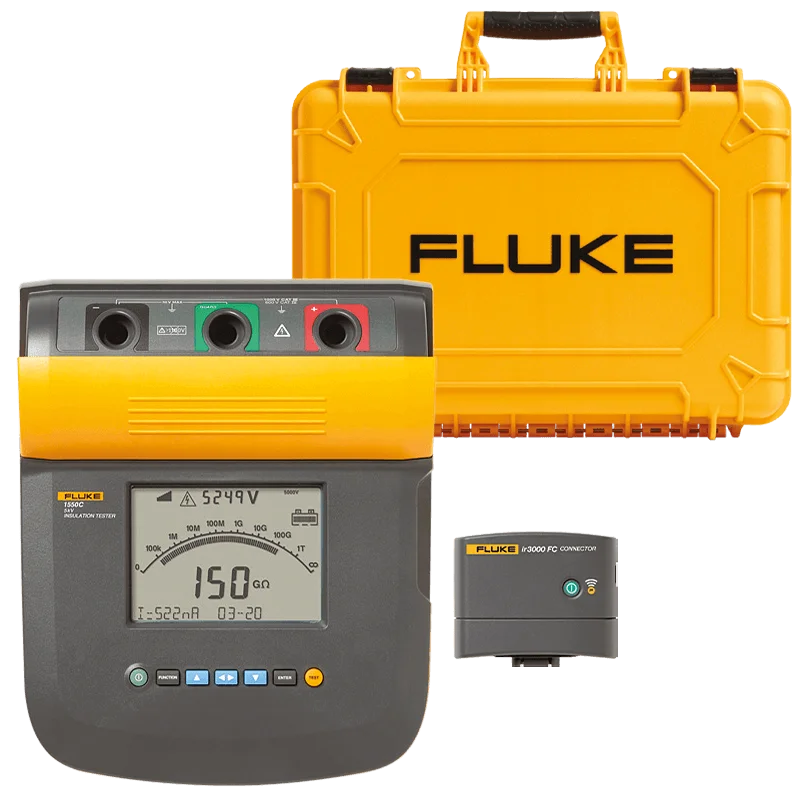

The Fluke model 1550C Insulation Resistance Tester is a powerful tool for testing the insulation of power cables, transformers, motors, and industrial equipment. This device offers adjustable test voltages ranging from 250V to 5000V in steps of 50V, allowing for insulation resistance measurements up to 1 teraohm (TΩ).
Advanced features such as Polarization Index (PI) and Dielectric Absorption Ratio (DAR) assist users in more accurately assessing the health of insulation. The model also includes internal memory for data storage and the capability to connect to a computer for reporting purposes.
The Fluke 1550C is designed for operation in harsh industrial environments and has an IP protection rating of IP40, showcasing high resistance to environmental conditions.
🔹 Key Features of Fluke Model 1550C
-
Insulation resistance measurement up to 1 TΩ
-
Adjustable test voltage from 250V to 5000V
-
Advanced features PI and DAR for insulation analysis
-
Internal memory for data storage and transfer to a computer
-
High safety: CAT IV 600V / CAT III 1000V
-
Rugged design with environmental protection IP40
-
Large digital display with backlight
🔹 Technical Specifications of Fluke Model 1550C
| Feature | Value |
|---|---|
| Insulation Resistance Range | Up to 1 TΩ |
| Test Voltage | 250V to 5000V (in 50V steps) |
| Special Features | PI, DAR, internal memory, reporting |
| Safety Rating | CAT IV 600V / CAT III 1000V |
| Environmental Protection | IP40 |
| Weight | 3.6 kg |
❓ Frequently Asked Questions (FAQ)
What is the difference between Fluke 1550C and Fluke 1555?
The 1555 model can test up to 10kV while the 1550C supports a maximum of 5kV.
Is the Fluke 1550C suitable for testing high-voltage cables?
Yes, this device is specifically designed for testing power cables and high-voltage equipment.
Is it possible to store data in the device?
Yes, it has internal memory, and data can be transferred to a computer.
🔚 Conclusion
Fluke 1550C is a high-voltage, advanced insulation tester for the electrical and energy industries. With testing capabilities up to 5kV and insulation resistance up to 1TΩ, this tool is an ideal choice for high-voltage electrical engineers and technicians.
