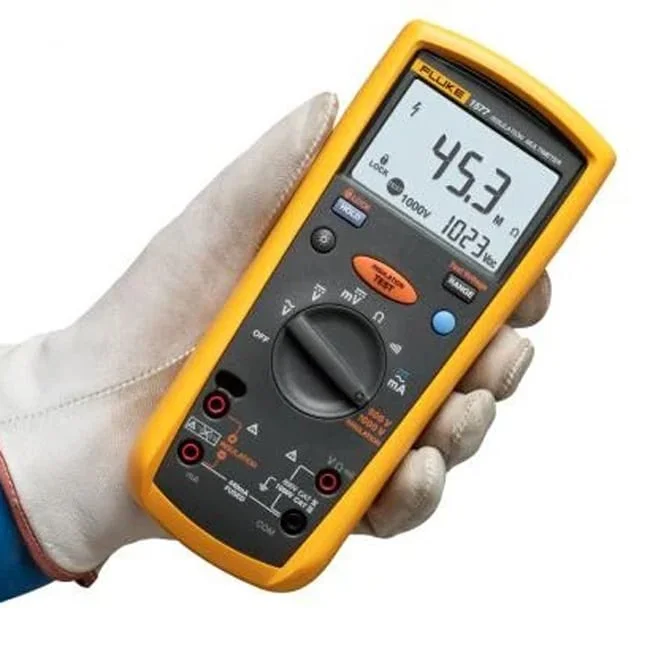

The Fluke model 1577 Insulation Multimeter combines two powerful tools in one device: an insulation tester and a digital multimeter. This device can measure insulation resistance up to 600 MΩ with test voltages of 500V and 1000V.
As a multimeter, the Fluke 1577 can measure AC/DC voltage up to 1000V, resistance, diode tests, and continuity. Its rugged design and large display make it easy to use in harsh industrial environments.
This model is particularly suitable for industrial electricians and maintenance technicians for motors, cables, and power equipment.
🔹 Key Features of Fluke Model 1577
-
Combination of insulation tester and digital multimeter in one device
-
Insulation resistance testing up to 600 MΩ
-
Test voltages: 500V and 1000V
-
AC/DC voltage measurement up to 1000V
-
Diode test, resistance, and continuity with audible alarm
-
Rugged design for industrial environments
-
High safety: CAT III 1000V / CAT IV 600V
🔹 Technical Specifications of Fluke Model 1577
| Feature | Value |
|---|---|
| Insulation Resistance | Up to 600 MΩ |
| Test Voltage | 500V, 1000V |
| AC/DC Voltage | Up to 1000V |
| Other Capabilities | Diode test, resistance, continuity |
| Safety | CAT III 1000V / CAT IV 600V |
| Display | Large and readable digital display |
❓ Frequently Asked Questions (FAQ)
What is the difference between Fluke 1577 and Fluke 1587?
The Fluke 1587 has more features such as PI, DAR, and wireless connection (in the FC version), while the 1577 is a simpler and more economical model.
Can the Fluke 1577 replace a multimeter and insulation tester?
Yes, this device combines both tools and eliminates the need for separate purchases.
What is the maximum insulation resistance that can be measured?
Up to 600 Megaohms.
🔚 Conclusion
If you are looking for a dual-purpose tool for insulation testing and general electrical measurements, the Fluke 1577 is an economical, rugged, and practical choice. This device is designed specifically for industrial electricians and maintenance technicians.
