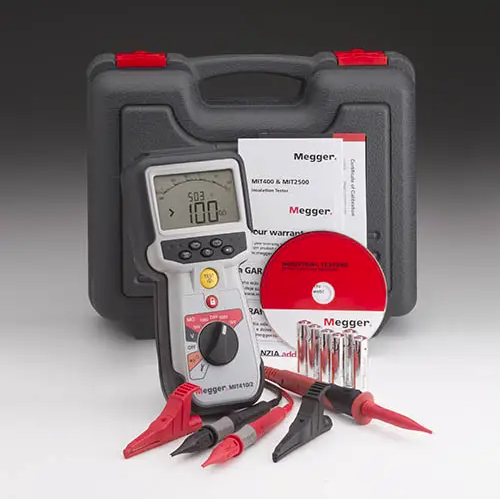

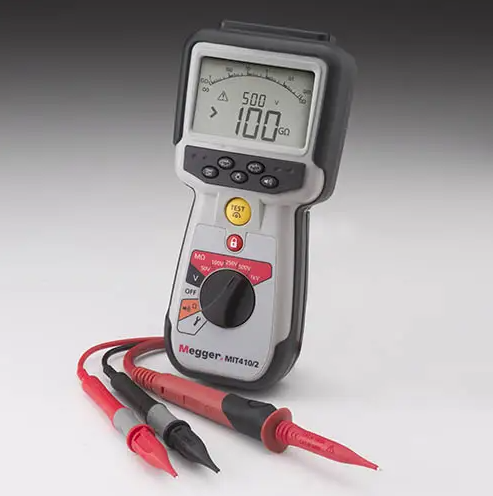

The Megger MIT410/2 insulation and continuity tester is a professional, portable testing device designed for accurately assessing the insulation condition of cables, motors, generators, and electrical equipment across various industries.
This device provides standard test voltages of 50, 100, 250, 500, and 1000 volts, covering a wide range of testing needs and allowing users to select the appropriate voltage for obtaining more accurate results regarding the insulation health of their equipment.
With a safety rating of 600 volts Class IV (CAT IV), this device offers a high level of assurance for technicians in hazardous environments.
One of the distinguishing features of the MIT410/2 is its ability to automatically calculate the insulation resistance index (PI) and the dielectric absorption ratio (DAR), which are critical for identifying moisture, contamination, or insulation degradation over time.
These capabilities aid engineers in not only evaluating the current insulation status but also assessing the aging process and overall insulation health.
With its ergonomic design, large user-friendly display, and advanced safety features, this device is an ideal choice for periodic inspections and troubleshooting in the oil, gas, electrical, and construction industries.
Key Features of the Megger MIT410/2 Insulation & Continuity Tester
- Provision of test voltages of 50, 100, 250, 500, and 1000 volts to comply with various standards
- Capability to measure the insulation resistance index (PI) and dielectric absorption ratio (DAR) for precise insulation analysis
- High safety with a rating of 600 volts Class IV (CAT IV)
- Portable and lightweight design for easy use in the field
- Large backlit display for better readability in low-light conditions
- Results storage capability for tracking and reporting
- Audible and visual alarm system for unsuccessful results
Technical Specifications
| Feature | Value |
|---|---|
| Test Voltages | 50, 100, 250, 500, 1000 volts |
| Insulation Resistance Range | 0.01 MΩ to 20 GΩ |
| Safety Rating | 600 volts Class IV (CAT IV) |
| PI and DAR Capability | Yes, automatic calculation |
| Display Type | LCD with backlight |
| Power Supply | Rechargeable batteries or AA batteries |
| Weight | Approximately 0.5 kg (without battery) |
Frequently Asked Questions
Is the Megger MIT410/2 insulation and continuity tester suitable for testing low voltage cables?
Yes, the MIT410/2 tester, with low test voltages like 50 and 100 volts, is suitable for testing low voltage cables and sensitive equipment to avoid damage to delicate insulation.
What is the difference between the insulation resistance index (PI) and the dielectric absorption ratio (DAR)?
The insulation resistance index (PI) is the ratio of insulation resistance measured over 10 minutes to the resistance measured over 1 minute and is used for detecting moisture or deep contamination. The dielectric absorption ratio (DAR) is the ratio of resistance measured over 60 seconds to the resistance measured over 15 seconds, used for quick evaluation of surface moisture in insulation.
Does this device have the capability to connect to a computer?
The MIT410/2 model typically lacks direct connectivity to a computer; however, test results can be manually recorded. Higher models in the MIT series may offer additional connectivity options.
Conclusion
The Megger MIT410/2 insulation and continuity tester, combining high accuracy, advanced analytical features such as PI and DAR, and exceptional safety, is an essential tool for any electrical engineer or industrial technician.
This device provides reliable results and precise analysis of insulation conditions, aiding in optimizing maintenance programs and preventing unexpected failures.
For industries that prioritize safety and reliability of electrical equipment, the MIT410/2 represents a smart investment.
