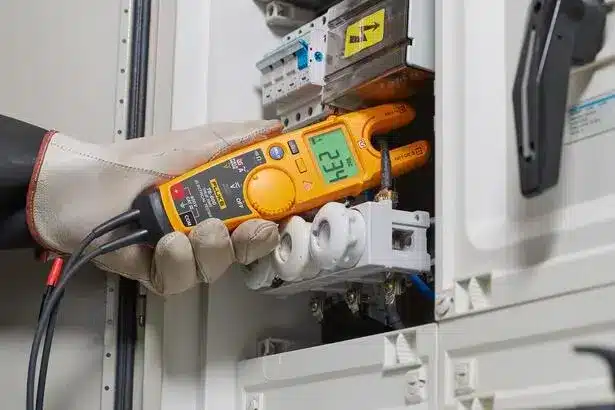

The Fluke model T6-600/EU is a reliable choice for electricians and industrial technicians. This device, leveraging the innovative FieldSense™ technology, enables you to measure voltage without direct contact with electrical wires.
With the open fork, simply place the wire inside the opening to display voltage and current values simultaneously on the large, backlit digital display.
This feature enhances safety, speed, and convenience in circuit testing, especially in distribution panels and junction boxes. Its rugged, compact design and CAT III 600V safety rating make this device an ideal tool for harsh work environments.
🔹 Key Features of Fluke T6-600/EU
-
Measures voltage and current up to 600 Volts AC/DC
-
FieldSense™ technology – voltage measurement without test probes
-
Simultaneous display of voltage and current on the screen
-
Frequency measurement range of 45 to 66 Hertz
-
Large backlit digital display
-
High safety: CAT III 600V
-
Compact, lightweight, and rugged design
🔹 Technical Specifications of Fluke Model T6-600/EU
| Feature | Value |
|---|---|
| Test Voltage | 0 to 600 Volts AC/DC |
| Current | Up to 200 Amperes (via open fork) |
| Frequency | 45 – 66 Hertz |
| Fork Opening | 17.8 mm (suitable for wires up to 4/0) |
| Display | LCD with backlight |
| Safety | CAT III 600V |
| Dimensions | 43 × 259 × 61 mm |
| Weight | Approximately 350 grams |
❓ Frequently Asked Questions (FAQ)
What is the difference between Fluke T6-600 and Fluke T6-1000?
The T6-600 supports up to 600 volts, whereas the T6-1000 can test up to 1000 volts and has a CAT IV safety rating.
Can voltage and current be read simultaneously?
Yes, with FieldSense™ technology, voltage and current are displayed simultaneously on the screen.
Is it safe to use this device without probes?
Yes, this technology increases safety and reduces the risk of direct contact with electrical wires.
🔚 Conclusion
If you are looking for a quick, safe, and practical tester for measuring voltage and current up to 600 volts, the Fluke T6-600/EU is the best choice. The FieldSense™ technology enhances your speed of work and minimizes risks.
