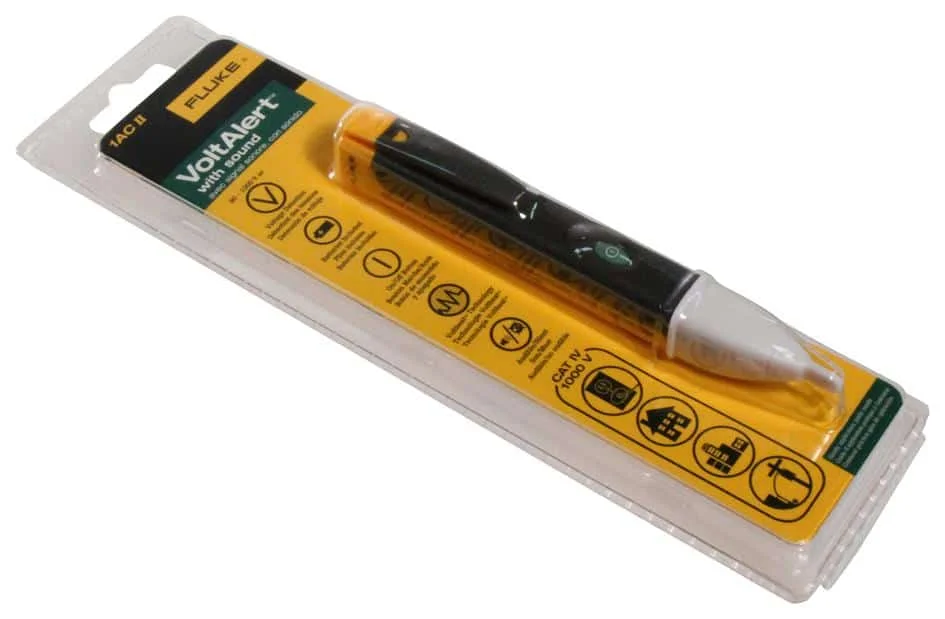

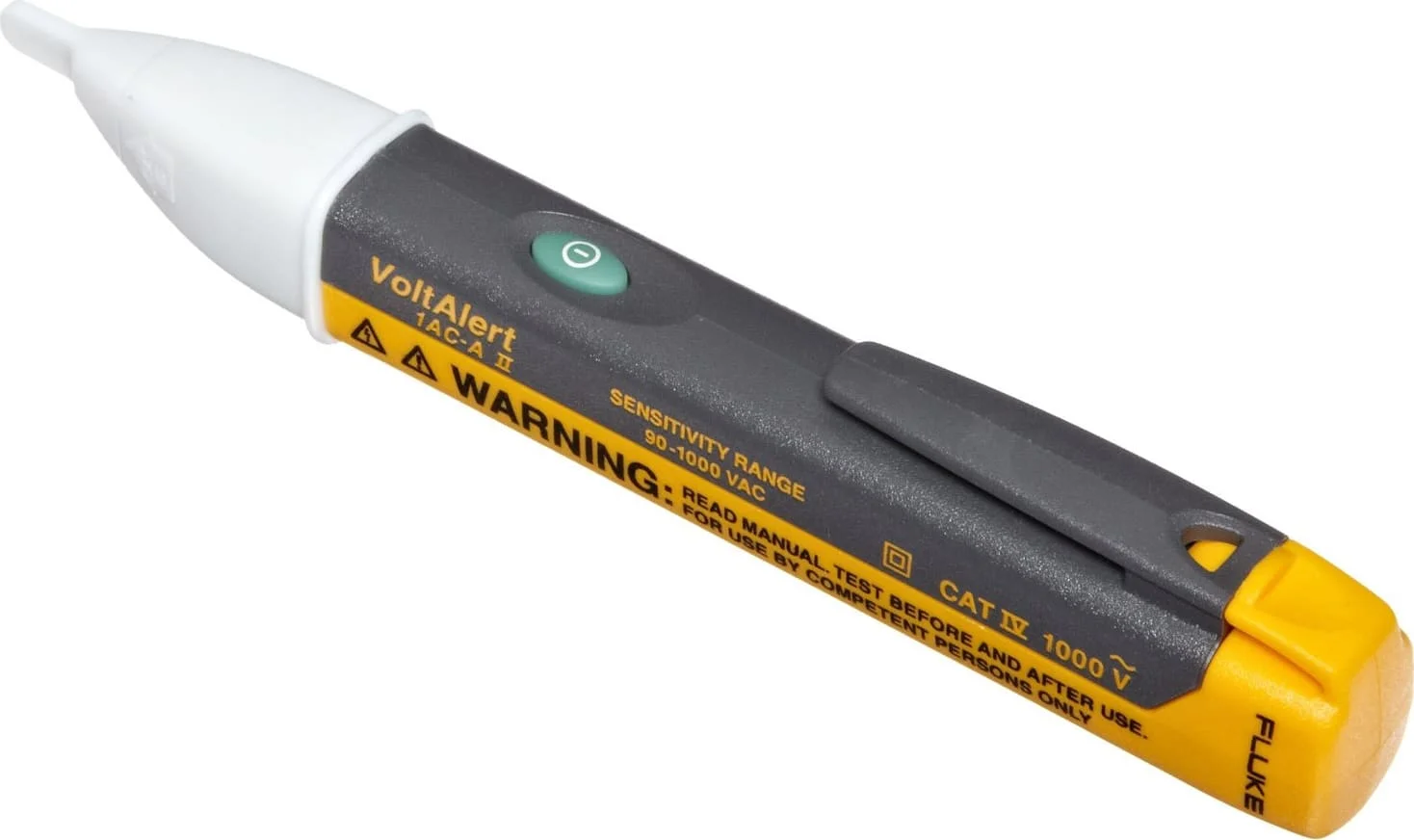

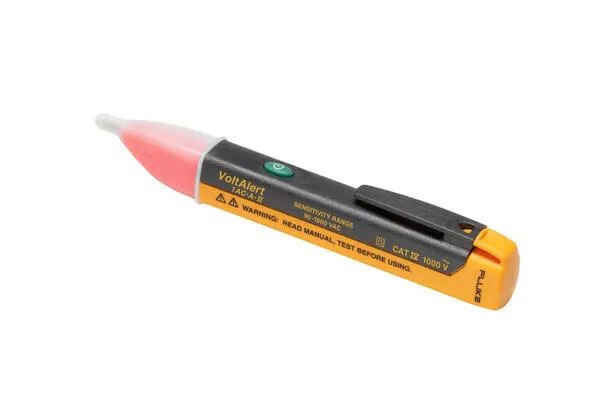

The non-contact Fluke model 1AC-A1-II VoltAlert is a reliable and simple tool for quickly detecting the presence of AC voltage. This device lights up and provides audio and visual warnings when voltage is present, simply by bringing the tester tip close to a wire, outlet, or electrical terminal.
This voltage tester is particularly suitable for electricians, repair technicians, and even home users. Its lightweight and pocket-sized design makes it very easy to carry and use.
The Fluke 1AC-A1-II has a safety rating of CAT IV 1000V / CAT III 1000V, ensuring maximum safety in electrical testing.
🔹 Key Features of Fluke Model 1AC-A1-II
-
Non-contact detection of AC voltage in the range of 200V – 1000V
-
VoltAlert™ technology with visual (red LED) and audible alerts
-
Automatic shutdown to save battery
-
Pocket-sized, lightweight, and portable design
-
High safety: CAT IV 1000V / CAT III 1000V
-
Easy to use, suitable for professionals and home users
🔹 Technical Specifications of Fluke Model 1AC-A1-II
| Feature | Value |
|---|---|
| Detectable Voltage Range | 200V – 1000V AC |
| Alert | Red LED + Buzzer Sound |
| Power Supply | 2× AAA Batteries |
| Safety | CAT IV 1000V / CAT III 1000V |
| Dimensions | 148 × 17 × 26 mm |
| Weight | Approximately 40 grams |
❓ Frequently Asked Questions (FAQ)
What is the difference between Fluke 1AC-A1-II and Fluke LVD2?
The LVD2 model has a range of 90-600V and features a dual-color LED + flashlight, whereas the 1AC-A1-II detects voltages from 200-1000V and has an audio alert as well.
Is the Fluke 1AC-A1-II suitable for industrial use?
Yes, with CAT IV 1000V safety, this device is very safe for industrial and commercial environments.
Does this device require direct contact?
No, it is completely non-contact and only needs to be brought close to the wire or terminal.
🔚 Conclusion
The Fluke 1AC-A1-II VoltAlert™ is a simple and extremely safe non-contact tester that quickly identifies the presence of AC voltage. This lightweight, pocket-sized device is suitable for everyday use by professional electricians and home users.
