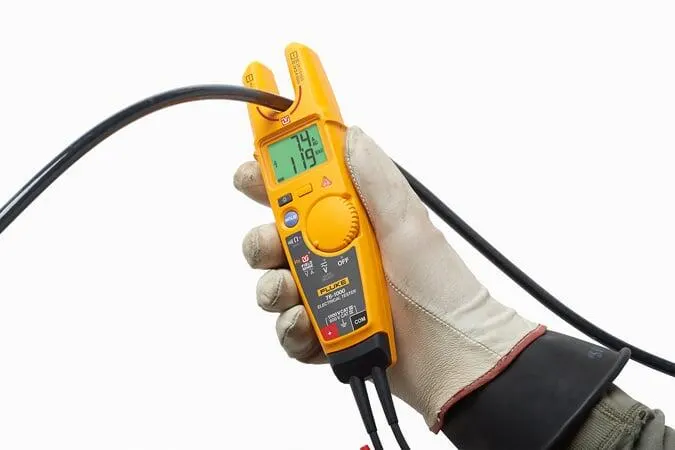

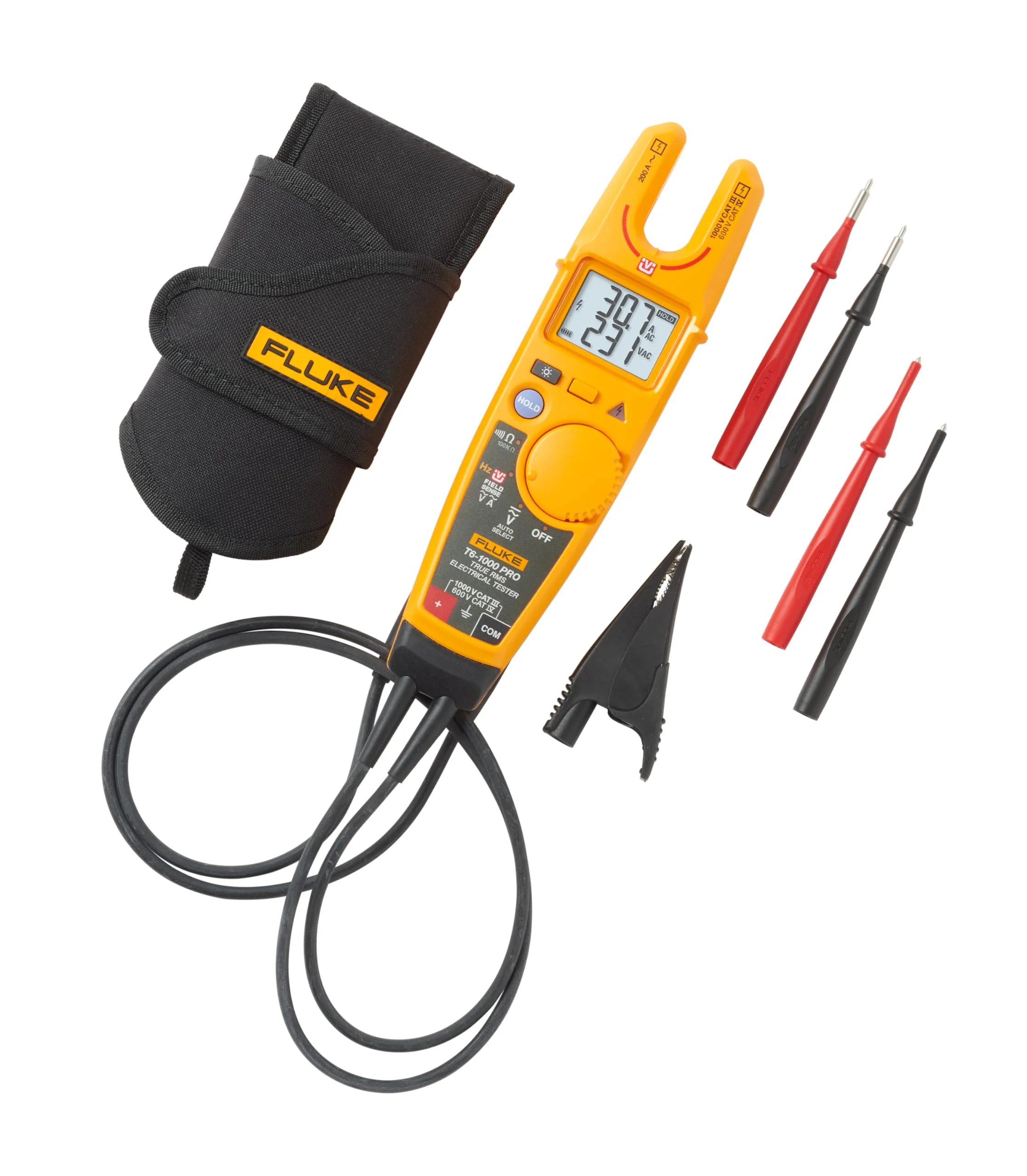

The Fluke T6-1000 PRO electrical tester is the latest and most professional model in the T6 series. This device can quickly and safely measure AC/DC voltages up to 1000V and currents up to 200 Amps using FieldSense™ technology without the need for direct contact of the probe with the wire.
The PRO version has more capabilities than the standard T6-1000 model, including:
Higher resolution dual-line display (simultaneous display of multiple parameters)
Hold and AutoHold functions for value recording
Increased accuracy in voltage and current measurements
More robust design for industrial environments
This device is designed with safety ratings of CAT IV 600V / CAT III 1000V and is an ideal choice for technicians and electrical engineers working in hazardous environments.
🔹 Key Features of Fluke T6-1000 PRO
Voltage measurement up to 1000 volts AC/DC
Current measurement up to 200 Amps via open fork
FieldSense™ technology for probe-less testing
Dual-line digital display with backlight
Hold and AutoHold functionality
Frequency test range from 45 to 66 Hertz
High safety: CAT IV 600V / CAT III 1000V
Robust design for industrial working conditions
🔹 Technical Specifications of Fluke T6-1000 PRO
| Feature | Value |
|---|---|
| Test Voltage | 0 to 1000 volts AC/DC |
| Current | Up to 200 Amps (open fork) |
| Frequency | 45 - 66 Hertz |
| Fork Size | 17.8 mm |
| Display | Dual-line LCD with backlight |
| Special Features | FieldSense™, Hold, AutoHold |
| Safety | CAT IV 600V / CAT III 1000V |
| Weight | Approximately 350 grams |
❓ Frequently Asked Questions (FAQ)
What is the difference between Fluke T6-1000 PRO and Fluke T6-1000?
The PRO model features a higher resolution dual-line display, AutoHold capability, and increased measurement accuracy.
Is this device suitable for hazardous industrial environments?
Yes, it is designed with a safety rating of CAT IV 600V and is ideal for use in industrial environments.
Can voltage and current be viewed simultaneously?
Yes, the dual-line display allows for simultaneous viewing of voltage, current, and frequency.
🔚 Conclusion
Fluke T6-1000 PRO is the most comprehensive and safest tester in the T6 series, designed for professional electricians. With its probe-less measurement capability, advanced display, and high safety standards, this device is the best choice for working in industrial electrical networks.
