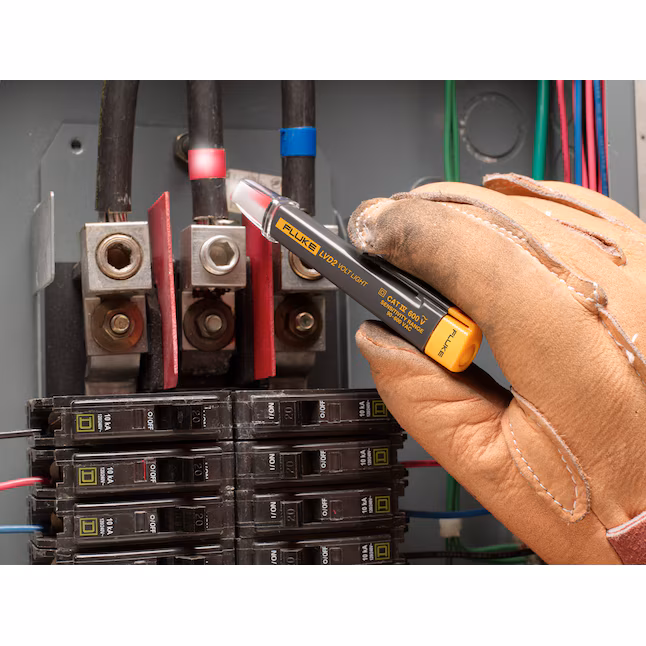

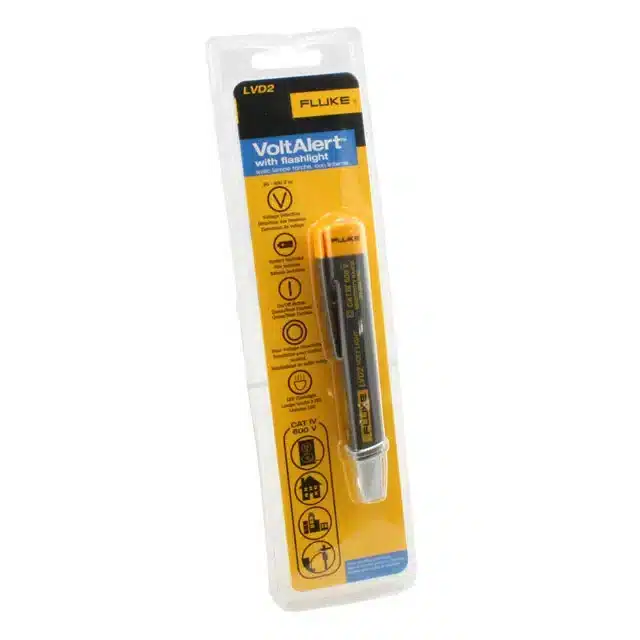

The Fluke LVD2 Non-Contact Voltage Detector is an ideal tool for electricians and technicians who need a quick and safe means of detecting voltage presence.
This device detects voltage from a close range without making direct contact with wires or circuits. Its built-in LED light illuminates in two colors:
-
Blue: Close to the voltage source
-
Red: Voltage present in the range of 90V – 600V
This feature allows the user to confidently determine the presence of voltage.
The Fluke LVD2 is lightweight, pocket-sized, and comes with an LED flashlight to illuminate dark environments. It also has a safety rating of CAT IV 600V, making it perfectly safe for use in both home and industrial environments.
🔹 Key Features of Fluke LVD2
-
Non-contact AC voltage testing range of 90V – 600V
-
Dual-color LED indicator to show status (Blue/Red)
-
Built-in LED flashlight for better visibility in dark environments
-
Lightweight, pocket-sized, and very practical design
-
High safety: CAT IV 600V
-
Automatic shut-off to extend battery life
🔹 Technical Specifications of Fluke LVD2
| Feature | Value |
|---|---|
| Detectable Voltage Range | 90V – 600V AC |
| Indicator Light | Blue (near voltage) / Red (voltage present) |
| Power Source | 2× AAA Batteries |
| Safety | CAT IV 600V |
| Dimensions | 148 × 17.8 × 26.9 mm |
| Weight | Approximately 38 grams |
❓ Frequently Asked Questions (FAQ)
Can Fluke LVD2 replace a multimeter?
No, this device is designed only to detect the presence of voltage and does not display precise values.
What is the difference between Fluke LVD1 and LVD2?
The LVD2 model features a dual-color LED and a built-in flashlight, whereas the LVD1 is simpler.
Is it safe to use the LVD2?
Yes, with a safety rating of CAT IV 600V, this device is safe for industrial and home environments.
🔚 Conclusion
The Fluke LVD2 is a simple and reliable non-contact voltage tester that, with its dual LED light and lightweight design, is an essential tool for any electrician. This device significantly enhances both speed and safety in voltage detection.
