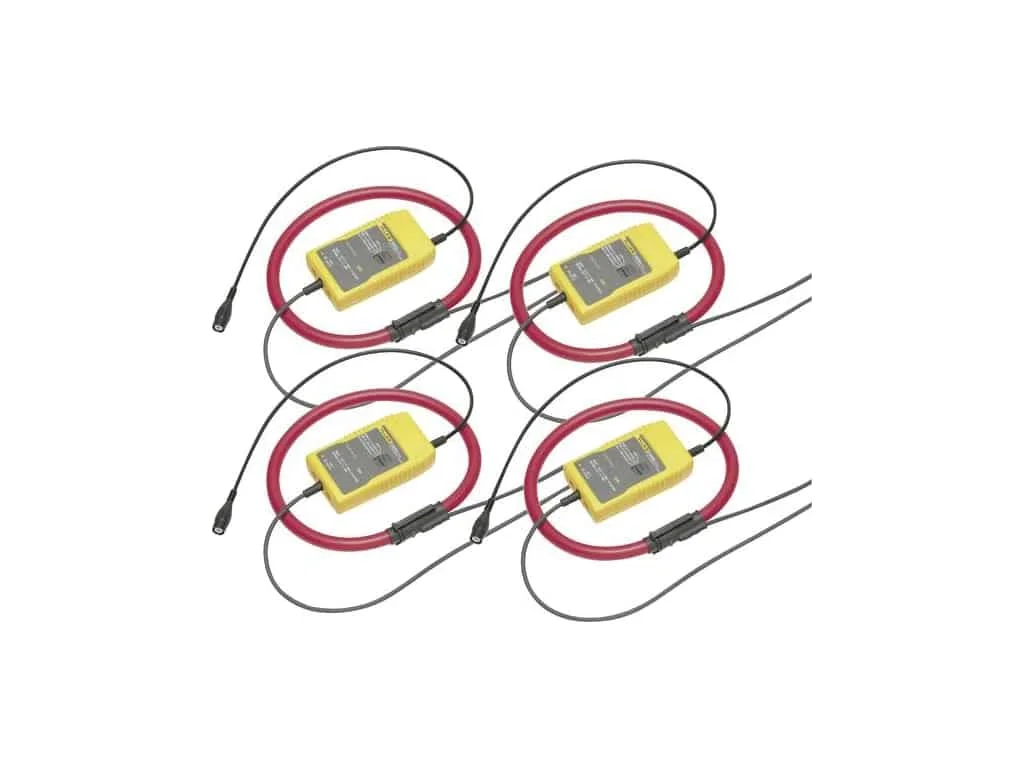

The Fluke i3000 Flex-4PK is an advanced tool designed for measuring AC currents using Rogowski principles.
This device offers three measurement ranges (30 A, 300 A, and 3000 A) and selectable output sensitivity (1, 10, or 100 millivolts per Amp), providing high flexibility in measurements.
Its lightweight and flexible design allows for quick and easy installation in hard-to-reach locations.
This current clamp is suitable for use with oscilloscopes, data recorders, or data loggers, and can be utilized in precise measurements and long-term monitoring.
🔹 Key Features of Fluke i3000 Flex-4PK
-
Measures AC currents up to 3000 Amps
-
Three measurement ranges: 30 A, 300 A, and 3000 A
-
Selectable output sensitivity: 1, 10, or 100 millivolts per Amp
-
Lightweight and flexible design for installation in hard-to-reach locations
-
Suitable for use with oscilloscopes, data recorders, or data loggers
-
Safety rating of CAT III 600 V
-
Maximum measurable conductor diameter: 178 mm
🔹 Technical Specifications of Fluke i3000 Flex-4PK
| Feature | Value |
|---|---|
| Maximum measurable current | 3000 A AC rms |
| Measurement ranges | 30 A, 300 A, 3000 A |
| Output sensitivity | 1, 10, or 100 millivolts per Amp |
| Measurement accuracy | ±1% of range (at 25 degrees Celsius) |
| Measurable frequency | 10 Hz to 50 kHz |
| Phase error | < ±1 degree (at 45 Hz to 65 Hz) |
| Noise | 8 millivolts AC rms (for 30 A) |
| Safety rating | CAT III 600 V |
| Maximum measurable conductor diameter | 178 mm |
| Cable length (head to electronics) | 2 meters |
| Output connection type | Safe BNC connector with 4 mm adapter |
❓ Frequently Asked Questions (FAQ)
Q: Is the Fluke i3000 Flex-4PK suitable for measuring DC currents?
A: No, this device is only designed for measuring AC currents.
Q: How is the output sensitivity selected?
A: The output sensitivity can be manually set to 1, 10, or 100 millivolts per Amp to accommodate various devices.
Q: Can this current clamp be used for measurements in confined spaces?
A: Yes, its lightweight and flexible design allows for installation in hard-to-reach areas.
Q: Is this device safe for use in industrial environments?
A: Yes, with a safety rating of CAT III 600 V, this device is suitable for industrial applications.
🔚 Conclusion
The Fluke i3000 Flex-4PK current clamp, with its flexible design, high accuracy, and varied capabilities, is an ideal tool for measuring AC currents in hard-to-reach locations without needing to disrupt circuits.
If you are looking for a professional tool for measuring currents in complex systems, this device is an excellent choice.
