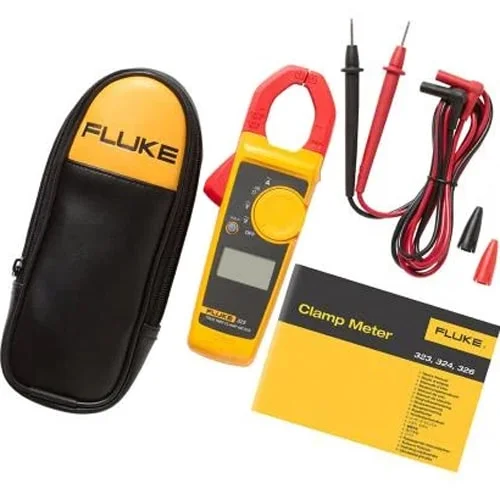

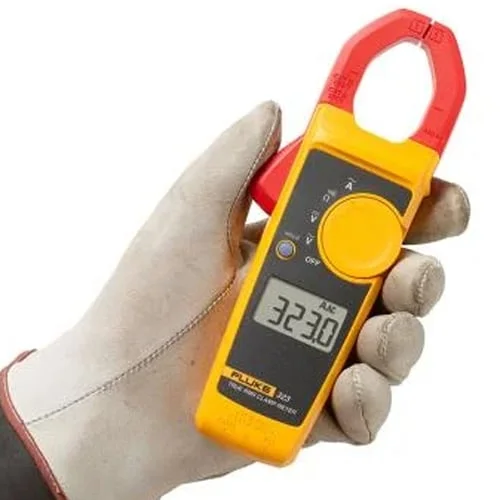

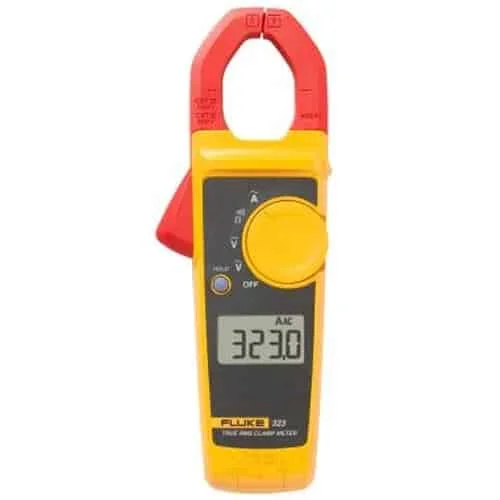

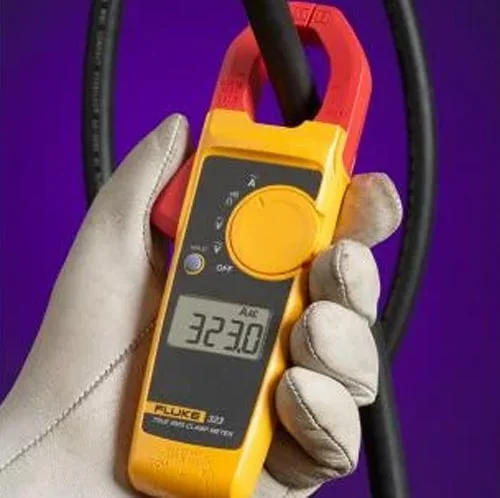

The Fluke 323 is a lightweight, accurate, and powerful clamp meter designed for use in general and industrial applications.
This device features True-RMS, allowing for high-precision measurements of current and voltage even in environments with non-linear loads.
With the capability to measure AC current up to 400 amps and voltage up to 600 volts, the Fluke 323 is a suitable choice for everyday electrical measurements.
Its compact and ergonomic design allows for easy use in tight spaces like electrical panels.
Additionally, it has a safety rating of CAT IV 300V / CAT III 600V for enhanced safety.
🔹 Key Features of Fluke Model 323
-
AC Current Measurement up to 400 Amps
-
True-RMS for accurate measurements in non-sinusoidal loads
-
AC and DC Voltage Measurement up to 600 Volts
-
Resistance Measurement up to 4 kΩ
-
Audible Continuity Testing
-
Compact design for better accessibility
-
Safety: CAT IV 300V / CAT III 600V
🔹 Technical Specifications of Fluke Model 323
| Feature | Value |
|---|---|
| AC Current | 0 to 400 Amps |
| AC/DC Voltage | 0 to 600 Volts |
| Resistance | Up to 4 kΩ |
| True-RMS | Yes |
| Audible Continuity | Yes |
| Clamp Jaw | Up to 30 mm diameter |
| Safety Rating | CAT IV 300V / CAT III 600V |
| Weight | Approximately 265 grams |
❓ Frequently Asked Questions (FAQ)
Does the Fluke 323 measure DC current?
No, this model only measures AC current.
Does it have diode or frequency testing capabilities?
No, the Fluke 323 lacks diode testing and frequency measurement. The Fluke 325 is more suitable for these features.
Does True-RMS really make a difference?
Yes, in environments with non-sinusoidal or noisy signals, True-RMS provides more accurate results compared to standard models.
What models are similar to the Fluke 323?
Fluke 302+ is recommended for lower current, and Fluke 325 for more features.
🔚 Conclusion for Fluke 323
The Fluke 323, with a focus on accuracy, safety, and ease of use, is an ideal choice for electricians, technicians, and installers of electrical systems.
If you need a professional True-RMS clamp meter at an affordable price with high performance, the Fluke 323 is a reliable choice.
