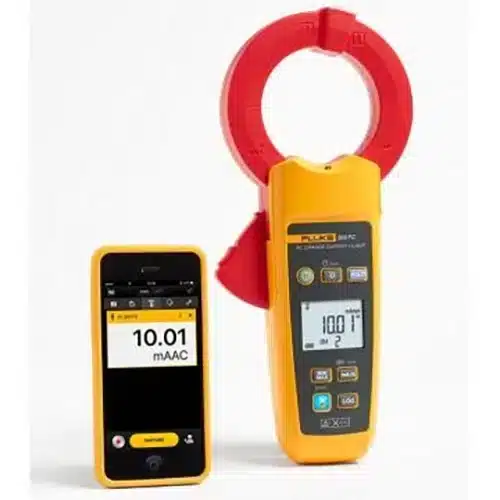

Fluke Model 369 FC True-RMS Leakage Current Clamp Meter is a specialized tool for detecting very low leakage currents in industrial, commercial, and building equipment.
This device, with its large shielded jaw, provides precise measurements even on thicker cables.
This model features True-RMS technology that ensures measurement accuracy in noisy or non-sinusoidal signals.

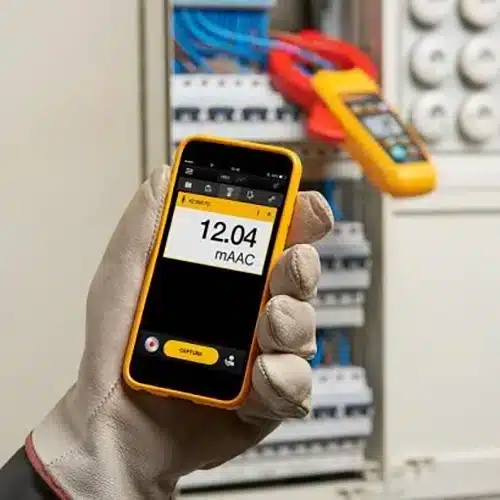

Additionally, with the wireless connectivity to Fluke Connect®, you can view and store information live on your mobile or computer.
🔹 Key Features of Fluke Model 369 FC
-
Measures AC leakage current up to 60 Amps with microamp accuracy
-
Large jaw with a diameter of 61mm and shielded design to eliminate magnetic noise
-
True-RMS for high accuracy in measuring nonlinear signals
-
Connectivity to Fluke Connect for data transfer
-
Suitable for checking leakage equipment in electrical panels, UPS systems, motors, and more...
-
Has a safety rating of CAT III 600V
🔹 Technical Specifications
| Feature | Value |
|---|---|
| Type of Current | AC (Leakage) |
| Measurement Range | 1 µA to 60 A |
| Measurement Accuracy | ±1% + 5 digits |
| True-RMS | Yes |
| Jaw Diameter | 61mm |
| Wireless Connection | Yes (Fluke Connect®) |
| Backlit Display | Yes |
| Safety | CAT III 600V |
❓ Frequently Asked Questions (FAQ)
Is the Fluke Model 369 FC suitable for large cables?
Yes, its large 61mm jaw is suitable for measurements on thick industrial cables.
Is it possible to store data?
Yes, through Fluke Connect, you can store, view, and share data.
What is the difference between Fluke 368 FC and Fluke 369 FC?
The Fluke 369 FC has a larger jaw (61mm instead of 40mm) which is more suitable for larger diameter cables.
🔚 Conclusion
Fluke 369 FC is an ideal choice for technicians working with large equipment and industrial systems. The large jaw, high accuracy, and wireless connectivity make it a powerful and practical tool for preventive maintenance and fast leakage detection.
