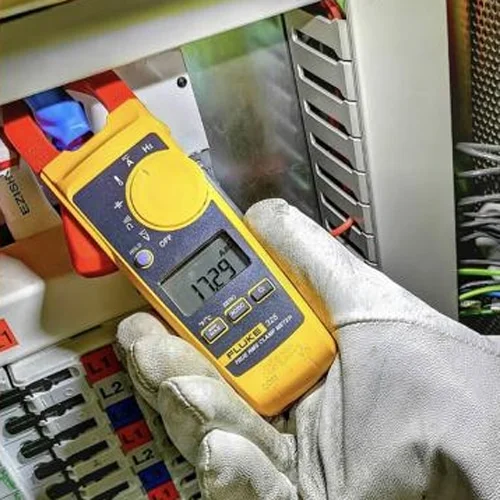

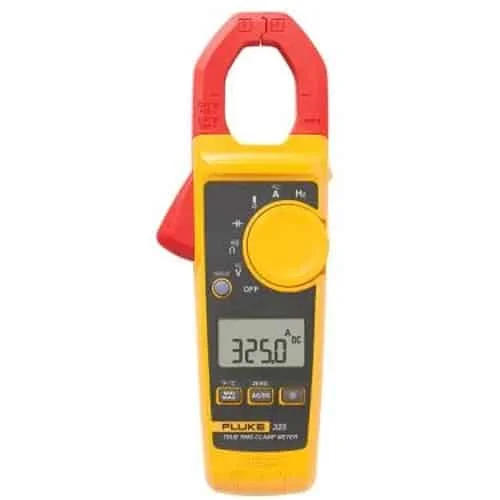

Fluke 325 Clamp Meter is one of the best-selling and most popular models of Fluke among clamp meters, offering capabilities beyond just current measurement.
This device can measure AC/DC current up to 400 amps, voltage up to 600 volts, resistance up to 40 kilo ohms, frequency up to 500 hertz, and even temperature (using a thermocouple probe).
The presence of True-RMS ensures very high accuracy when measuring non-standard and noisy signals.
The digital display with backlight, compact design, and CAT III and CAT IV safety ratings are other features of this device.
🔹 Key Features of Fluke 325
-
AC/DC current measurement up to 400 amps
-
AC/DC voltage measurement up to 600 volts
-
Temperature measurement with thermocouple probe
-
True-RMS for greater accuracy
-
Resistance measurement up to 40 kΩ and continuity testing
-
Frequency measurement up to 500Hz
-
Display backlight
-
Safety ratings: CAT III 600V / CAT IV 300V
🔹 Technical Specifications of Fluke 325
| Feature | Value |
|---|---|
| AC/DC Current | Up to 400A |
| AC/DC Voltage | Up to 600V |
| Temperature | -10 to +400 degrees Celsius |
| Resistance | Up to 40kΩ |
| Frequency | Up to 500Hz |
| True-RMS | Yes |
| CAT Rating | CAT III 600V / CAT IV 300V |
| Continuity Test | Yes |
| Backlight | Yes |
| Weight | Approximately 283 grams |
❓ Frequently Asked Questions (FAQ)
Does the Fluke 325 measure DC current?
Yes, unlike models 323 and 324, the Fluke 325 is capable of measuring DC current up to 400A.
Does this device also measure temperature?
Yes, with the thermocouple probe, it measures ambient or equipment temperature up to 400 degrees Celsius.
What types of applications is it suitable for?
This device is suitable for industrial electrical technicians, electronic equipment repairs, facilities, and HVAC.
What models of Fluke are compared with this device?
The Fluke 325 offers more features than models 323 and 324 and is a more complete option for professional use.
🔚 Conclusion
If you are looking for a highly accurate clamp meter with multiple functions and suitable for industrial use, Fluke 325 will be an ideal choice. From measuring DC current to temperature, this device is a versatile and reliable companion for electrical engineers and technicians.
