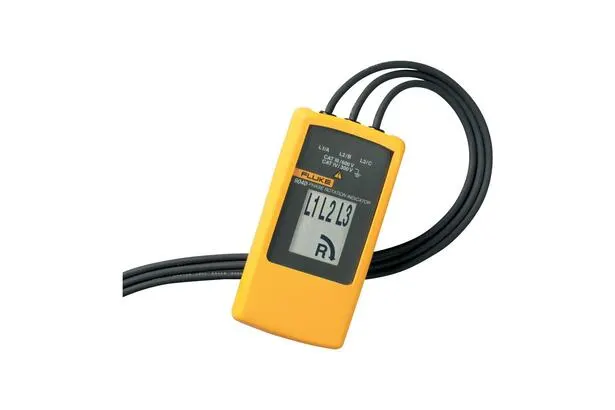

The Fluke 9040 is an accurate and robust tool for measuring and displaying phase rotation direction in three-phase AC systems.
This device is specifically used for the installation, servicing, and troubleshooting of three-phase motors, electrical panels, and industrial energy distribution systems.
With its simple and rugged design, the Fluke 9040 can quickly detect phase sequence without the need for external power. Simply connect the three probes to the phase terminals to determine the rotation direction (clockwise or counterclockwise) and verify the presence of all phases on the display.
The large and clear LED display, along with a wide working voltage range (up to 700V AC), makes this tester ideal for industrial environments, facilities, and production centers.
🔹 Key Features of Fluke 9040
-
Quick detection of phase rotation direction in three-phase systems
-
Visual display of rotation direction (Clockwise/Counterclockwise)
-
Confirmation of voltage presence in all three phases
-
Wide voltage range up to 700V AC
-
Self-powered without the need for an external power source
-
Shock-resistant casing with an ingress protection rating of IP40
-

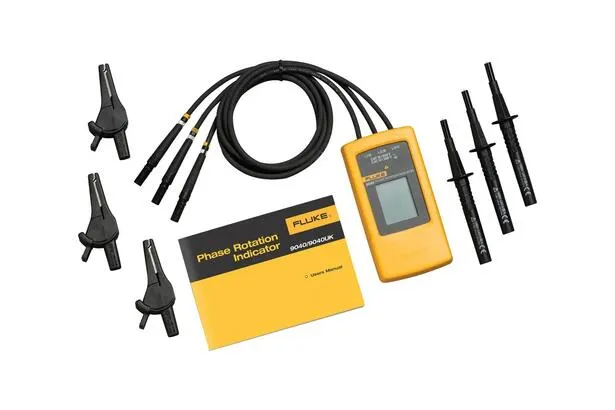

Insulated cables with standard color-coded probes
-
Suitable for testing motors, panels, and industrial distribution systems
🔹 Technical Specifications of Fluke 9040
| Feature | Value |
|---|---|
| Operating Voltage | 40 V AC to 700 V AC |
| Frequency Range | 15 Hz to 400 Hz |
| Display | Three-state LED (Phase Presence and Rotation) |
| Test Type | Phase sequence and rotation direction in three-phase |
| Power Supply | Self-powered (from the test circuit) |
| Safety Class | CAT III 600V / CAT IV 300V |
| Ingress Protection | IP40 |
| Operating Temperature | -10°C to +55°C |
| Dimensions | 124 × 61 × 27 mm |
| Weight | 130 grams |
❓ Frequently Asked Questions (FAQ)
Can the Fluke 9040 determine the motor rotation direction?
Yes, it directly displays the motor rotation direction (clockwise or counterclockwise).
Does it require batteries?
No, it receives its power from the tested circuit.
Can it be used for single-phase systems?
No, this device is specifically designed for three-phase systems.
Is it suitable for heavy industrial environments?
Yes, its rugged body and CAT IV safety class make it suitable for harsh environments.
🔚 Conclusion
The Fluke 9040 is a reliable and simple tool for quickly checking phase sequence and motor rotation direction in three-phase systems. With high accuracy, fast performance, and rugged design, it is one of the most commonly used industrial testers in the installation and maintenance of electrical equipment.
