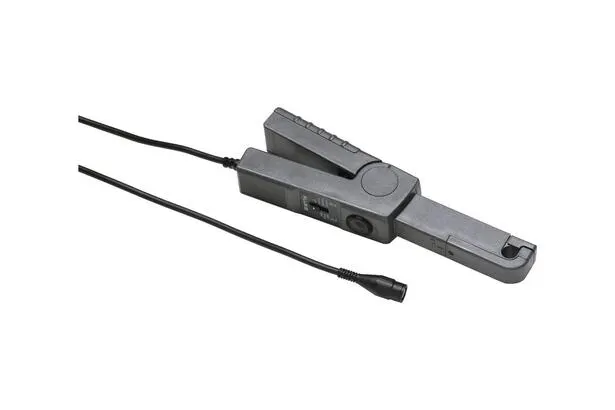

The Fluke model 80i-110s AC/DC Current Clamp is specifically designed for measuring both direct and alternating current. This tool is compatible with digital multimeters and data loggers, converting current signals into voltage that can be read by the device.
This probe can measure AC/DC current up to 100 Amps with a frequency range of up to 20 kHz. Its ergonomic design and durable body make it easy for technicians to use in industrial environments and harsh working conditions.
With the Fluke 80i-110s, accurate and reliable measurements can be made in the maintenance of electrical equipment, control systems, and laboratory equipment.
🔹 Key Features of Fluke Model 80i-110s
-
Measurement of AC/DC current up to 100 Amps
-
Proportional voltage output for connection to multimeters or data loggers
-
Bandwidth up to 20 kHz
-
Ergonomic and portable design
-
High accuracy in measuring small and medium currents
-
Suitable for industrial and laboratory use
🔹 Technical Specifications of Fluke Model 80i-110s
| Feature | Value |
|---|---|
| DC Current Range | 0.1 to 100 Amps |
| AC Current Range | 0.1 to 100 Amps RMS |
| Frequency Bandwidth | 20 kHz |
| Maximum Conductor Voltage | 600 Volts CAT II |
| Output | 1 millivolt per milliampere |
| Compatibility | Multimeters, recorders, etc. |
❓ Frequently Asked Questions (FAQ)
Does the Fluke 80i-110s connect to all multimeters?
Yes, it connects to any device with a millivolt input.
What is the maximum current that can be measured?
Up to 100 Amps AC/DC.
Is it suitable for measuring high frequencies?
Yes, it has a bandwidth of up to 20 kHz.
🔚 Conclusion
If you need an accurate probe for measuring AC/DC currents up to 100 Amps, the Fluke 80i-110s is an ideal choice. This tool features high accuracy, broad compatibility, and a rugged design, making it suitable for both industrial and laboratory use.
