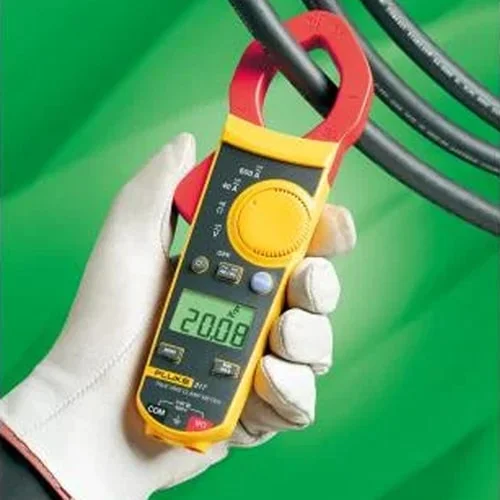

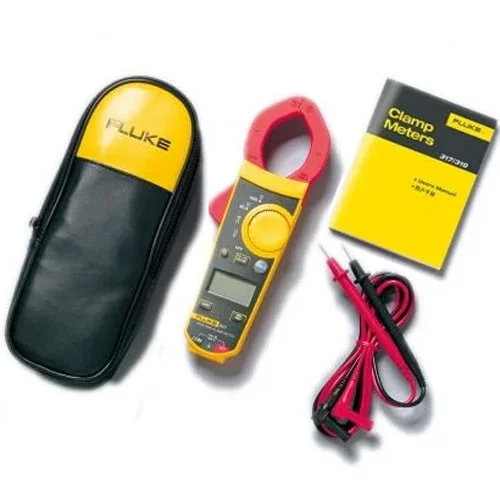

If you are looking for an accurate and multifunctional tool for measuring current in industrial or commercial projects, Fluke model 317 will be a wise choice.
This clamp meter has the capability of measuring AC and DC currents up to 600 Amps and a slim ergonomic design, making it easy to use in busy environments such as electrical panels.
Among the standout features of the Fluke 317 are True-RMS for accurate measurement under non-sinusoidal signal conditions, a backlit display, high precision, and low battery consumption.
This model also includes automatic shutdown and a low-pass filter to improve readings in noisy environments.
🔹 Key Features of Fluke Model 317
-
Measuring AC and DC currents up to 600A
-
AC/DC Voltage up to 600V
-
True-RMS for accurate measurement of complex signals
-
Ergonomic design with a slim jaw for easy access
-
Large digital display with backlight
-
Automatic shutoff and low-pass filter
-
Safety rating: CAT III 600V
🔹 Technical Specifications of Fluke Model 317
| Feature | Value |
|---|---|
| AC/DC Current | 0 to 600 Amps |
| AC/DC Voltage | 0 to 600 Volts |
| Resistance | Up to 40 kΩ |
| Display | Digital with backlight |
| Current Accuracy | ±(2% + 5 digits) |
| Clamp Jaw | 37 mm diameter |
| Safety | CAT III 600V |
| True-RMS | Yes |
| Weight | 384 grams |
❓ Frequently Asked Questions (FAQ) Fluke 317

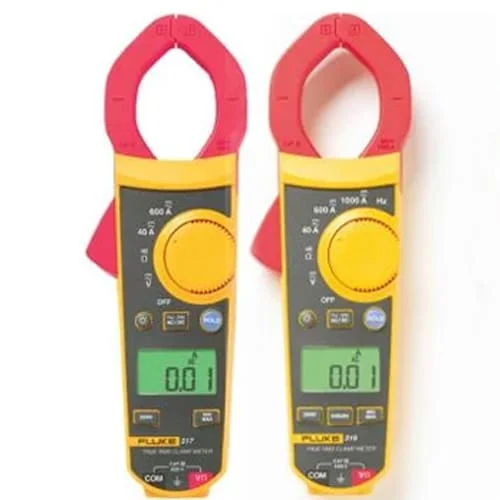

What is the difference between Fluke 317 and lower models like Fluke 305?
The Fluke 317 can also measure DC current and generally offers greater accuracy and features.
Does Fluke 317 have a low pass filter?
Yes, this filter is integrated to enhance accuracy in industrial noisy environments.
Can this clamp meter be used for construction work?
Yes, this device is suitable for construction, industrial applications, and electrical equipment repairs.
What type of safety protection does Fluke 317 have?
Its safety rating is CAT III 600V, making it suitable for use in main and sub panels.
🔚 Conclusion
If you are looking for a precise, durable, and versatile clamp meter, the Fluke 317 with True-RMS support and AC/DC measurement is one of the best options available.
This device combines high precision, suitable design, and reliable performance, making it an ideal choice for professional technicians and craftsmen.
