The Fluke 2062 Advanced Pro Wire Tracer Kit is one of the advanced tools for examining wiring and cables inside walls, ceilings, and floors of buildings.
This kit includes an advanced receiver 2062R and a transmitter 2000T, along with a current clamp i400. The receiver is capable of detecting signals in both active (with transmitter) and passive (without transmitter – NCV mode) modes.

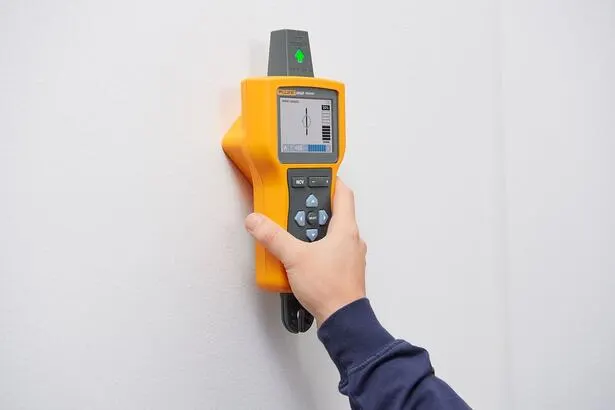

An important feature of this device is the smart sensor (Smart Sensor™) in the receiver, which displays the position of the live wire on a 3.5-inch color TFT screen, making cable detection easier and more accurate.
The transmitter 2000T features three output signal modes (High, Low, Loop) that can be selected automatically or manually, depending on the circuit status (active or inactive).

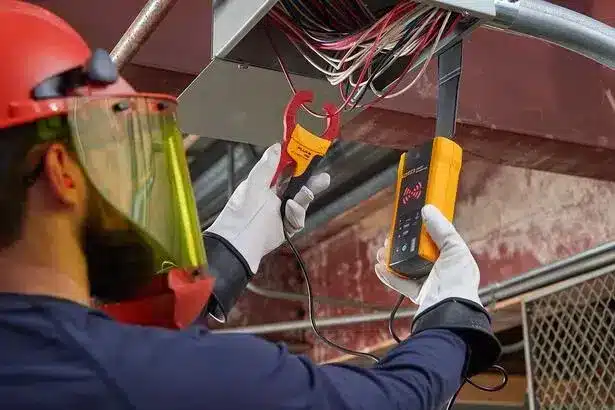

Additionally, the current clamp i400 allows signal induction into a protected (insulated) cable in Loop mode, enabling tracing without direct access.
This device is designed for environments where it is not possible to interrupt the circuit and provides high safety against transient voltages of up to 8000 volts.
🔹 Key Features of Fluke 2062
-
Safety rating of CAT IV 600V for protection in industrial conditions
-
Receiver with smart sensor for detecting the angle and direction of wires within walls
-
Active and passive tracing (NCV)
-
Transmitter with three signal modes: High, Low, Loop
-
Includes current clamp i400 for tracing in insulated cables
-
3.5-inch color TFT display
-
Multiple sensitivities of the receiver and adjustable signal levels
-

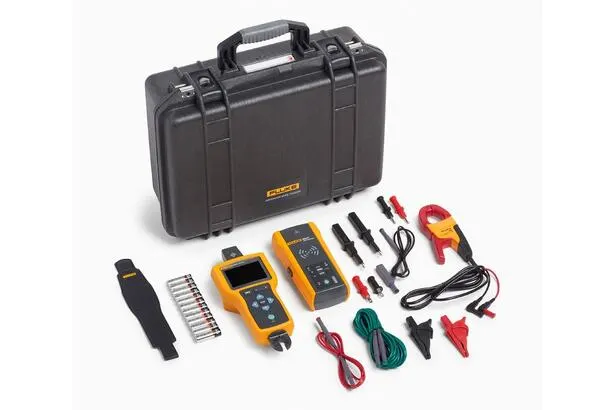

Complete kit including cables, probes, connectors, hard case, and batteries
🔹 Technical Specifications of Fluke 2062
| Feature | Value |
|---|---|
| Safety Rating | CAT IV 600V for receiver and transmitter |
| Receiver Display | 3.5-inch color TFT with resolution 480×320 |
| Signal Frequency | Active: 6.25 kHz / Passive: 32.768 kHz |
| Transmitter Signal Modes | High, Low, Loop |
| Signal Output Current | In various modes (High, Low, Loop) |
| Receiver Power Consumption | 110 mA typical |
| Battery Life | Approximately 20 hours |
| Air Tracking Distance | Up to approximately 6 meters in active mode |
| Receiver Dimensions | ~277 × 112 × 65 mm |
| Receiver Weight | ~0.544 kg |
❓ Frequently Asked Questions (FAQ)
Is the Fluke 2062 applicable only for electrical wires?
Yes, it is designed for tracing electrical wires (energized / de-energized) in industrial, construction, and installation systems.
Can it work without a transmitter?
Yes, in NCV mode, the receiver can detect voltage without a transmitter.
How does it detect if the wire is inside a wall?
The smart sensor displays the position and direction of the wire on the screen, making tracing more accurate.
What does the kit include?
The kit includes a receiver, transmitter, current clamp i400, probes, cables, a hard case, and batteries.
🔚 Conclusion
If you are looking for an advanced tool for tracing cables in conditions where power interruption is not possible, the Fluke 2062 Advanced Pro Wire Tracer is an excellent choice.
The combination of high safety, smart sensor, and comprehensive kit features makes it easy to use in your industrial and construction projects.
