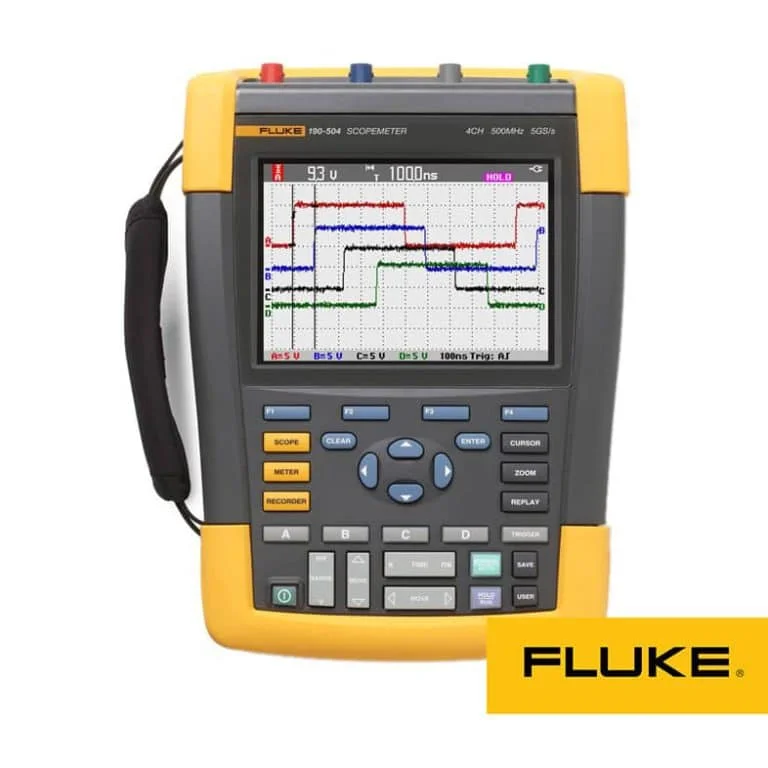

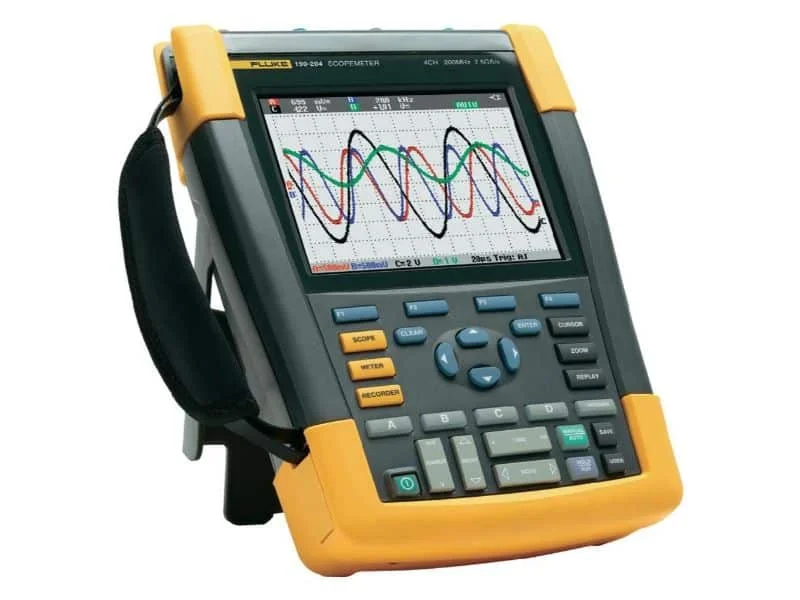

The Fluke 190-504-III portable scopemeter, designed to withstand shocks and harsh environmental conditions, is suitable for use in various industries such as automotive, energy, and power electronics. This device supports four isolated input channels, allowing for simultaneous measurement of four signals with high accuracy.
With a bandwidth of 500 MHz and a rise time of 0.7 nanoseconds, it is well-suited for analyzing high-frequency signals and rapid changes. Its internal memory of 10,000 samples and a sampling rate of 5 gigasamples per second facilitate data storage and analysis over time.
🔹 Key Features of Fluke 190-504-III
-
Four isolated input channels
-
500 MHz bandwidth
-
0.7 nanosecond rise time
-
5 gigasamples per second sampling rate
-
Internal memory of 10,000 samples
-
Isolated inputs up to 1000 volts (CAT III) / 600 volts (CAT IV)
-
High-resolution color display
-
Shock-resistant design for harsh environmental conditions
🔹 Technical Specifications of Fluke 190-504-III
| Feature | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 500 MHz |
| Rise Time | 0.7 ns |
| Sampling Rate | 5 GS/s (one channel) / 2.5 GS/s (two channels) / 1.25 GS/s (four channels) |
| Input Sensitivity | 2 mV/div to 100 V/div |
| Isolated Input | Up to 1000 V (CAT III) / 600 V (CAT IV) |
| Internal Memory | 10,000 samples per channel |
| Operating Temperature | 0 to 40 degrees Celsius (with battery) |
| Operating Humidity | 0 to 95% (non-condensing) |
❓ Frequently Asked Questions (FAQ)
Q: Is the Fluke 190-504-III suitable for use in high-voltage industrial environments?
A: Yes, this device is designed with safety standards of CAT III 1000V and CAT IV 600V, making it suitable for use in high-voltage industrial environments.
Q: What is the internal memory of this scopemeter?
A: The Fluke 190-504-III has an internal memory of 10,000 samples for each channel, allowing for data storage.
Q: Does this device have software connectivity?
A: Yes, this scopemeter can connect to FlukeView-2 software, which facilitates data analysis and storage.
🔚 Conclusion
The Fluke 190-504-III, with advanced features such as 500 MHz bandwidth, four isolated input channels, and a sampling rate of 5 gigasamples per second, is an ideal tool for maintenance engineers across various industries. This device ensures precise and safe performance in industrial environments thanks to its high safety standards and rugged design.
