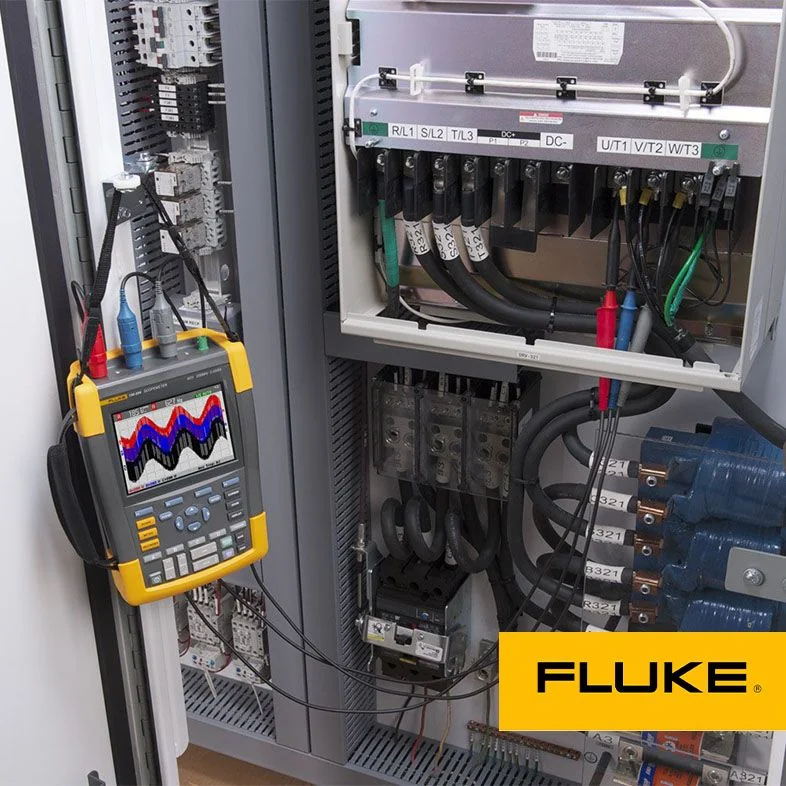

The Fluke 190-502-III model from the Fluke 190 series features a bandwidth of 500 megahertz, two isolated channels, and a sampling rate of 5 gigasamples per second, enabling precise analysis of high-frequency signals. This device includes isolated inputs with a maximum voltage of 1000 volts in CAT III and 600 volts in CAT IV.
Designed with a rugged structure and an IP51 protection rating, this scopemeter is optimized for use in industrial environments. Additionally, it offers long-term recording modes such as ScopeRecord and TrendPlot for capturing and analyzing transient and long-term data.
🔹 Key Features of Fluke 190-502-III
-
500 megahertz bandwidth
-
Two isolated channels with independent inputs
-
5 gigasamples per second sampling rate
-
Isolated inputs with a maximum voltage of 1000 volts in CAT III and 600 volts in CAT IV
-
Long-term recording modes ScopeRecord and TrendPlot
-
Rugged design with an IP51 protection rating
-
Rechargeable battery with a runtime of up to 7 hours
-
USB interfaces for data transfer to a computer
🔹 Technical Specifications (Fluke 190-502-III)
| Feature | Value |
|---|---|
| Number of Channels | 2 Isolated Channels |
| Bandwidth | 500 Megahertz |
| Rise Time | 0.7 Nanoseconds |
| Sampling Rate | 5 Gigasamples per second |
| Isolated Inputs | Max 1000 volts CAT III / 600 volts CAT IV |
| Recording Modes | ScopeRecord, TrendPlot |
| Protection Rating | IP51 |
| Battery Runtime | Up to 7 hours |
| Communication Interfaces | USB |
| Dimensions | 265 × 192 × 70 mm |
| Weight | Approximately 2.2 kg |
❓ Frequently Asked Questions (FAQ)
Question 1: Is this device suitable for use in industrial environments?
Answer: Yes, this scopemeter has an IP51 protection rating and high voltage isolated inputs, making it suitable for use in industrial environments.
Question 2: Is it possible to transfer data to a computer?
Answer: Yes, using the USB interfaces, data can be transferred to a computer for analysis.
Question 3: What is the battery runtime of this device?
Answer: The rechargeable battery of this device provides a continuous runtime of up to 7 hours.
🔚 Conclusion
The Fluke 190-502-III scopemeter, with features such as a 500 megahertz bandwidth, two isolated channels, and a sampling rate of 5 gigasamples per second, is an ideal tool for analyzing complex signals in industrial environments. Its rugged design and protection rating make it suitable for use in demanding industrial conditions.
📎 Official Datasheet Link
👉 Download Datasheet Fluke 190-502-III (PDF)
