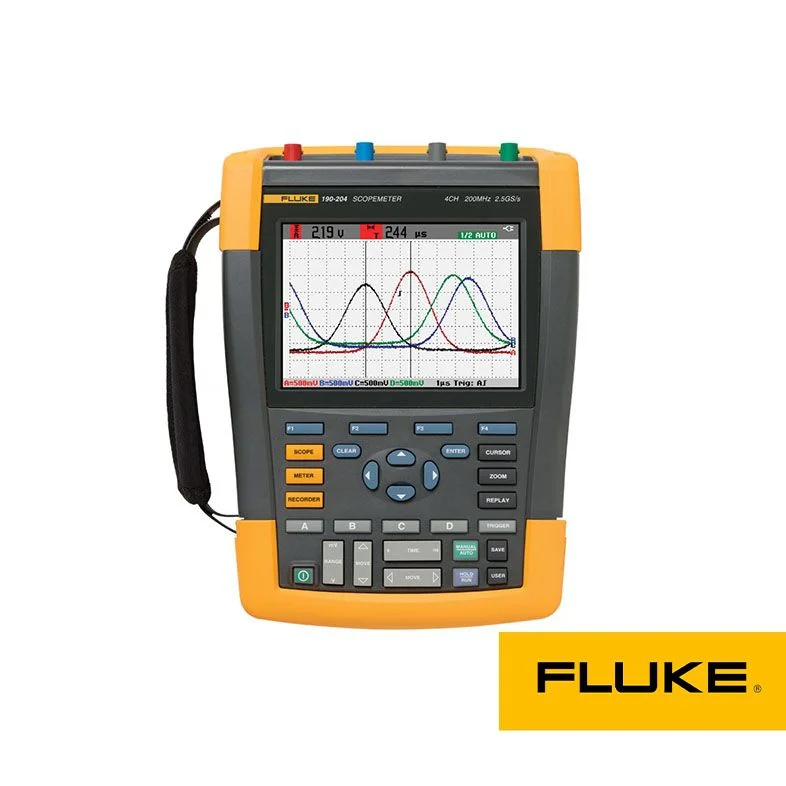

The Fluke 190-204-III is a part of Fluke's 190 series, equipped with features such as a 200 MHz bandwidth, four isolated channels, and a 2.5 GigaSamples per second sampling rate, enabling precise analysis of high-frequency signals. This device has isolated inputs with a maximum voltage of 1000 volts in CAT III and 600 volts in CAT IV.
The Scopemeter is accompanied by FlukeView‑2 software, which allows for analysis, documentation, and data transfer to a computer. Additionally, it has long-term recording modes such as ScopeRecord and TrendPlot for capturing and analyzing transient and long-term data.
🔹 Key Features of Fluke 190-204-III
-
200 MHz Bandwidth
-
Four Isolated Channels with Independent Inputs
-
2.5 GigaSamples per second Sampling Rate
-
Isolated Inputs with Maximum Voltage of 1000 Volts in CAT III and 600 Volts in CAT IV
-
Comes with FlukeView‑2 Software for Data Analysis and Documentation
-
Long-term Recording Modes ScopeRecord and TrendPlot
-
Rugged Design with IP51 Protection Rating
-
Rechargeable Battery with Operating Time of Up to 7 Hours
-
USB Interfaces for Data Transfer to Computer
🔹 Technical Specifications (Fluke 190-204-III)
| Feature | Value |
|---|---|
| Number of Channels | 4 Isolated Channels |
| Bandwidth | 200 MHz |
| Rise Time | 1.7 nanoseconds |
| Sampling Rate | 2.5 GigaSamples per second |
| Isolated Inputs | Maximum 1000 Volts CAT III / 600 Volts CAT IV |
| Recording Modes | ScopeRecord, TrendPlot |
| Accompanying Software | FlukeView‑2 |
| Protection Standard | IP51 |
| Battery Operating Time | Up to 7 Hours |
| Communication Interfaces | USB |
| Dimensions | 265 × 192 × 70 mm |
| Weight | Approximately 2.2 kg |
❓ Frequently Asked Questions (FAQ)
Question 1: What is the difference between the “‑S” model and the base model?
Answer: The “‑S” model comes with FlukeView‑2 software, which enables data analysis and documentation, while the base model does not have this software.
Question 2: Is this device suitable for use in industrial environments?
Answer: Yes, this Scopemeter has an IP51 protection rating and high-voltage isolated inputs, making it suitable for industrial use.
Question 3: Is it possible to transfer data to a computer?
Answer: Yes, data can be transferred to a computer using USB interfaces and FlukeView‑2 software for analysis.
Question 4: How long does the battery of this device last?
Answer: The rechargeable battery of this device provides approximately 7 hours of continuous operation.
🔚 Conclusion
The Fluke 190-204-III Scopemeter, with features such as a 200 MHz bandwidth, four isolated channels, and a 2.5 GigaSamples per second sampling rate, is an ideal tool for analyzing complex signals in industrial environments. With FlukeView‑2 software, this device offers professional capabilities for data analysis and documentation.
📎 Official Datasheet Link
👉 Download the datasheet for the Fluke 190-204-III (PDF)
