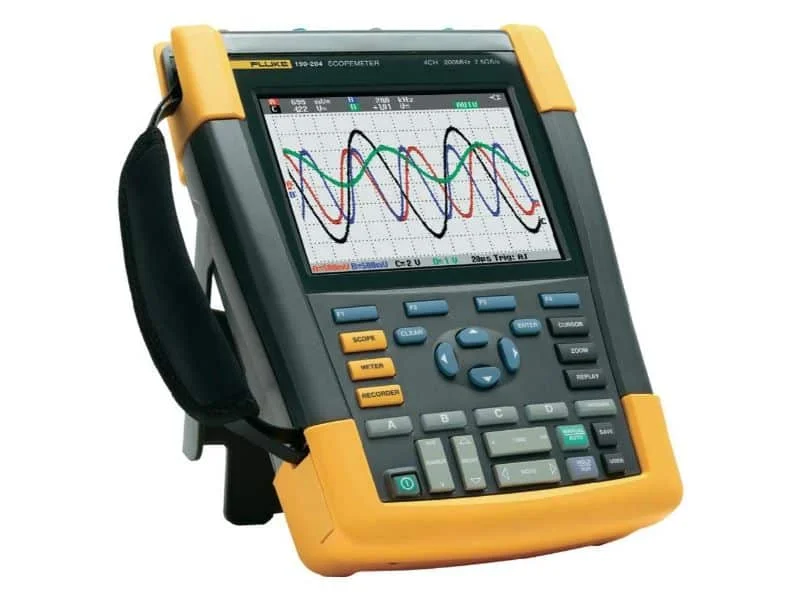

The Fluke 190-204-III-S is a portable oscilloscope with four isolated input channels, designed for precise and safe measurements in industrial environments. This device provides a bandwidth of 200 MHz and a sampling rate of 2.5 gigasamples per second, allowing for detailed analysis of complex signals.
With a deep memory of 10,000 samples and data storage capability, it enables the examination of signal details over time. This oscilloscope meets the safety standards of CAT III 1000V and CAT IV 600V, making it suitable for use in high-voltage industrial environments.
🔹 Key Features of Fluke 190-204-III-S
-
200 MHz Bandwidth
-
Four Isolated Input Channels
-
2.5 GSa/s Sampling Rate
-
10,000 Samples Deep Memory
-
CAT III 1000V / CAT IV 600V Safety Standards
-
Data Storage Capability and Connection to FlukeView-2 Software
-
Rugged Design for Shock Resistance and Harsh Environmental Conditions
🔹 Technical Specifications of Fluke 190-204-III-S
| Feature | Value |
|---|---|
| Number of Channels | 4 |
| Bandwidth | 200 MHz |
| Rise Time | 1.7 ns |
| Actual Sample Rate | 2.5 GS/s |
| Input Sensitivity | 2 mV/div to 100 V/div |
| Isolated Input | Up to 1000 V (CAT III) / 600 V (CAT IV) |
| Internal Memory | 10,000 samples per channel |
| Operating Temperature | 0 to 40 °C (with battery) |
| Operating Humidity | 0 to 95% (non-condensing) |
❓ Frequently Asked Questions (FAQ)
Q: Is the Fluke 190-204-III-S suitable for use in high-voltage industrial environments?
A: Yes, this device is designed to meet CAT III 1000V and CAT IV 600V safety standards and is suitable for use in high-voltage industrial environments.
Q: What is the internal memory of this oscilloscope?
A: The Fluke 190-204-III-S has an internal memory of 10,000 samples for each channel, allowing for data storage.
Q: Does this device have a connection capability to software?
A: Yes, this oscilloscope can connect to FlukeView-2 software, which enables data analysis and storage.
🔚 Conclusion
The Fluke 190-204-III-S, with advanced features such as a 200 MHz bandwidth, four isolated input channels, and a sampling rate of 2.5 gigasamples per second, is an ideal tool for maintenance engineers in various industries. This device ensures precise and safe performance in industrial environments with its high safety standards and rugged design.
📎 Link to Official Datasheet
👉 Download Datasheet Fluke 190-204-III (PDF)
