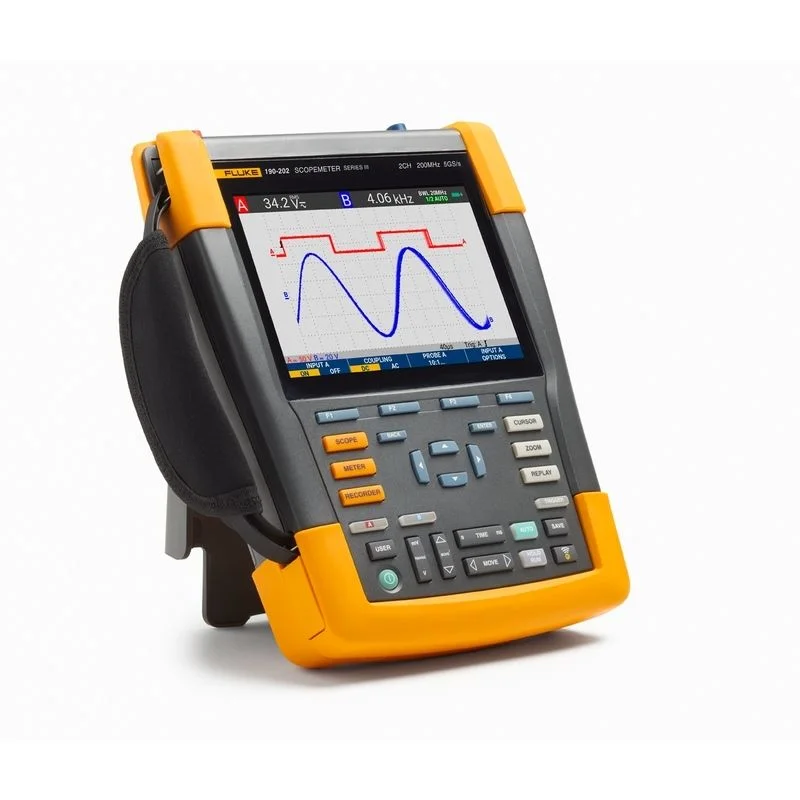

The Fluke 190-202-III-S model from the 190‑III series allows for precise analysis of high-frequency signals, with features such as a bandwidth of 200 MHz, two isolated channels, and a sampling rate of 2.5 GSa/s.
This device has isolated inputs with a maximum voltage of 1000 V in CAT III and 600 V in CAT IV.
The ScopeMeter is equipped with FlukeView‑2 software, which offers capabilities for data analysis, documentation, and transfer to a computer. It also includes long-term recording modes such as ScopeRecord and TrendPlot for capturing and analyzing transient and long-term data.
🔹 Key Features of Fluke 190-202-III-S
-
Bandwidth of 200 MHz
-
Two isolated channels with independent inputs
-
Sampling rate of 2.5 GSa/s
-
Isolated inputs with a maximum voltage of 1000 V in CAT III and 600 V in CAT IV
-
Comes with FlukeView‑2 software for data analysis and documentation
-
Long-term recording modes: ScopeRecord and TrendPlot
-
Robust design with IP51 protection rating
-
Rechargeable battery with run time of up to 7 hours
-
USB interfaces for data transfer to a computer
🔹 Technical Specifications (Fluke 190-202-III-S)
| Feature | Value |
|---|---|
| Number of Channels | 2 isolated channels |
| Bandwidth | 200 MHz |
| Rise Time | 1.7 ns |
| Sampling Rate | 2.5 GSa/s |
| Isolated Inputs | Maximum 1000 V CAT III / 600 V CAT IV |
| Recording Modes | ScopeRecord, TrendPlot |
| Accompanying Software | FlukeView‑2 |
| Protection Rating | IP51 |
| Battery Run Time | Up to 7 hours |
| Communication Interfaces | USB |
| Dimensions | 265 × 192 × 70 mm |
| Weight | Approximately 2.2 kg |
❓ Frequently Asked Questions (FAQ)
Question 1: What is the difference between the ‘‑S’ model and the base model?
Answer: The ‘‑S’ model comes with FlukeView‑2 software, which facilitates data analysis and documentation, while the base model lacks this software.
Question 2: Is this device suitable for use in industrial environments?
Answer: Yes, this ScopeMeter features an IP51 protection rating and isolated high-voltage inputs making it suitable for industrial environments.
Question 3: Is it possible to transfer data to a computer?
Answer: Yes, data can be transferred and analyzed on a computer using USB interfaces and FlukeView‑2 software.
Question 4: How long does the battery of this device last?
Answer: The rechargeable battery provides up to approximately 7 hours of continuous operation.
🔚 Conclusion
The Fluke 190‑202‑III‑S ScopeMeter, with features such as a bandwidth of 200 MHz, two isolated channels, and a sampling rate of 2.5 GSa/s, is an ideal tool for analyzing complex signals in industrial environments. Coupled with FlukeView‑2 software, this device offers professional data analysis and documentation capabilities.
📎 Official Datasheet Link
👉 Download the datasheet for Fluke 190‑202‑III‑S (PDF)
