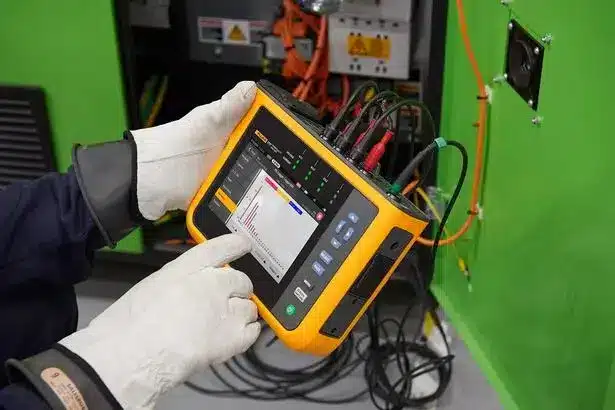

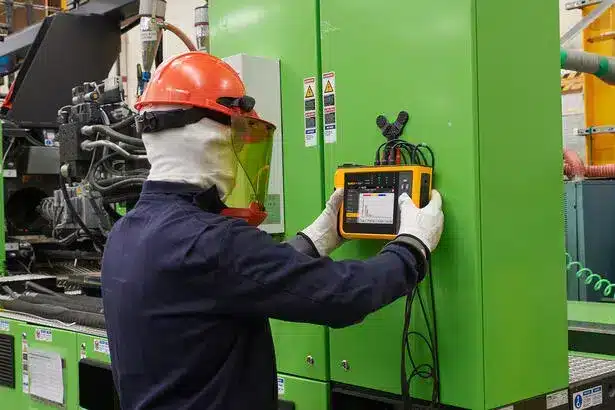

The Fluke 1775 oscilloscope meter, with its rugged design and easy portability, is designed for measuring and analyzing power quality in industrial three-phase systems. This device, using flexible iFlex® current probes and a high-resolution touchscreen display, provides real-time data viewing and analysis.
With the ability to measure various parameters such as harmonics, imbalance, flicker, and rapid voltage changes, this analyzer is an ideal tool for troubleshooting and optimizing the performance of electrical systems.
Prominent features of this device include load simulation capability, mechanical power measurement without the need for mechanical sensors, and motor efficiency assessment. This tool is particularly effective in identifying motor performance issues, reducing energy consumption, and preventing unexpected failures in industrial production lines.
🔹 Key Features of Fluke 1775
-
Capability to measure electrical and mechanical parameters of three-phase motors
-
Analysis of motors connected to variable frequency drives (VSD)
-
Mechanical power measurement without needing mechanical sensors
-
Motor efficiency assessment and identification of performance issues
-
Rugged design suitable for use in industrial environments
🔹 Technical Specifications of Fluke 1775
| Feature | Value |
|---|---|
| Device Type | Power Quality and Energy Analyzer |
| Model | 1775 |
| Measurement Capability | Electrical and mechanical parameters of three-phase motors |
| Motor Analysis of VSD | Yes |
| Mechanical Power Measurement | Yes |
| Motor Efficiency Evaluation | Yes |
| Rugged Design | Yes |
❓ Frequently Asked Questions (FAQ)
Q: Is this device suitable for use in industrial environments?
A: Yes, the Fluke 1775 oscilloscope with its rugged design is suitable for industrial environments.
Q: Does this device have the capability to analyze motors connected to variable frequency drives?
A: Yes, this device is capable of analyzing motors connected to variable frequency drives (VSD).
Q: Is there a need for additional sensors to measure mechanical power?
A: No, this device is capable of measuring mechanical power without the need for mechanical sensors.
🔚 Conclusion
The Fluke 1775 oscilloscope, with added motor analysis capabilities, is a comprehensive tool for measuring and analyzing the performance of electrical and mechanical systems in industrial environments.
This device, with its ability to identify motor performance issues, reduce energy consumption, and prevent unexpected failures, helps optimize the performance of industrial systems.
📎 Official Datasheet Link
👉 Download the datasheet Fluke 1775 (PDF)
