The Fluke 1746/30/INTL, from the Fluke 1740 series, is a three-phase power quality tester with precise and simultaneous data collection capabilities.
This device features flexible iFlex probes for measuring currents up to 3000 amps and analyzing harmonics.

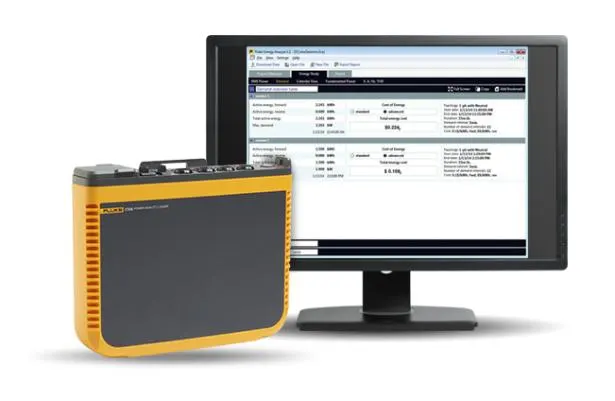

By connecting to the Energy Analyze Plus software, the collected data can be analyzed, and international standard reports can be generated.
The Fluke 1746/30/INTL is ideal for use in industrial environments and production lines, helping to identify performance issues, optimize energy consumption, and ensure the stability of electrical systems.
🔹 Key Features of Fluke 1746/30/INTL
-
Measurement of voltage, current, power, reactive power, and power factor
-
Measurement of harmonics and flicker in three-phase systems
-
iFlex probes up to 3000 amps for high currents
-
Storage of over 20 measurement sessions
-
Rugged design with an IP65 protection rating suitable for industrial environments
-

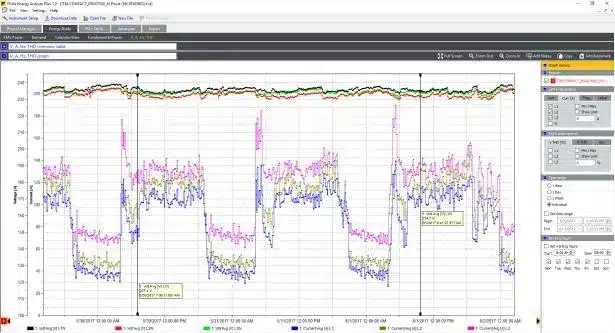

Connection to Energy Analyze Plus software for precise data analysis
🔹 Technical Specifications of Fluke 1746/30/INTL
| Feature | Value |
|---|---|
| Device Type | Three-phase power quality analyzer |
| Model | 1746/30/INTL |
| Input Voltage | 100 to 500 Volts |
| Input Current | Up to 3000 amps with iFlex probes |
| Voltage Measurement Accuracy | ±(1% + 0.02%) |
| Current Measurement Accuracy | ±(1% + 0.02%) |
| Power Measurement | AC/DC, active and reactive |
| Harmonic Measurement | Yes |
| Data Storage | Over 20 sessions |
| Supported Software | Energy Analyze Plus |
| Rugged Design | IP65 |
| Standards | IEC 61000-4-30 Class A Edition 3 |
❓ Frequently Asked Questions (FAQ)
Q: Is this device suitable for industrial environments?
A: Yes, with its rugged design and IP65 protection rating, it is suitable for industrial environments.
Q: Can high currents be measured?
A: Yes, using flexible iFlex probes up to 3000 amps.
Q: What is the purpose of the Energy Analyze Plus software?
A: For data analysis and generating standard power quality reports.
Q: Does this model have the capability to measure harmonics and flicker?
A: Yes, all power quality parameters, including harmonics and flicker, are measurable.
🔚 Conclusion
The Fluke 1746/30/INTL is a comprehensive tool for analyzing and measuring power quality in industrial three-phase systems.
With high accuracy, flexible probes, and connectivity to Energy Analyze Plus software, it aids in optimizing energy consumption and preventing failures in electrical systems.
📎 Official Datasheet Link
👉 Download the datasheet Fluke 1746/30/INTL (PDF)
