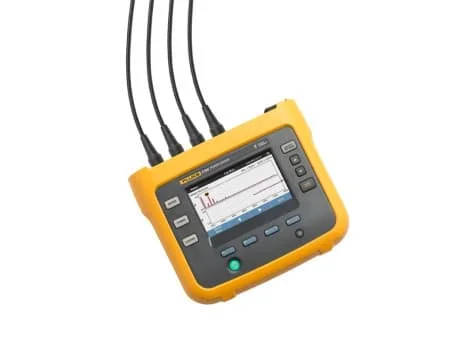

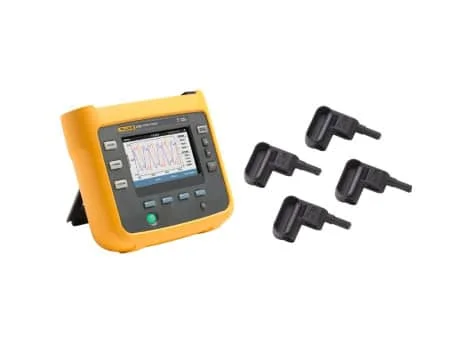

The Fluke 1736/EUS oscilloscope, with its robust design and easy portability, is an ideal tool for measuring and analyzing power quality in industrial three-phase systems.
This device, utilizing flexible i17xx-FLEX current probes, allows for accurate current measurements up to 6000 Amperes. Furthermore, with a color touchscreen display and an intuitive user interface, it enables real-time data viewing and analysis.
Outstanding features of this device include wireless connectivity via the Fluke Connect® app, storage of over 500 power quality parameters, and the capability to be powered either from the measurement circuit or a standard power source.
This tool is particularly effective in identifying performance issues in electrical systems, optimizing energy consumption, and preventing unexpected failures.
🔹 Key Features of Fluke 1736/EUS
-
Capability to measure and record voltage, current, power, harmonics, and related power quality parameters.
-
Wireless connectivity via the Fluke Connect® app for real-time data viewing and analysis.
-
Storage of over 500 power quality parameters for comprehensive analysis.
-
Robust design with an IP65 protection rating suitable for use in industrial environments.
-
Capability to be powered either from the measurement circuit or a standard power supply for greater flexibility.
🔹 Technical Specifications of Fluke 1736/EUS
| Feature | Value |
|---|---|
| Type | Three-phase power quality analyzer |
| Model | 1736/EUS |
| Input Voltage | 100 to 1000 Volts (using safety input) |
| Input Current | Up to 6000 Amperes (with i17xx-FLEX probes) |
| Voltage Measurement Accuracy | ±(0.2% + 0.01%) |
| Current Measurement Accuracy | ±(1% + 0.02%) |
| Power Measurement Accuracy | ±(1% + 0.02%) |
| Harmonic Measurement Accuracy | ±0.5% |
| Display | Touchscreen color display with high resolution |
| Wireless Connectivity | Via Fluke Connect® app |
| Data Storage | Over 500 power quality parameters |
| Device Power Supply | From measurement circuit or standard power supply |
| Protection Rating | IP65 |
| Device Dimensions | 21.65 × 15.75 × 7.87 inches |
| Device Weight | 0.5 kilograms |
❓ Frequently Asked Questions (FAQ)
Q: Is this device suitable for use in industrial environments?
A: Yes, the Fluke 1736/EUS oscilloscope, with its IP65 protection rating and robust design, is suitable for use in industrial settings.
Q: Does this device have wireless connectivity?
A: Yes, this device provides real-time data viewing and analysis via the Fluke Connect® app.
Q: Are additional probes required for measuring current?
A: Yes, to measure high currents, this device supports up to 6000 Amperes with i17xx-FLEX probes.
🔚 Conclusion
The Fluke 1736/EUS oscilloscope, with its advanced features, is a comprehensive tool for measuring and analyzing power quality in industrial three-phase systems.
This device aids in optimizing energy consumption, identifying performance issues, and preventing unexpected failures through its wireless connectivity, data storage capabilities, and robust design.
