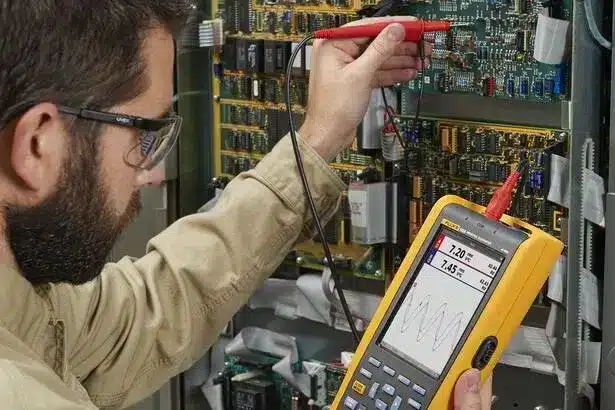

The Fluke 123B ScopeMeter is one of the tools designed for electronics, electrical, and facility maintenance technicians allowing them to perform multiple tasks in a single device:
-
20 MHz bandwidth oscilloscope with signal capture and waveform display
-
True-RMS dual multimeter for measuring voltage, current, resistance, capacitance, and more
-
Trend recorder / internal memory for storing and displaying parameter changes over time
With the 'Connect-and-View' feature, it automatically adjusts settings. It also allows for the storage of screenshots and data, transfer to software, and integration with Fluke Connect among other features.
The 'S' version kit includes ScopeMeter software, a magnetic hanger, and a screen protector.
🔹 Key Features of Fluke 123B
-
20 MHz dual-channel oscilloscope
-
High-accuracy True-RMS multimeter
-
Data recording and TrendPlot display
-
Connect-and-View technology for automatic setup
-
Internal storage and microSD card slot
-
Rugged design, suitable for industrial environments
-

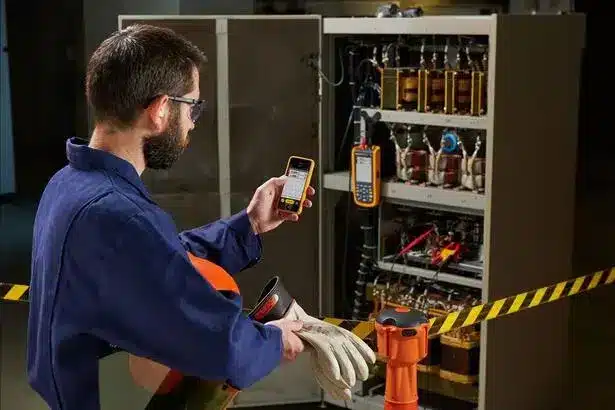

Compatible with Fluke Connect software
-
Powered by a rechargeable lithium battery
-
Safety rating CAT III 600V / CAT IV (depending on accessories)
🔹 Technical Specifications of Fluke 123B
| Feature | Value |
|---|---|
| Bandwidth | 20 MHz |
| Sampling Rate | Up to 40 MS/s |
| Oscilloscope Input | Two analog channels |
| Dual Multimeter | Two 5,000 counts multimeters |
| Internal Memory | Screenshot and data storage (within the device and on storage card) |
| Power Supply | 10.8V rechargeable lithium battery |
| Battery Life | Approximately 7 hours (with medium backlight) |
| Dimensions | 259 × 132 × 55 mm |
| Weight | Approximately 1.4 kg with battery |
❓ Frequently Asked Questions (FAQ)
Does the Fluke 123B function only as an oscilloscope?
No, this device is a combination tool that includes an oscilloscope, multimeter, and data recorder.
How do I store and transfer a signal?

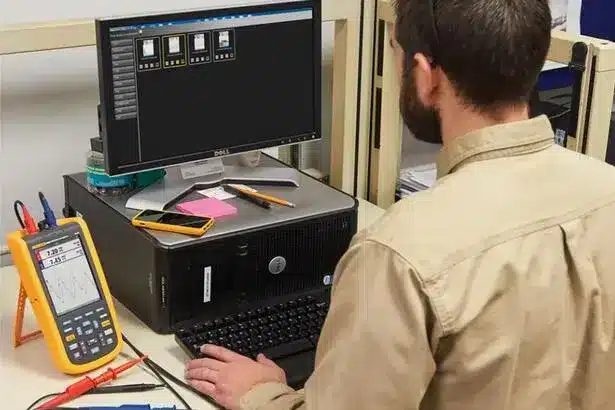

By saving it in internal memory or on a microSD card and transferring it to a computer via an isolated cable or corresponding software.
Is there a difference with the S version?
Yes, the 'S' kit includes ScopeMeter software, a magnetic hanger, and a screen protector.
Is the design resistant for industrial environments?
Yes, its durable body and protective rating make it suitable for tough industrial conditions.
🔚 Conclusion
If you are looking for a versatile tool that combines an oscilloscope, multimeter, and recorder in a rugged body, the Fluke 123B is an excellent option. With advanced features, support from Fluke Connect, and industrial design, it can meet your professional needs in troubleshooting and testing electrical equipment.
