This article helps you understand solenoid valve issues and subsequently diagnose them. Solenoid valves are an essential component of any hydraulic system and may fail for various reasons.
A solenoid valve is one of the main components of a valve. The failure rate of solenoid valves is also higher compared to other valve accessories.

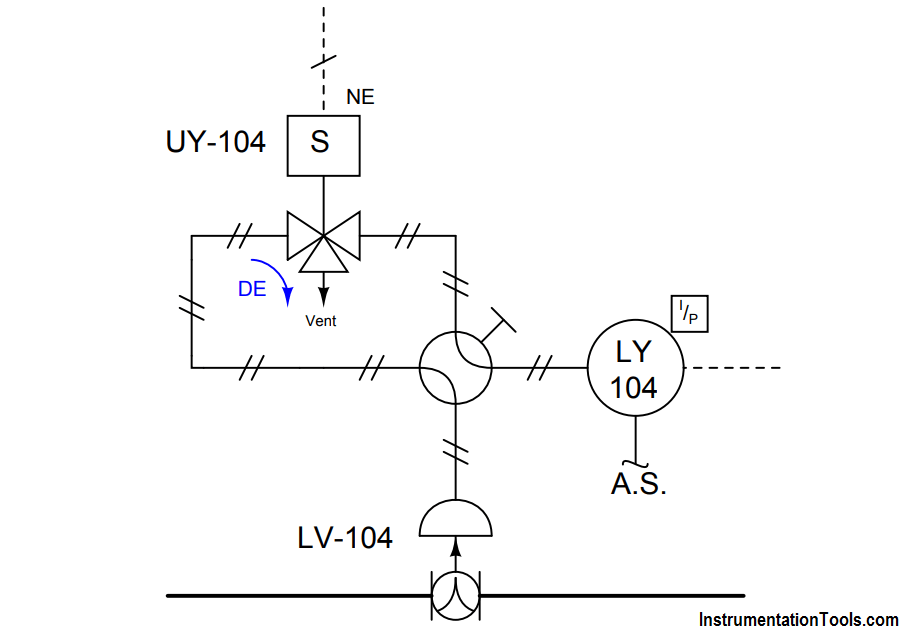

Suppose this valve has a control system issue. The control valve (LV-104) does not move to the fully open position as it should when the solenoid valve is powered off, although it does move when the 4-20 mA current signal changes to the I/P converter. The solenoid valve is powered:
Solenoid Valve Issues

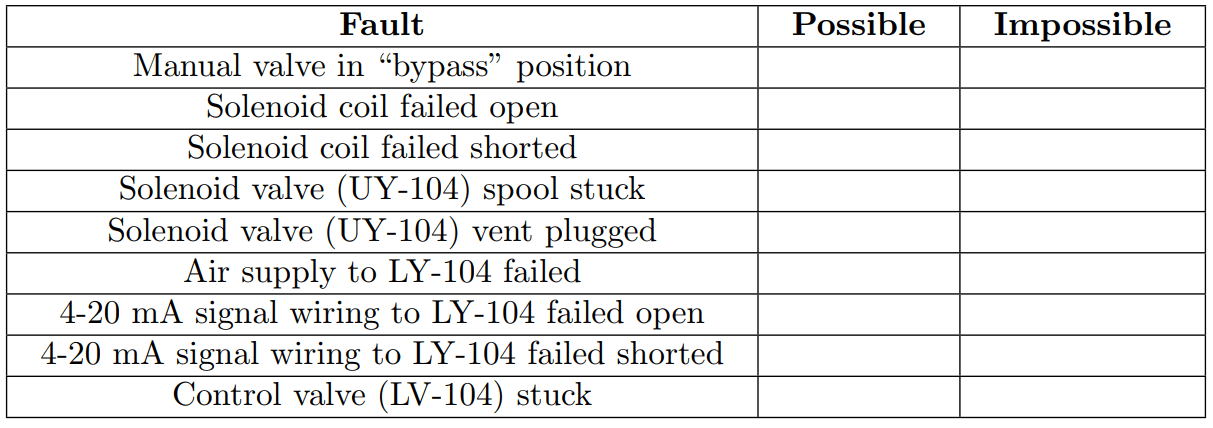

Identify the likelihood of any of the specified errors occurring in this circuit.
Consider each error one by one (i.e., without random errors), determining whether each error can independently compute all measurements and signs in this circuit.
Responses to Solenoid Valve Issues:

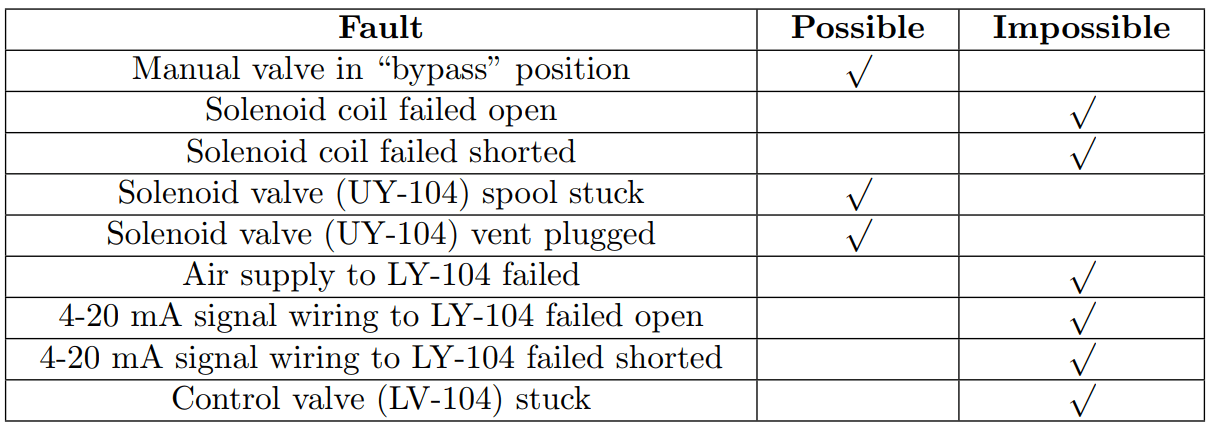

The table below shows solutions indicating potential and impossible errors.
Share your thoughts on the responses below.
