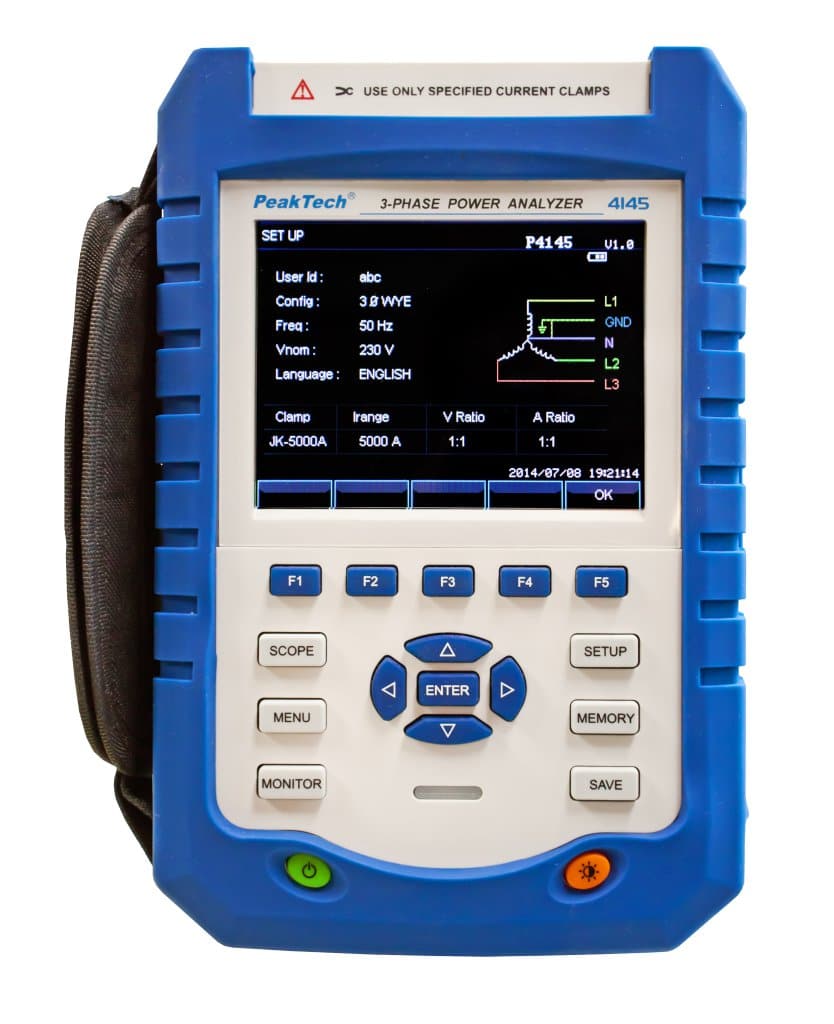

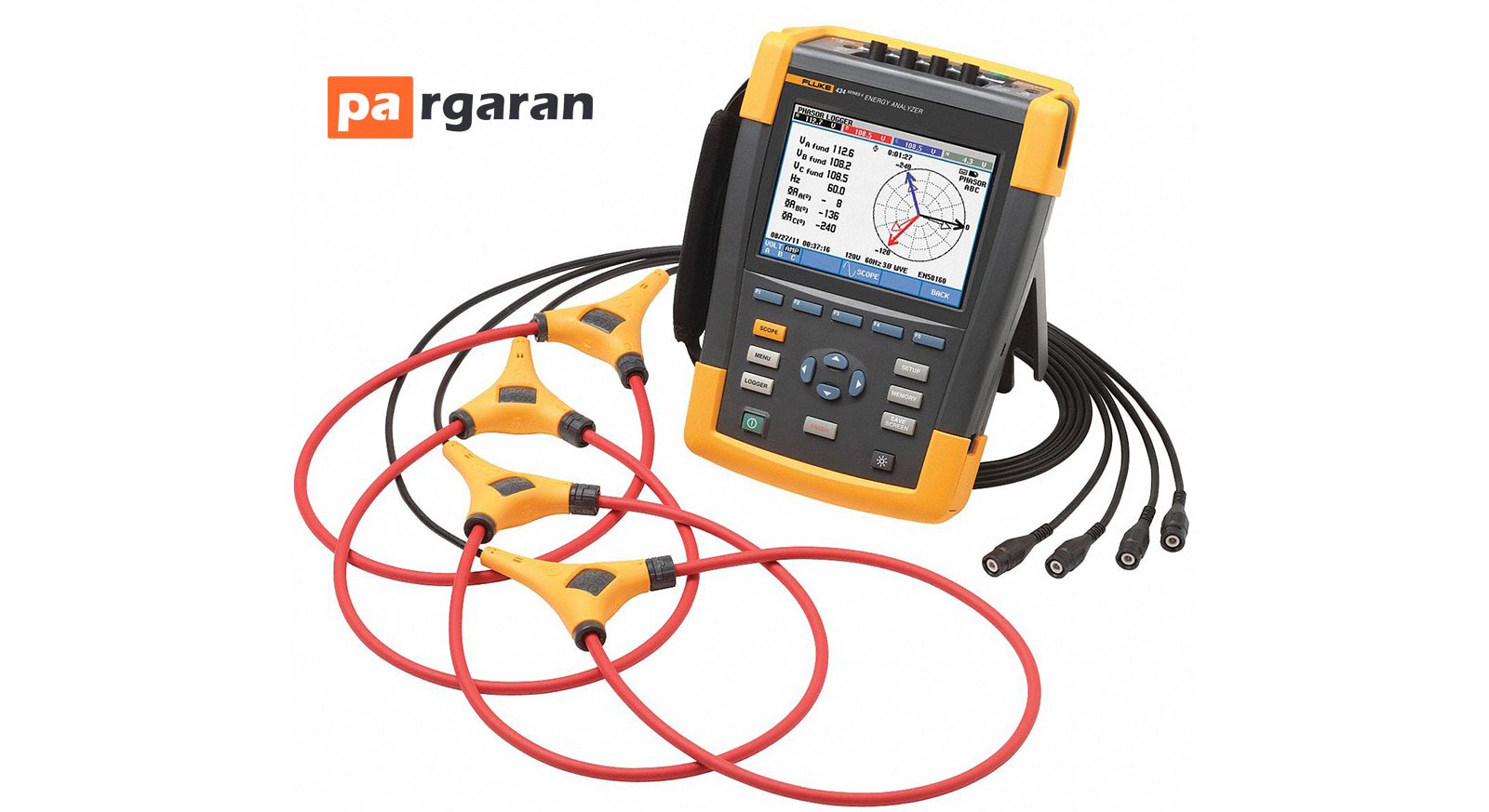

Power Analyzer | پاور آنالایزر
One of the main concerns in electricity-producing industries and its users is measuring the amount of power and electricity. This can be easily accomplished with a power analyzer.
Power analyzers are used to measure the electricity power in machines and devices that produce, convert, or alter electricity.
Additionally, this tool can be utilized for accurately calculating power in office equipment, machinery, drives, and motors.
With this device, energy in single-phase systems and parameters such as power, current, active power, voltage, etc. can be measured.
By connecting the power analyzer to a computer, minimum or maximum reports can be obtained.
What has increased the demand for precise energy measurement in recent decades is the continuous growth and advancement in utilizing power and energy across different industries.
Engineers can easily determine and measure energy losses in machinery and electrical and lighting circuits with the help of a power analyzer.
Multifunctional Power Analyzer
A multifunctional power analyzer has the capability to measure voltage and current intensities in AC and DC in both alternating and direct forms.
These types of multifunctional power analyzers are used for energy measurement. Additionally, phase rotation and harmonic analyses can also be conducted with a power analyzer.
These devices are available in various types.
For power maintenance systems, a clamp power analyzer is used, which has direct measurement and evaluation capabilities.
This allows for analyzing power without putting current into the circuit.
The movement of alternating current in electrical systems necessitates the analysis and measurement of certain factors. Analyzing these factors can aid in energy transmission and their use in electrical devices.
- The design of the power analyzer allows it to measure the qualitative parameters of power and current.
These types of devices are particularly important due to their ability to measure and evaluate energy consumption, its efficiency, and compute energy loss in many systems, making them one of the most practical tools.
Types of Power Analyzers
Power analyzers are designed in different types, each possessing specific features and applications.
The types of these devices include:
- Graphical Power Analyzer
- Clamp Watt Meter
- Single-phase and Three-phase Power Analyzers
- Leakage Current Power Analyzer
Varieties of power analyzers are categorized as follows based on their functionality.

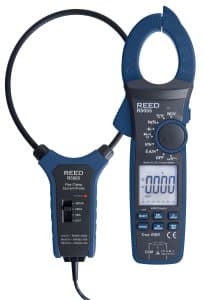

Clamp meters with varying functionalities are produced in various brands.
They have the capability to measure and assess the following parameters:
- Current
- Resistance
- Voltage
- Diode and buzzer tests
- Active power calculation
These factors contribute to their high quality.
- This model of power analyzers does not have harmonic analysis capabilities.
Watt meters are used to measure voltage current in both AC and DC states.
The advantage of using a watt meter is that various parameters can be calculated and measured simultaneously.
Given the capacity to calculate the power of devices, it enables the evaluation of the amount of consumed energy as well. Therefore, significant steps can be taken towards optimal energy consumption.
- This model of device, like the clamp meter, does not have harmonic assessment capabilities.

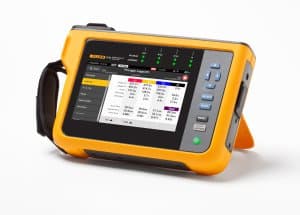

Single-phase and Three-phase Power Analyzers
Single-phase and three-phase power analyzers are considered advanced devices in the electric industry capable of analyzing important parameters in power quality.
These models can accurately assess active power and reactive power and also have capabilities to analyze and examine harmonics.
- This type of power analyzer is used to check phase differences in single-phase and three-phase circuits.
Applications
Uses in electrical industries, industrial power operators, large and small industrial factories, single-phase and three-phase power transformers, and sound studios are among the situations where power analyzers demonstrate their powerful performance and advantages.

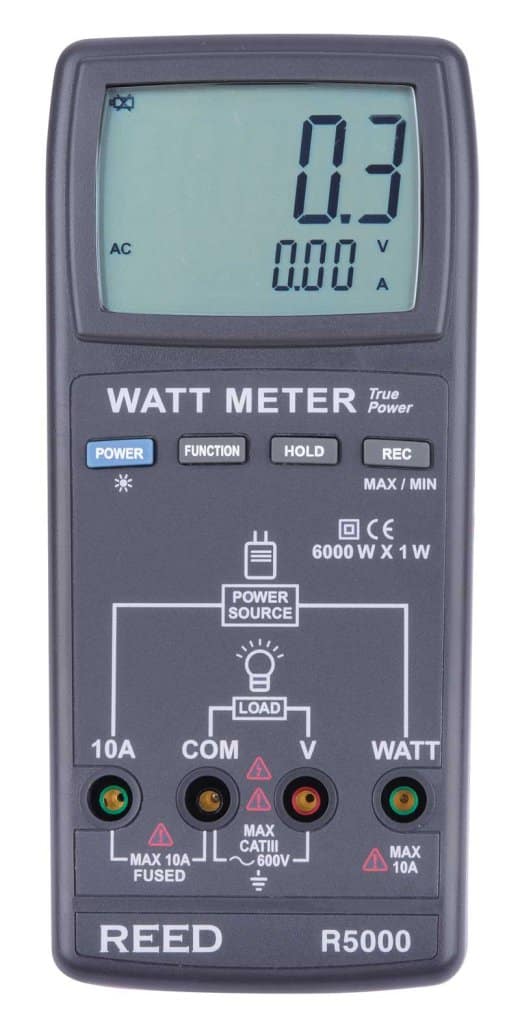

Watt Meter (وات متر)
Single-phase watt meters with measurement capabilities for current and voltage are considered one of the practical power analyzer devices.
Measuring and analyzing a wide range of capacitors is a special advantage of the APPA 136 watt meter, alongside its other abilities and applications.
This capability can be effective in situations requiring the startup and testing of capacitor banks.
A watt meter can also measure the following:
- Resistance
- Short-circuit and semiconductor tests
- Network frequency
