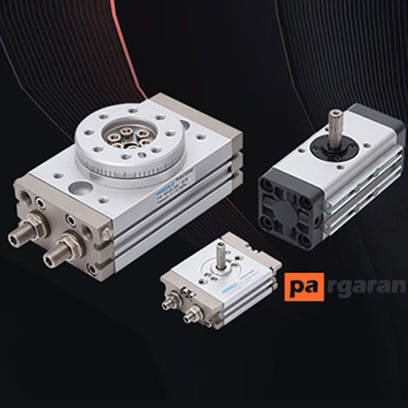

Pneumatic Rotary Cylinder | Pneumatic Rotary Jack: Utilizing the force of pressurized fluid (compressed air), the rotary cylinder rotates at fixed and limited angles. Among the most significant advantages of pneumatic cylinders are their compact size and easy installation. The angles of the rotary jack are limited by mechanical systems, with internal or external angle control.
At the end of the stroke, there is a shock absorber to reduce speed. One of the most important applications of the rotary jack is precise control for opening butterfly valves in pipelines. With the rotary jack, you can perform other operations such as bending rods.

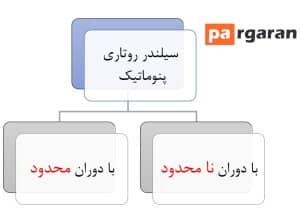

This jack is available in 90-degree and 360-degree angles. Pneumatic rotary cylinders are divided into two categories: limited rotation cylinders and unlimited rotation cylinders. If the shaft can rotate indefinitely, it is also referred to as a pneumatic motor.

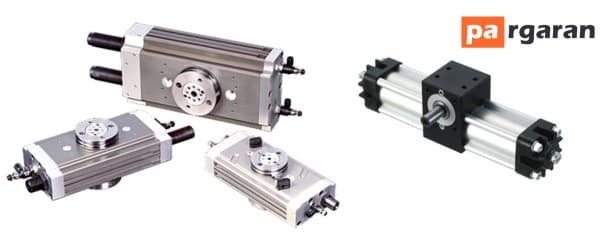

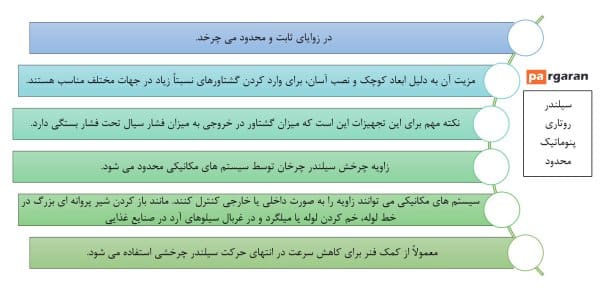

Pneumatic Rotary Cylinder | Pneumatic Rotary Jack | Pneumatic Rotary Cylinder Limited

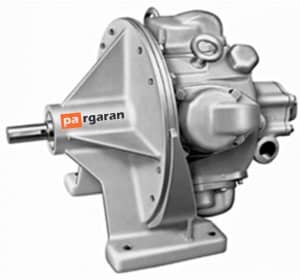

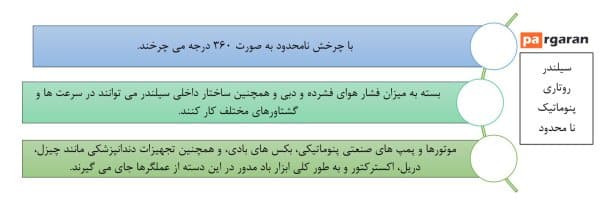

Unlimited Pneumatic Rotary Jack

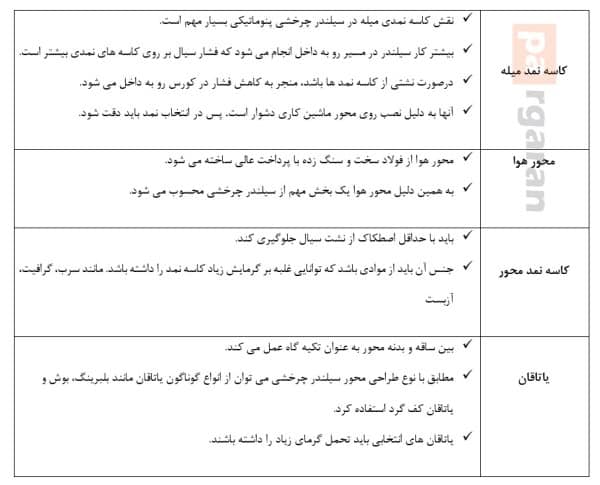

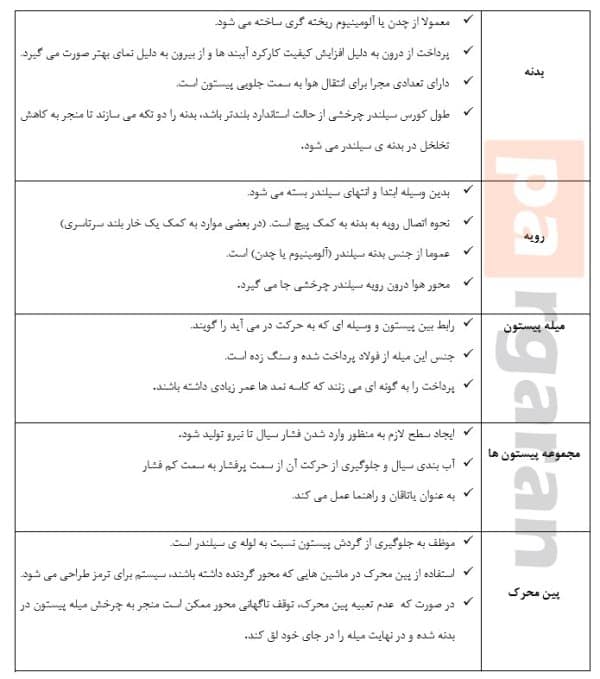

Main Components of Pneumatic Rotary Cylinder | Pneumatic Rotary Jack

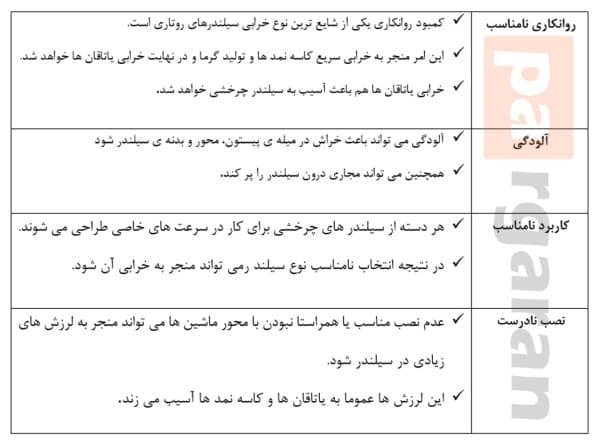

Causes of Failure of Pneumatic Rotary Cylinder
The pneumatic rotary cylinder operates at very high speeds. The mounting bases of the cylinder are part of the body, and in cylinders with a small diameter, the cylinder base is threaded and connected directly to the base. In larger diameter cylinders, installation is done using bolts at the sides.
-

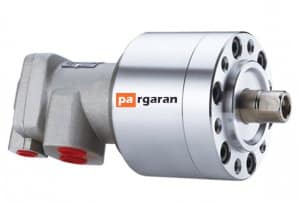

Hydraulic Rotary Jack
Hydraulic rotary actuators are compact units that can generate very high torque in small spaces using hydraulic pressure. These actuators and high-efficiency components can be precisely and easily controlled.
Hydraulic actuators and rotary components are well-sealed with a housing that can withstand high operational pressures even in the toughest conditions.
In a hydraulic rotary cylinder, the energy in the pressurized fluid, such as hydraulic oil, is converted into linear and rotary motion. In the rotary mode, this motion can be observed as the rotation of the hydraulic jack shaft.
Of course, in some types of hydraulic cylinders, both linear and rotary motions can be combined together.
I hope you enjoyed reading the article (Pneumatic Rotary Cylinder | Pneumatic Rotary Jack).
If you have any questions or suggestions, please contact Pargaran group.
