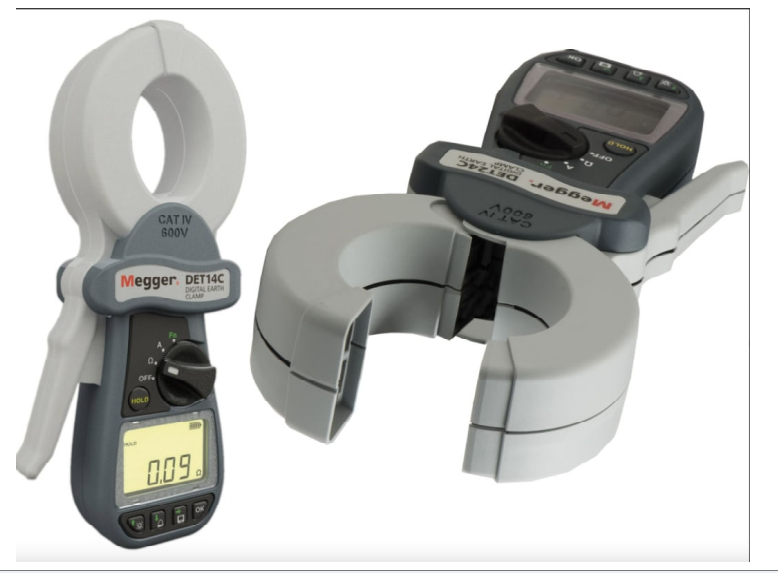

The Megger DET-14C digital earth clamp tester is an advanced and reliable tool for measuring earth resistance and leakage current in electrical systems.
Utilizing clamp-on technology, this device allows for accurate measurements without the need to disconnect circuits or use auxiliary rods, significantly reducing installation and maintenance time and costs.
With this product, Megger sets high standards in the field of electrical testing tools, making the DET-14C an essential tool for professional technicians.
Its ergonomic design and large LCD display enhance data readability in various lighting conditions.
Capable of measuring currents up to 40 Amperes and resistances up to 20 Kiloohms, it covers a wide range of industrial and commercial applications.
Additionally, advanced safety features and an IP40 rating ensure the durability and safety of the device in harsh working environments.
Key Features
- Measurement of earth resistance without the need for auxiliary rods or circuit disconnection
- Resistance measurement range from 0.01 Ohm to 20 Kiloohms
- Capable of measuring current up to 40 Amperes
- Large LCD display with backlight for easy readability
- Clamp design with a wide opening for easy access to conductors
- Hold feature to capture data
- IP40 safety standard for protection against water spray
- Automatic operation with minimal need for frequent calibration
Technical Specifications
| Feature | Value |
| Brand | Megger |
| Model | DET-14C |
| Device Type | Digital Earth Clamp Tester |
| Resistance Range | 0.01 Ohm to 20 Kiloohms |
| Current Range | Up to 40 Amperes |
| Display | LCD with backlight |
| Safety Standard | IP40 |
| Power Supply | Battery (typically 9 Volts) |
| Additional Features | Hold function, automatic shutdown |
Frequently Asked Questions
Is the Megger DET-14C digital earth clamp tester suitable for measuring complex earthing systems?
Yes, this device is highly suitable for complex and multi-point earthing systems due to its capability to measure without disconnecting the circuit and using clamp technology, eliminating the need for auxiliary rods.
Does this device have the capability to measure leakage current?
Yes, the DET-14C earth clamp tester can measure earth resistance as well as leakage currents up to 40 Amperes, which is critical for troubleshooting electrical systems.
Is calibration of this device difficult?
No, this device is designed to require minimal frequent calibration, and its operation is automatic. However, for high accuracy, it is recommended to follow the manufacturer's instructions.
Conclusion
The Megger DET-14C digital earth clamp tester, with its high accuracy, ease of use, and advanced features, is an ideal choice for electrical engineers, maintenance technicians, and electrical service companies.
This device simplifies and accelerates the troubleshooting and inspection process of earthing systems by eliminating the need for traditional and time-consuming testing methods.
Consider the DET-14C as part of your professional tools to ensure the safety and efficiency of your electrical systems.
