The Fluke model 1625-2 Kit is designed for electrical engineers, contractors, and industrial technicians to perform a complete test of grounding systems without the need to purchase additional equipment.
The main device of this kit, the Fluke 1625-2, allows for ground resistance testing using four methods:
-
Three-Wire (3-Pole Fall-of-Potential)
-
Four-Wire (4-Pole Measurement) for higher accuracy
-
Selective Method (Selective Test) for testing without system shutdown
-

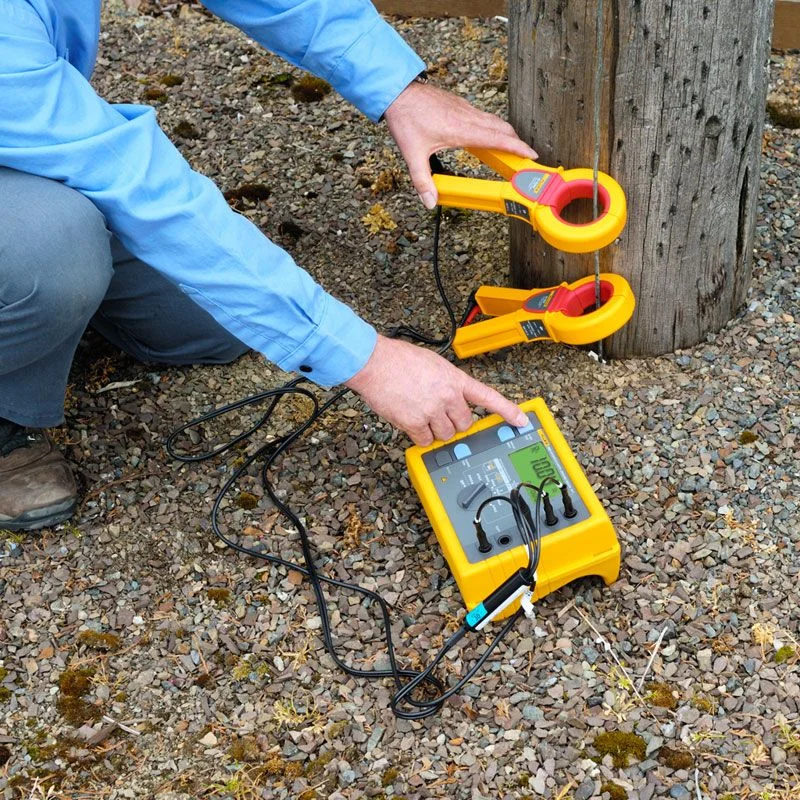

Stakeless Test without the need to drive stakes or turn off the system
The kit includes testing rods, long connection cables, a cable spool, and a durable carrying case, making it suitable for use in industrial environments and large projects.

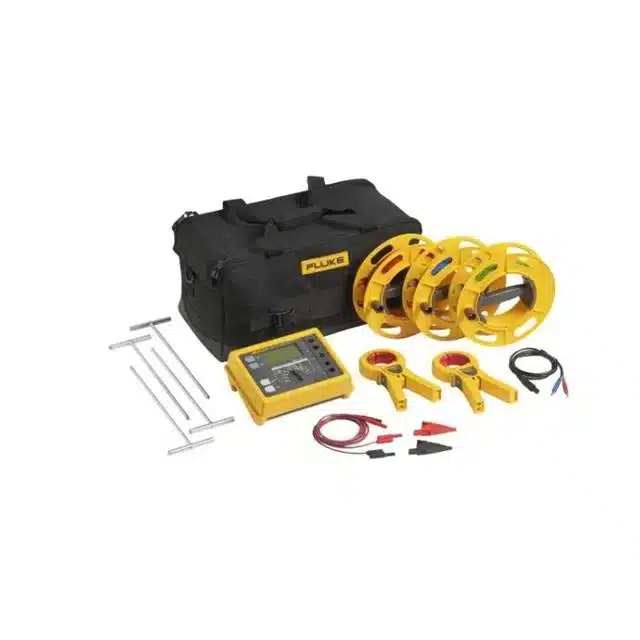

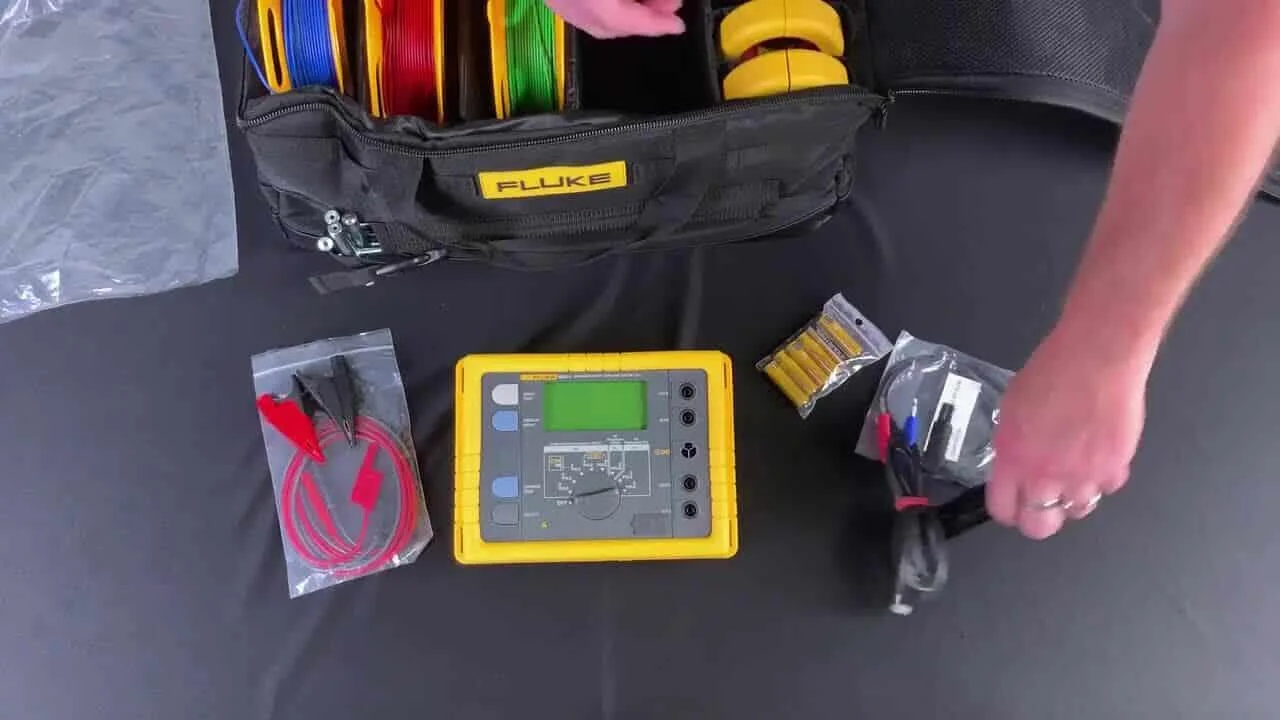

🔹 Contents of the Fluke 1625-2 Kit
-
Fluke 1625-2 digital earth tester
-
2 earth testing rods (Earth Stakes)
-
25-meter testing cables (red and blue)
-
10-meter testing cable (green)
-
Cable spool for easy transport
-
Short connection cables
-
Durable carrying case (Hard Case)
-
User manual and software
🔹 Key Features of Fluke 1625-2 Kit
-
Support for four earthing test methods (3-Wire, 4-Wire, Selective, Stakeless)
-
High accuracy in ground and electrode resistance measurement
-
Internal memory for storing over 1500 records
-
USB port for fast data transfer
-
Large display and simple user interface
-
High safety: CAT IV 600V
-
Robust design for use in heavy industrial projects
🔹 Technical Specifications of Fluke 1625-2 Kit
| Feature | Value |
|---|---|
| Ground Resistance Range | 0.02Ω to 19.99kΩ |
| Measurement Accuracy | ±(0.5% + 0.01Ω) |
| Testing Methods | Three-Wire, Four-Wire, Selective, Stakeless |
| Internal Memory | Over 1500 records |
| Communication | USB for data transfer |
| Safety | CAT IV 600V |
| Dimensions | 250 × 100 × 225 mm |
| Weight | Approximately 3 kg |
❓ Frequently Asked Questions (FAQ)
What is the difference between Fluke 1625-2 Kit and Fluke 1623-2 Kit?
The model 1625-2 has a larger memory, USB port, and higher accuracy, making it more suitable for large and complex industrial projects.
Can this kit perform earth testing without a circuit shutdown?
Yes, using the Stakeless Test and Selective Test methods, it is possible to test without turning off the system.
Is this device suitable for harsh industrial environments?
Yes, with CAT IV safety rating and robust design, this kit is ideal for use in heavy industries and facility projects.
🔚 Conclusion
Fluke 1625-2 Kit is the most complete and advanced Fluke earth testing kit that supports four testing methods, has a large internal memory, USB port, and includes all accessories, providing a comprehensive solution for earth testing in industrial and large projects.
