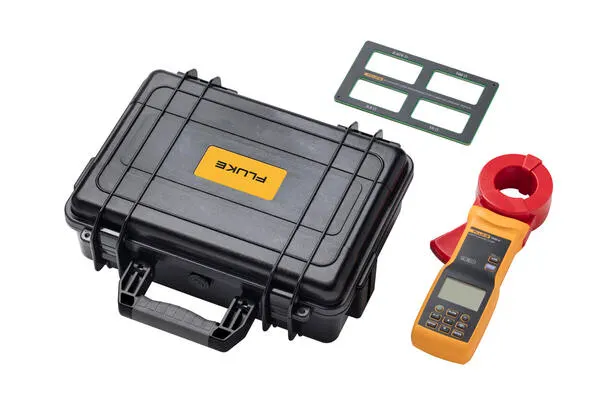

The Fluke model 1630-2 FC is designed for safe and fast measurement of the resistance of grounding systems and leakage current. This device does not require driving test rods or disconnecting the system, providing precise results simply by clamping it onto the grounding conductor.
One of the key features of this device is the wireless connectivity to the Fluke Connect® application, which allows for real-time data logging, storage, and sharing.
This earth tester is built with a safety rating of CAT IV 600V / CAT III 1000V and is ideal for industrial, utility, and construction applications.
🔹 Key Features of Fluke Model 1630-2 FC
-
Measurement of earth resistance without the need for auxiliary electrodes
-
High-accuracy leakage current testing
-
Wireless connectivity to the Fluke Connect® application for data management
-
Large and readable digital display
-
Clamp design for ease of use
-
High safety: CAT IV 600V / CAT III 1000V
-
Suitable for earth testing in industrial, commercial, and facilities sites
🔹 Technical Specifications of Fluke Model 1630-2 FC
| Feature | Value |
|---|---|
| Earth Resistance Range | 0.025Ω to 1500Ω |
| Measurement Accuracy | ±1.5% + 0.02Ω |
| Leakage Current Range | 0.2 mA to 30 A AC |
| Working Frequency of Current | 50 Hz / 60 Hz |
| Clamp Diameter | 35 mm |
| Safety | CAT IV 600V / CAT III 1000V |
| Wireless Connectivity | Fluke Connect® |
| Power Source | 2× AA Battery |
❓ Frequently Asked Questions (FAQ)
Does the Fluke 1630-2 FC require circuit disconnection?
No, this device measures earth resistance without the need for circuit disconnection or driving in test rods.
What advantage does a clamp earth tester have over a regular earth tester?
Higher speed, no need for ground preparation, and the ability to test in live systems.
Is there a possibility to store data?
Yes, with Fluke Connect®, you can store data and even analyze it in groups.
🔚 Conclusion
The Fluke 1630-2 FC is an advanced, wireless clamp earth tester that performs earth and leakage current testing quickly, safely, and without circuit disconnection. This device is an essential tool for electrical engineers and industrial technicians.
📎 Download Official Datasheet Link
👉 Download Fluke 1630-2 FC Datasheet (PDF)
