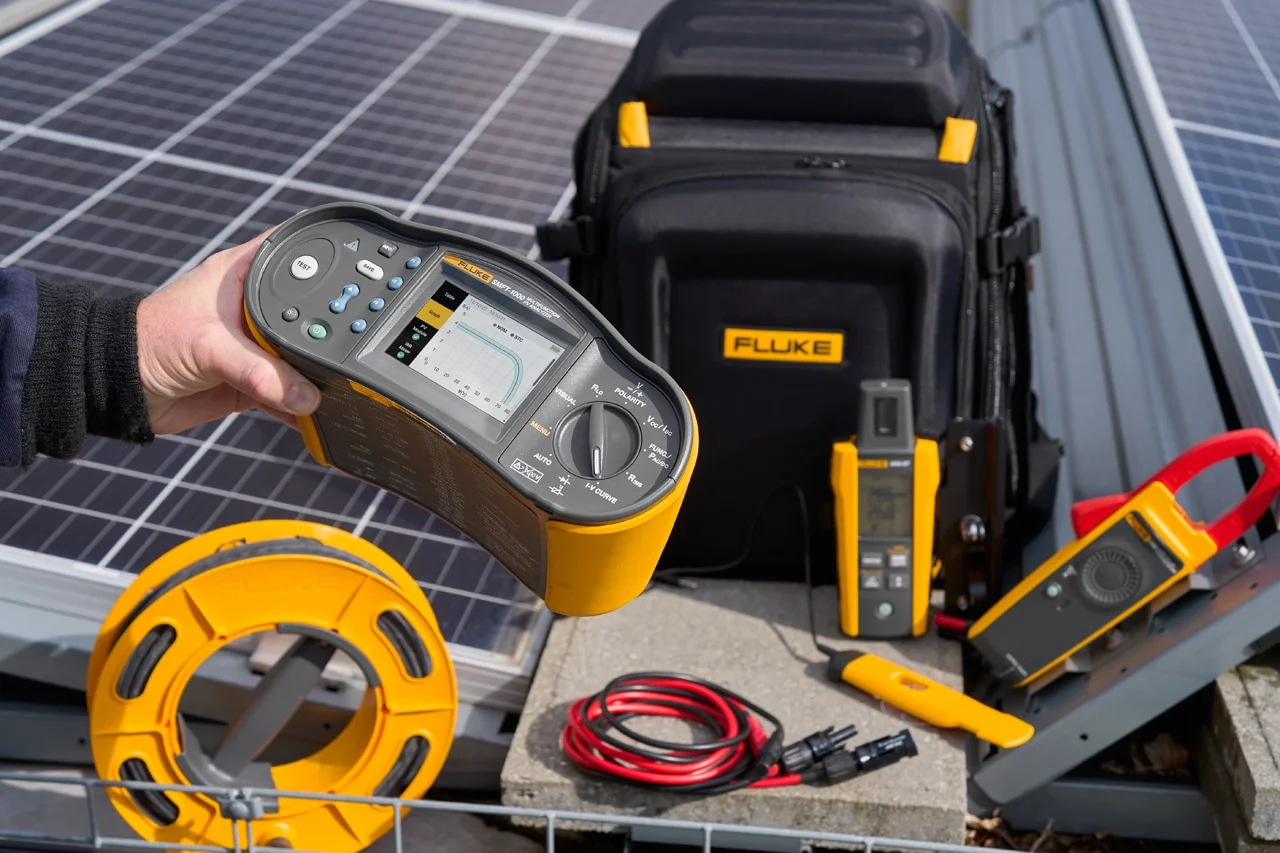

The Fluke SMFT-1000/PRO kit is a comprehensive tool for engineers, contractors, and technicians in the solar systems domain. This version includes all the standard testing and analysis capabilities of the SMFT-1000, such as I-V curve tracing, performance analysis, and PV system safety inspection according to IEC 62446-1 standards, among others.
Additionally, this version comes with more complete accessories, including:
-
AC/DC current clamp for measuring current without circuit interruption.
-
Irradiance meter for measuring solar irradiance and further data analysis.
-
TruTest software with data analysis, project management, and advanced reporting capabilities.
-
Durable case and complete field equipment for use in harsh environmental conditions.
With this kit, you can thoroughly examine and analyze PV systems during installation, commissioning, and maintenance phases, and present test results in a professional report format.
🔹 Key Features of Fluke SMFT-1000/PRO
-
I-V curve tracing and PV system performance analysis.
-
Support for safety testing according to IEC 62446-1 standards.
-
DC voltage measurement up to 1000 volts.
-
Includes current clamp, irradiance meter, probes, and complete TruTest software.
-
Rugged design for use in field environments.
-
Data transfer and reporting with TruTest.
-
Additional features compared to the KIT version.
🔹 Outstanding Technical Specifications of Fluke SMFT-1000/PRO
| Feature | Value / Range |
|---|---|
| Supported PV Voltage | Up to 1000 volts DC |
| Compliance Standard | IEC 62446-1 |
| Included Accessories | AC/DC clamp, irradiance meter, probes, complete case |
| Resistance Accuracy and Range | Insulation resistance testing at various voltages up to megaohm range |
❓ Frequently Asked Questions (FAQ)
What is the difference between the PRO version and the KIT version?
The PRO version includes more complete accessories such as current clamps and irradiance meters and offers more features for field testing, while the KIT is a more basic version.
Is this kit suitable for large solar systems?
Yes, with support for voltages up to 1000 volts and complete features, it is suitable for industrial and large projects.
How can test reports be generated?
With the TruTest software that comes with the kit, data can be entered, analyzed, and professional reports can be generated.
Datasheet
Download the Fluke SMFT-1000/PRO datasheet.
