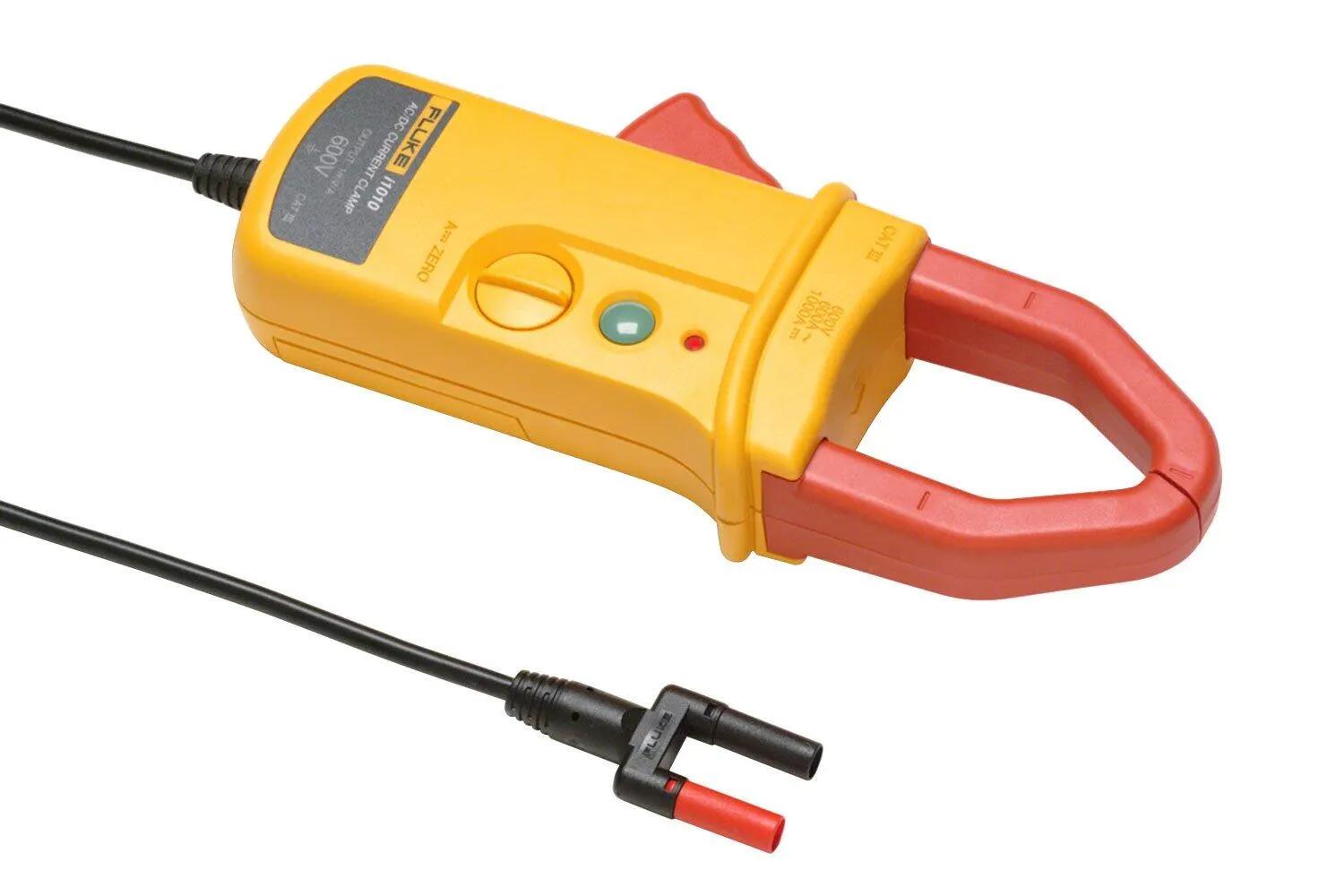

The Fluke i100 current clamp is designed for measuring AC and DC currents in industrial environments, PV systems, and electrical installations. This device employs Hall-effect technology and measures current through an open jaw without direct contact with the conductor.
One significant advantage is that it can be installed on insulated wires without disconnecting connections, making the process quicker and safer.
Additionally, the i100 clamp features a "DC zeroing" function, which enhances accuracy when measuring DC currents.
🔹 Key Features of Fluke i100
-
Measures AC and DC currents from 1 to 100 amps
-
Output of 10 mV per amp (10 mV/A) for connection to measuring devices
-
Open jaw with an opening of 34 mm
-
"DC zeroing" function to increase accuracy in DC measurements
-
Non-contact design for enhanced safety
-
Powered by 2 AA batteries with an estimated lifespan of 50 hours
-
Safety rating up to 1000 volts between terminal and ground
-
Accuracy of ±(1.5% + 0.1 amp) for DC/AC currents
🔹 Specifications of Fluke i100
| Feature | Value |
|---|---|
| Current Range | 1 A to 100 A AC/DC |
| Output | 10 mV/A (AC/DC) |
| Accuracy | ± (1.5% + 0.1 A) |
| Jaw Opening | 34 mm |
| Voltage between Terminal and Ground | Up to 1000 volts |
| Battery Life | Approximately 50 hours |
| Power Supply | 2 AA batteries |
| Weight | Approximately 0.39 kg |
❓ Frequently Asked Questions (FAQ)
Is the Fluke i100 suitable for solar (PV) systems?
Yes, it is commonly used in many PV kits as a current clamp and can measure the DC current of the solar system.
Do I need to cut the wire to measure current?
No, the non-contact design allows measurements to be taken without disconnecting the circuit.
How can I connect it to a measuring device?
The clamp's output is connected via a cable to the measuring device's current input, with an output of 10 mV/A.
