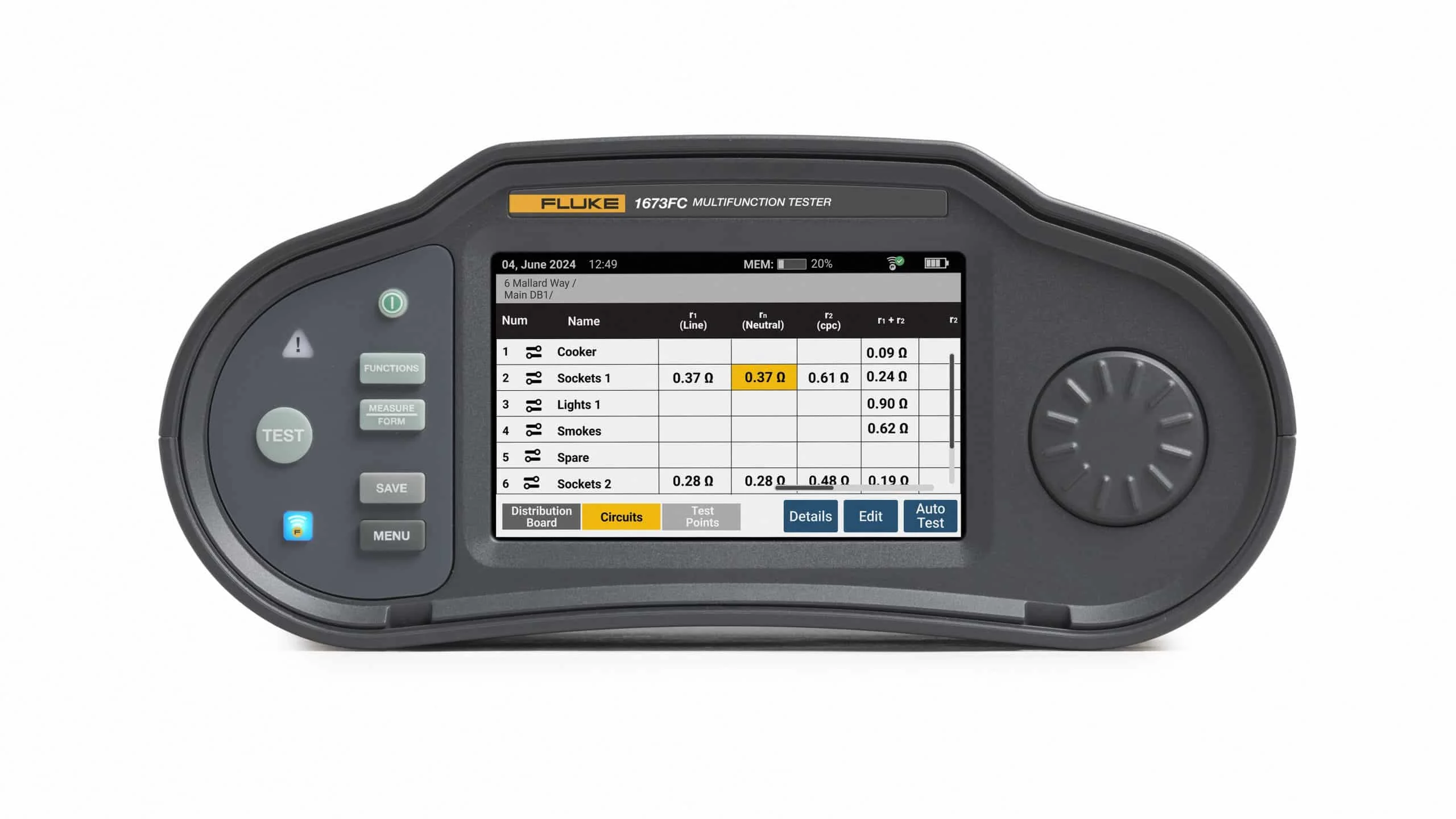

The Fluke 1673FC UK FTT is part of the 1670 series, offering all the testing capabilities for installations along with advanced features.
This device not only performs continuity testing, insulation resistance, loop impedance, RCD, and polarity tests, but it can also measure earth resistance — a feature not available in basic models.
Additionally, the FC model is equipped with Fluke Connect wireless connectivity, which facilitates sending results to mobile devices or the TruTest software.
The TruTest software enables the creation of professional reports, data storage, and testing documentation.
🔹 Key Features of Fluke 1673FC UK FTT
-
Comprehensive installation testing: continuity, insulation resistance, loop impedance, RCD, and polarity
-
Earth resistance measurement
-
Color touch interface and simple menu
-
Auto Test feature for executing automatic test sequences
-
Wireless connectivity with Fluke Connect for data management
-
TruTest software for reporting and documentation
-
Safety: CAT III 600V / CAT IV 300V rating
🔹 Key Technical Specifications of Fluke 1673FC UK FTT
| Feature | Value / Range |
|---|---|
| Earth Resistance | 200 Ω / 2000 Ω (only in models with earth measurement capability) |
| Insulation Test Voltage | 50 / 100 / 250 / 500 / 1000 volts |
| Dimensions | ≈ 26.25 × 14.19 × 11.93 cm |
| Weight with Battery | ≈ 1.6 kg |
| Battery | Li-ion model BP290 with 2500 mAh capacity |
| Safety | CAT III 600V / CAT IV 300V |
❓ Frequently Asked Questions (FAQ)
Is this model capable of testing earth resistance?
Yes, one of the distinctions of the Fluke 1673FC compared to the 1672 is the capability to measure earth resistance, as specified in the 1670 series documentation.
Is there wireless transfer of results available?
Yes, the FC model is compatible with Fluke Connect and enables wireless transmission of results.
What does the TruTest software do?
This software allows for storage, categorization, reporting, and issuance of test certificates.
