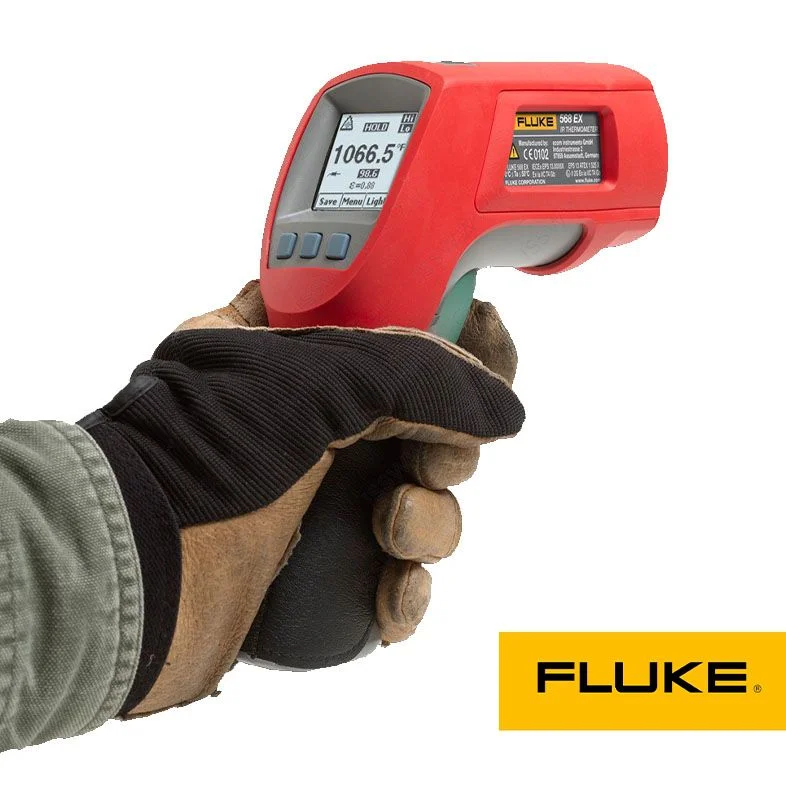

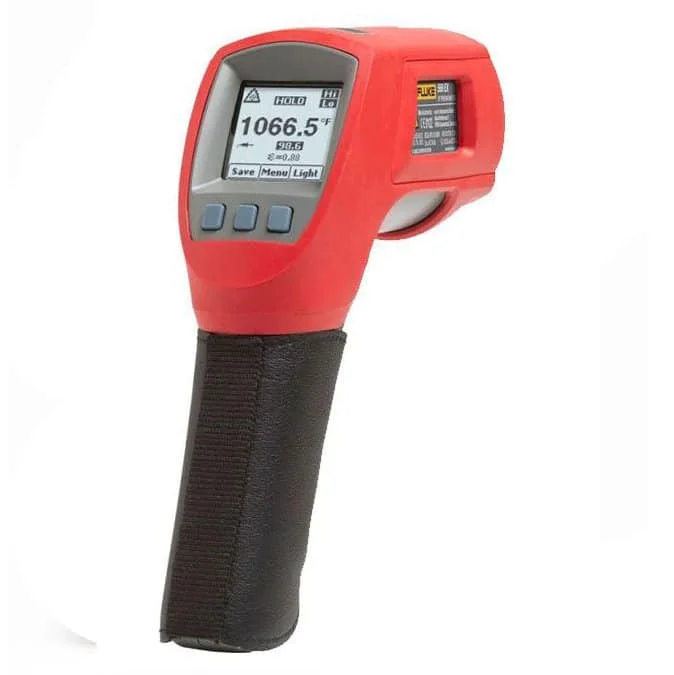

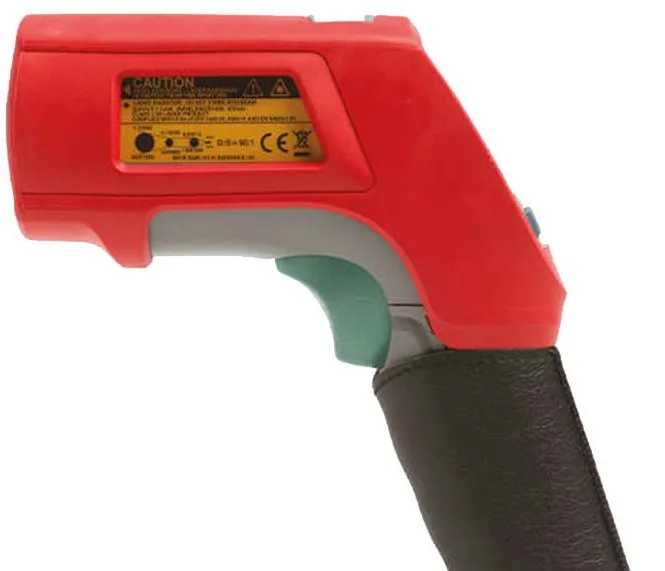

The non-contact Fluke 568Ex thermometer from Fluke is designed for quick surface temperature measurements. This device utilizes accurate laser technology, a large backlit display, and a robust design, making it an excellent choice for maintenance technicians and engineers.
Its specifications include a distance-to-spot ratio (D:S) of 50:1, resistance to drops from a height of 1 meter, and an IP40 standard for dust protection in the working environment. This model allows for the display of minimum, maximum, average values, or the difference between two measurements.
The temperature measurement range for this model is reported to be approximately -40 °C to +800 °C (-40 °F to +1472 °F). Its lightweight construction (approximately 220 g) and robust body make it easy to carry and use in workshops, repairs, and installations. In summary, the Fluke 568Ex is a powerful non-contact tool for maintenance engineers, electrical technicians, and quality control professionals who need to measure surface temperatures quickly, safely, and accurately.
🔹 Key Features of Fluke 568Ex
-
Precise laser targeting for a specified measurement point
-
Distance-to-spot ratio (D:S) of 50:1
-
Large backlit display
-
Display option for Min / Max / Avg and temperature difference (Difference)
-
Durable body able to withstand drops from a height of 1 meter
-
IP40 protection standard
-
Lightweight design suitable for tool pockets or workshop use
-
Measurement range of -40 °C to +800 °C
-
Approximate weight of 220 g
🔹 Technical Specifications (Fluke 568Ex)
| Feature | Value |
|---|---|
| Distance-to-spot ratio (D:S) | 50:1 |
| Drop resistance | 1 m |
| Protection class | IP40 |
| Temperature measurement range | -40 °C to +800 °C |
| Weight | Approximately 220 g |
| Battery | 2 × AAA |
| Measurement accuracy | ±1% or ±1.0 °C (±2.0 °F), whichever is greater |
| Display resolution | 0.1 °C (0.2 °F) |
| Device dimensions | 176.9 × 51.8 × 163.6 mm |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage temperature | -20 °C to +60 °C (-4 °F to 140 °F) (without batteries) |
| Operating humidity | 10% to 90% non-condensing relative humidity at 30 °C (86 °F) |
❓ Frequently Asked Questions (FAQ)
Question 1: Is the Fluke 568Ex suitable for measuring surface temperatures on production lines?
Answer: Yes, with laser targeting, a backlight display, and an appropriate temperature range, this device is a good choice for quickly measuring surface temperatures in industrial environments.
Question 2: Can this device accurately measure distant point temperatures?
Answer: Yes, the 50:1 distance-to-spot ratio allows for measurements to be taken from a reasonable distance, although care should be taken regarding the size of the area when the distance becomes large.
Question 3: Is the body of the device durable in industrial environments?
Answer: Yes, the device can withstand drops from a height of 1 meter and has an IP40 protection grade, allowing use in workshops and semi-industrial environments.
Question 4: How long does the battery of the device last?
Answer: The device operates on two AAA batteries; the exact lifespan depends on the frequency of laser and backlight usage.
🔚 Conclusion
If you are looking for an immediate, non-contact industrial tool for measuring surface temperatures, Fluke 568Ex is an excellent choice.
This device offers a combination of accuracy, speed, and durability, designed for technicians, maintenance engineers, and quality control activities in factories or facilities.
Choosing Fluke 568Ex means having a reliable tool for temperature measurement with minimal...
