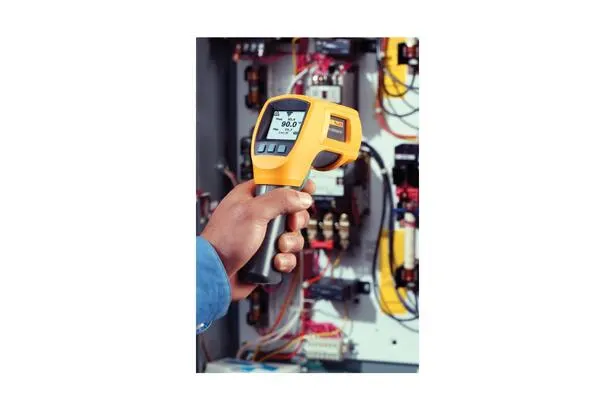

The Fluke 566 laser thermometer is designed to measure temperature in industrial processes, mechanical installations, and electrical equipment with the highest accuracy. This device has a temperature range of –40 °C to +650 °C (–40 °F to +1202 °F), suitable for a wide variety of applications.
The large display with a backlight and multilingual menu simplifies operation in various conditions. Moreover, it allows connection to a K-type thermocouple for direct temperature measurement at contact points.
The Fluke 566 features programmable emissivity settings and data storage capabilities for quick comparison and analysis of measured values. Its ergonomic design and quick-response trigger make it ideal for use in industrial environments.
🔹 Key Features of Fluke 566
Temperature measurement range: –40 °C to +650 °C
Support for K-type thermocouple
High accuracy with adjustable emissivity settings (0.10 to 1.00)
Large display with backlight
Data storage and quick result review
Dual laser indicator for precise measurement point determination
Robust body suitable for harsh industrial conditions
🔹 Technical Specifications of Fluke 566
| Feature | Value |
|---|---|
| Temperature range (IR) | –40 °C to +650 °C (–40 °F to +1202 °F) |
| Supported thermocouple type | K Type |
| Measurement accuracy | ±1 % of reading or ±1 °C (whichever is greater) |
| Emissivity settings | 0.10 to 1.00 (with 0.01 step) |
| Distance to spot ratio (D:S) | 30:1 |
| Power supply | 2×AA batteries |
| Weight | ≈ 0.4 kg |
| Dimensions | 256×199×90 mm |
❓ Frequently Asked Questions (FAQ)
1. Can the Fluke 566 measure the temperature of moving objects?
Yes, with its dual laser indicator, this device is very accurate for measuring moving or distant objects.
2. Does this model allow connection to a computer?
No, the Fluke 566 lacks USB connectivity, and data is viewed in internal memory.
3. What is the difference between the Fluke 566 and Fluke 568?
The 568 model includes USB connectivity and data logging software, while the 566 is a simpler version at a more economical price.
4. Can emissivity be adjusted for different materials?
Yes, this device allows emissivity adjustments for various materials such as metals, plastics, and ceramics.
🔚 Conclusion
The Fluke 566 laser thermometer is an ideal choice for engineers and technicians who require high precision and reliable performance in temperature measurements. The combination of infrared technology and K-type thermocouple makes this model a professional and trustworthy option in industrial environments, facilities, and advanced repairs.
