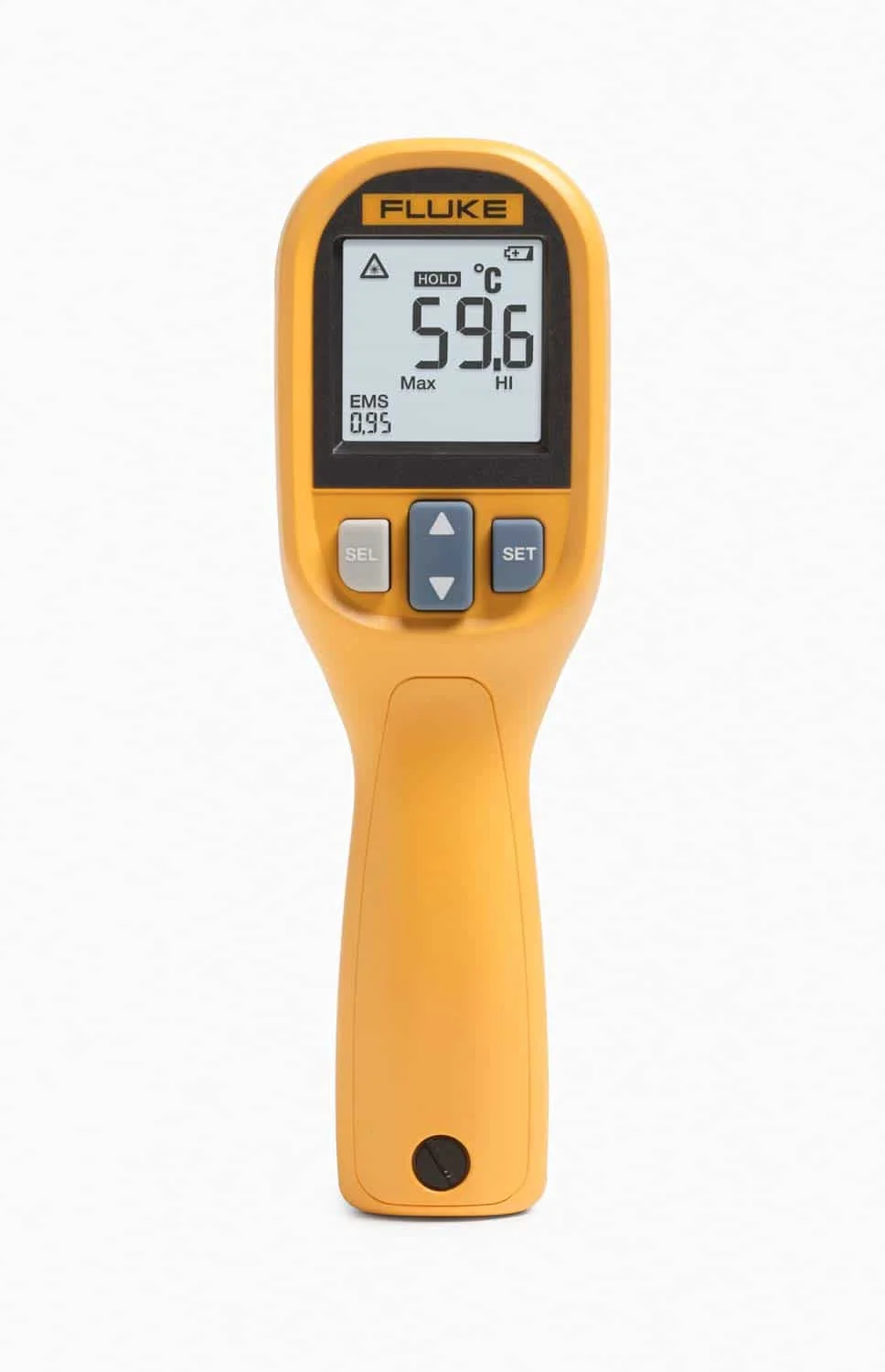

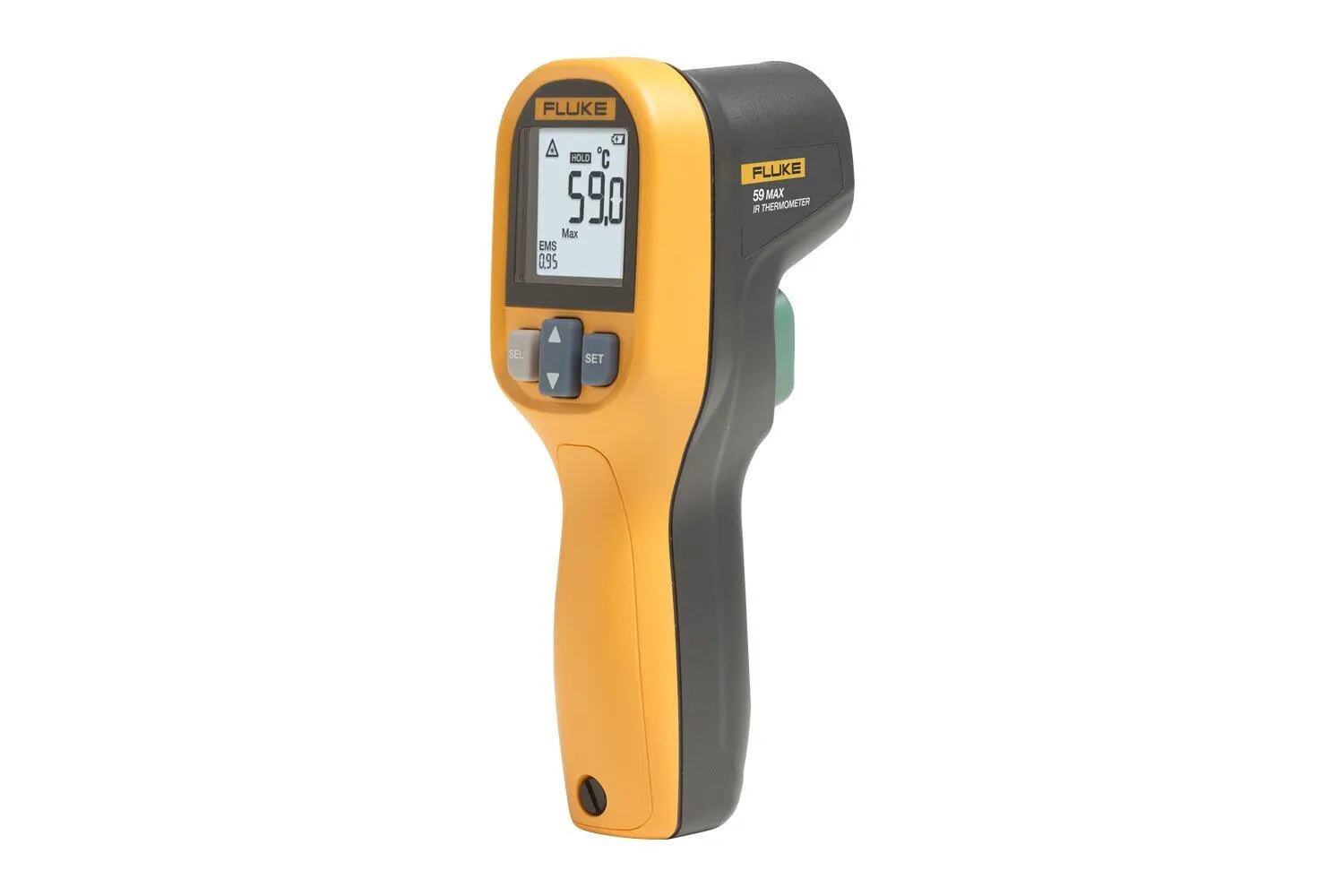

The non-contact Fluke 59 MAX+ thermometer from Fluke is designed for quick surface temperature measurements. This device, utilizing accurate laser technology, a large backlit display, and a compact design, is an excellent choice for maintenance technicians and engineers.
Key features of this device include a distance-to-spot ratio (D:S) of 10:1, resistance to drops from a height of 1 meter, and an IP40 standards rating to prevent dust ingress in work environments. This model allows for the display of minimum, maximum, or average values, or the difference between two measurements.
The temperature measurement range for this model is from approximately -30 °C to +500 °C (-22 °F to +932 °F). Its very lightweight (approximately 220 g) and durable body simplify carrying and usage in workshops, repair jobs, and installations.
In summary, the Fluke 59 MAX+ is a powerful non-contact tool for maintenance engineers, electrical technicians, and quality control professionals who need to measure surface temperatures quickly, safely, and accurately.
🔹 Key Features of Fluke 59 MAX+
-
Precise laser targeting for specified measurement point
-
Distance-to-spot ratio (D:S) of 10:1
-
Large backlit display
-
Ability to display Min/Max/Average and temperature difference
-
Durable body, drop resistant from 1 meter
-
IP40 protection rating
-
Lightweight design suitable for tool pockets or workshops
-
Measurement range of -30 °C to +500 °C
-
Approximate weight of 220 g
🔹 Technical Specifications (Fluke 59 MAX+)
| Feature | Value |
|---|---|
| Distance to Spot Ratio (D:S) | 10:1 |
| Drop Resistance | 1 m |
| Protection Rating | IP40 |
| Temperature Measurement Range | -30 °C to +500 °C |
| Weight | Approximately 220 g |
| Battery | 1 × AA |
| Battery Life | 12 hours with laser and backlight on |
| Measurement Accuracy | ±0.8% of reading or ±1.0 °C (±2.0 °F), whichever is greater |
| Display Resolution | 0.1 °C (0.2 °F) |
| Device Dimensions | 156 × 80 × 50 mm (6.14 × 3.15 × 2 inches) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temperature | -20 °C to +60 °C (-4 °F to 140 °F) (without battery) |
| Operational Humidity | 10% to 90% relative non-condensing humidity at 30 °C (86 °F) |
❓ Frequently Asked Questions (FAQ)
Question 1: Is the Fluke 59 MAX+ suitable for measuring surface temperatures in production lines?
Answer: Yes, with laser targeting, a backlit display, and an appropriate temperature range, this device is a good choice for quickly measuring surface temperatures in industrial environments.
Question 2: Can this device accurately measure distant points' temperatures?
Answer: Yes, the 10:1 distance-to-spot ratio allows for measurements of specific points at a reasonable distance, though care must be taken regarding the size of the measuring spot at longer distances.
Question 3: Is the device's body durable for industrial environments?
Answer: Yes, the device can withstand drops from 1 meter and has an IP40 rating, making it suitable for use in workshops and semi-industrial settings.
Question 4: How long does the battery last?
Answer: The device operates on one AA battery; the battery life will depend on the usage of the laser and backlight.
🔚 Conclusion
If you are looking for a quick, non-contact, and industrial tool for measuring surface temperatures, the Fluke 59 MAX+ is a highly suitable choice.
