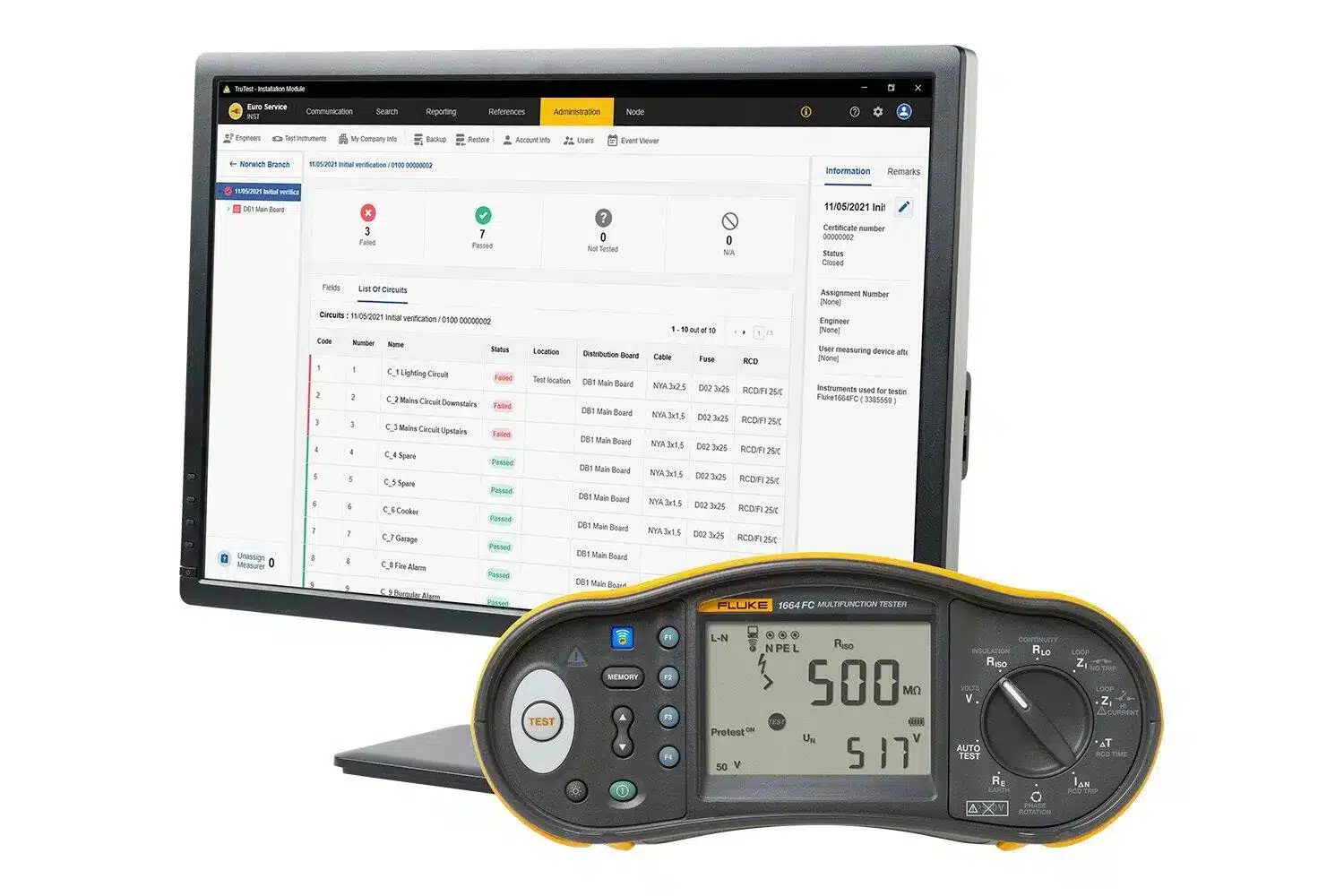

Fluke 1664 FC is the most comprehensive member of the 1660 family designed for electricians, contractors, and professional technicians.
This device performs all standard installation tests, including:
-
Continuity Test
-
Insulation Resistance Test
-
RCD Test
-
Loop Impedance Test
-
Polarity Test
-
Voltage Measurement
is performed.
The distinguishing feature of this model is the Insulation PreTest, which prevents insulation testing when devices are connected to the circuit, thereby avoiding damage to sensitive equipment.
Moreover, with the Fluke Connect® capability, data is wirelessly transmitted to mobile devices or computers, enabling fast reporting and sharing.
🔹 Key Features of Fluke 1664 FC
-
Complete execution of installation tests according to safety standards
-
The Insulation PreTest feature to prevent damage to connected equipment
-
Wireless connectivity to mobile devices and computers via Fluke Connect®
-
Automated testing (Auto Test) functionality for time savings
-
Data storage and management for professional projects
-
Large and user-friendly display
-
High safety: CAT III 500V / CAT IV 300V
-
Robust design for industrial and construction work
🔹 Technical Specifications of Fluke 1664 FC
| Feature | Value |
|---|---|
| Continuity Test | Up to 2000 Ω |
| Insulation Resistance Test | Up to 1000 V DC |
| RCD Test | Current up to 500 mA |
| Voltage Test | 0 – 500 V AC/DC |
| Loop Impedance Test | Precise Loop/Line Measurement |
| Data Storage Capability | Yes (internal memory) |
| Communication | USB and Wireless Fluke Connect® |
| Safety | CAT III 500V / CAT IV 300V |
| Weight | Approximately 1.3 kg |
❓ Frequently Asked Questions (FAQ)
What is the difference between Fluke 1664 FC and Fluke 1663?
The model 1664 FC, in addition to the capabilities of the 1663, features Insulation PreTest and wireless Fluke Connect® communication.
Is this device suitable for large industrial projects?
Yes, with wireless connectivity and data storage capability, it is very practical for large industries and professional contractors.
Is it possible to prevent damage to sensitive equipment?
Yes, with the Insulation PreTest feature, the device intelligently prevents testing if equipment is connected.
🔚 Conclusion
Fluke 1664 FC is the smartest installation tester from Fluke, which, in addition to covering essential safety tests, with wireless connectivity, data storage, and Insulation PreTest, makes it an excellent choice for professional and industrial projects.
