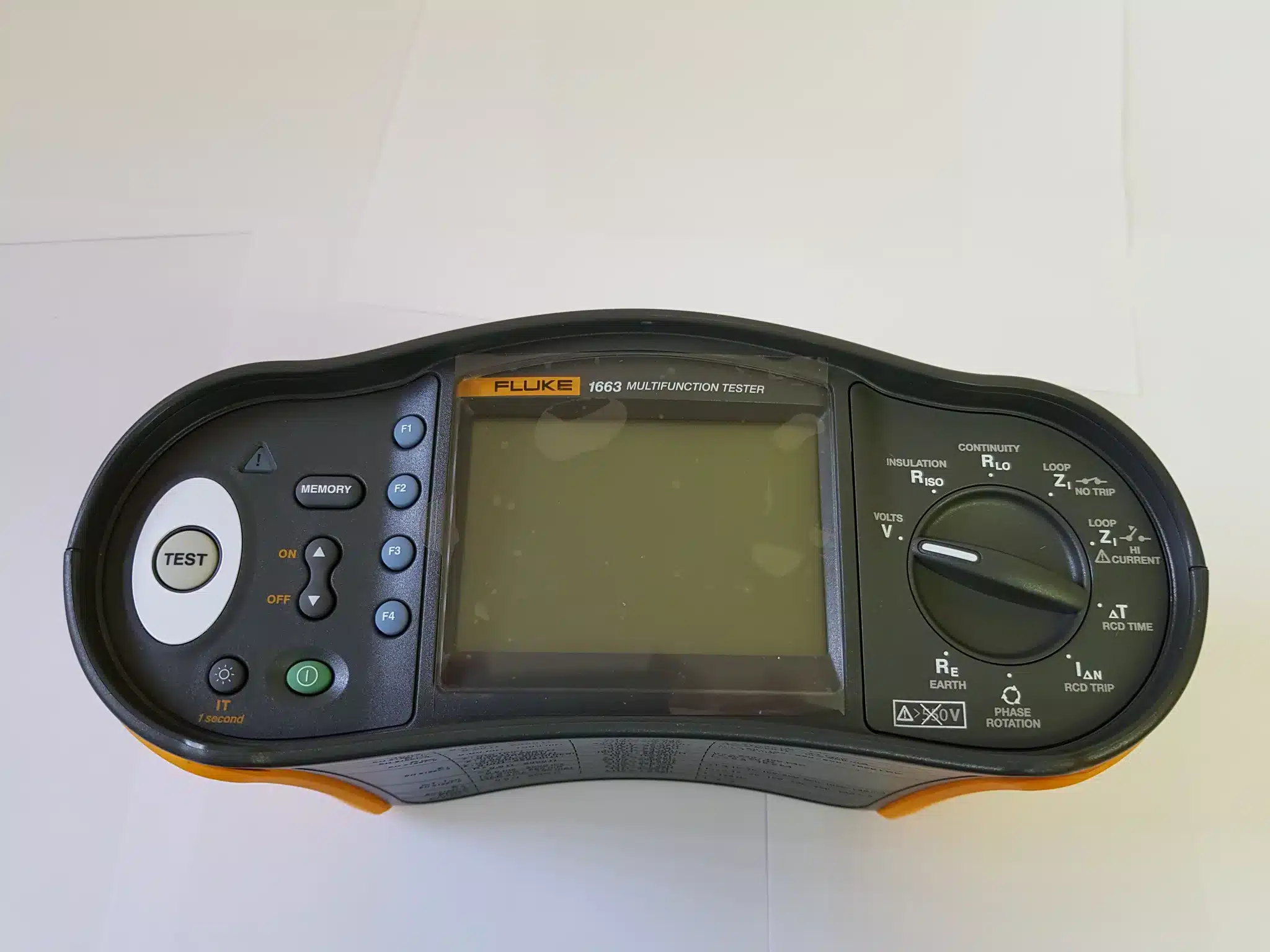

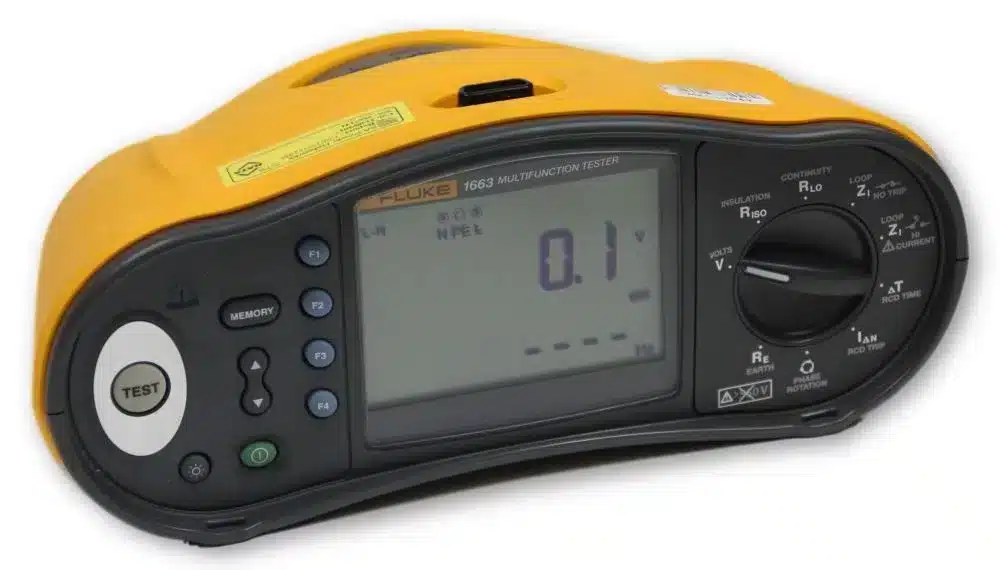

The Fluke 1663 installation tester is a superior generation of the 1662 model, offering more features for professional use beyond basic tests.
This device performs all essential tests, including:
-
Continuity Test
-
Insulation Resistance Test
-
High-Accuracy RCD Test
-
Loop Impedance Test
-
Polarity Test
-
AC/DC Voltage Measurement
.
The main difference between this model and the Fluke 1662 is the data storage and USB transfer capabilities, Auto Test feature, and additional functionalities for professional project applications.
🔹 Key Features of the Fluke 1663
-
Conducts all essential electrical installation tests
-
Data storage capability for better project management
-
Data transfer via USB
-
Auto Test functionality for time-saving
-
High-readability digital display
-
Safety: CAT III 500V / CAT IV 300V
-
Durable and portable design for industrial and professional use
🔹 Technical Specifications of the Fluke 1663
| Feature | Value |
|---|---|
| Continuity Test | Up to 2000 Ω |
| Insulation Resistance Test | Up to 1000 V DC |
| RCD Test | Current up to 500 mA |
| Voltage Test | 0 – 500 V AC/DC |
| Loop Impedance Test | Precise Loop/Line Measurement |
| Data Storage Capability | Yes (internal memory) |
| Communication | USB for data transfer |
| Safety | CAT III 500V / CAT IV 300V |
| Weight | Approximately 1.3 kg |
❓ Frequently Asked Questions (FAQ)
What is the difference between Fluke 1663 and Fluke 1662?
The 1663 model has features such as data storage, USB, and Auto Test, while the 1662 only covers basic tests.
Is it possible to manage data?
Yes, test results can be stored and transferred to a computer via USB.
Is the Fluke 1663 suitable for large industrial projects?
Yes, this model is designed for professional contractors and industrial projects.
🔚 Conclusion
The Fluke 1663 is an advanced and comprehensive installation tester that not only covers essential electrical safety tests but also features data storage, USB, and Auto Test capabilities, making it an ideal choice for technicians and professional contractors.
