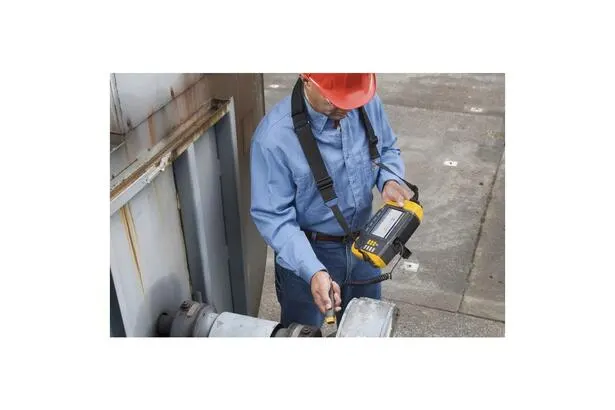

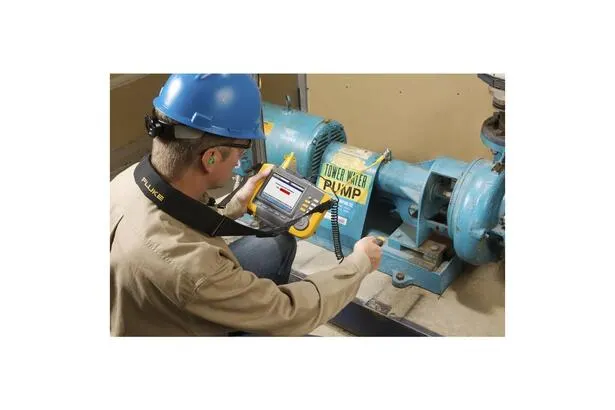

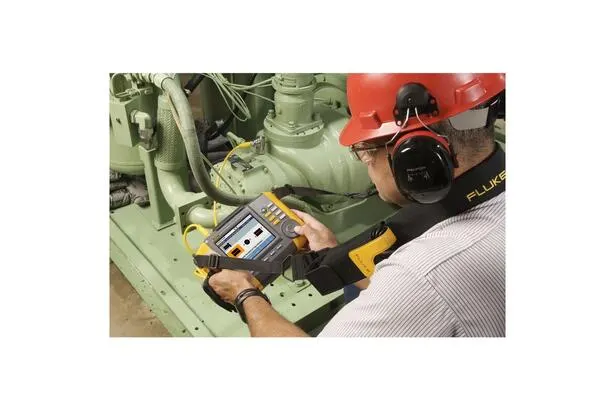

The Fluke 810 Vibration Tester is a powerful tool for diagnosing and analyzing mechanical vibrations.
Utilizing Smart Vibration Diagnosis technology, this device can identify the type and severity of faults without requiring deep knowledge of vibration analysis.
Fluke 810 tells you exactly where the problem is — from misalignment to unbalance, looseness, and bearing faults.
With a color display, graphical user interface, and smart menu, operating this device is very easy, even for non-specialist users.
This device is designed for predictive maintenance teams to identify problems before complete equipment failure and prevent production downtime.
🔹 Key Features of Fluke 810
-
Automatic detection of mechanical fault type and severity
-
Smart Diagnosis algorithm
-
Vibration measurement in three axes
-
Instant result display in numerical and graphical formats
-
Internal library with troubleshooting patterns
-
Compatibility with piezoelectric accelerometer sensors
-
Data storage and analysis with Fluke Viewer PC software
-
Large color display and simple user interface
-
Rugged industrial design for harsh environments
🔹 Technical Specifications of Fluke 810
| Feature | Value |
|---|---|
| Frequency Range | 2 Hz to 20 kHz |
| Measurement Accuracy | ±5% |
| Acceleration | Up to 50 g |
| Velocity | Up to 200 mm/s |
| Displacement | Up to 5000 µm |
| Number of Channels | 1 channel (three-axis input with switch) |
| Internal Memory | 2 GB |
| Display Type | ¼ VGA color LCD with backlight |
| Communication Port | USB for data transfer |
| Supported Software | Fluke Viewer PC Software |
| Power Supply | Rechargeable lithium battery |
| Battery Life | Approximately 8 hours of operation |
| Weight | 1.6 kg |
| Safety | CE, EN 61010-1, CAT II 100V |
| Operating Temperature | 0°C to +50°C |
❓ Frequently Asked Questions (FAQ)
What is the difference between the Fluke 810 and the Fluke 805?
The Fluke 805 only displays the vibration magnitude, while the Fluke 810 identifies the cause of failure through automatic analysis.
Is it suitable for non-specialist users?
Yes, with the Smart Diagnosis system, users can view fault reasons without needing to interpret data.
Can results be analyzed on a computer?
Yes, data can be transferred and analyzed using USB via the Fluke Viewer PC software.
Is it usable for large industrial motors as well?
Yes, the Fluke 810 is designed for a wide range of rotating machinery.
🔚 Conclusion
The Fluke 810 vibration analyzer combines high precision and intelligent analysis. It is designed for effective fault detection in mechanical systems. With its user-friendly interface and advanced diagnostics, it empowers maintenance teams to enhance their operational efficiency.
