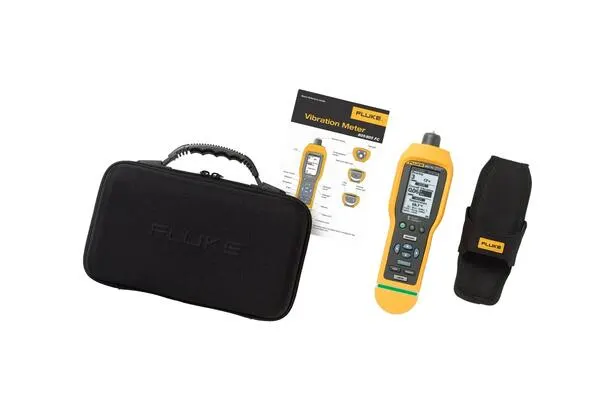

Fluke 805 FC is a specialized tool for assessing the condition of bearings, electric motors, pumps, and rotating equipment.
This device measures vibration and key mechanical condition parameters, sending data for predictive analysis.
With its precise internal sensor and condition analysis algorithm, Fluke 805 FC displays the vibration level numerically (Overall Vibration) as well as the health status of the bearing across four levels: Good, Satisfactory, Needs Review, and Needs Replacement.

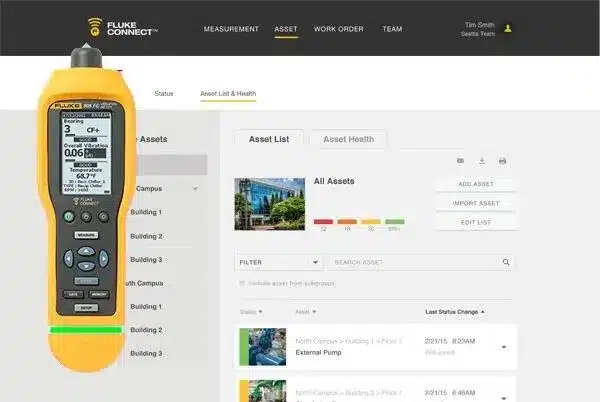

The Fluke Connect Wireless capability allows you to view, store, and share data directly on your smartphone without the need for cables.
This feature is highly practical for maintenance teams.
🔹 Key Features of Fluke 805 FC
-
Overall vibration measurement (10 Hz – 1 kHz) for detecting imbalance and mechanical looseness
-
Vibration intensity measurement in bearings (4 kHz – 20 kHz) for bearing condition analysis
-
Equipped with Fluke Connect wireless communication for data transmission
-
Rugged design with an IP54 protection rating
-
Backlit display for operation in dark environments
-
Internal memory for data storage and comparative analysis
-
USB output capability for data transfer to a computer
-
Safety classification CAT II 100 V
🔹 Technical Specifications of Fluke 805 FC
| Feature | Value |
|---|---|
| Frequency range | 10 Hz – 1 kHz (General) / 4 kHz – 20 kHz (Bearing) |
| Acceleration measurement range | 0 – 50 g PEAK |
| Velocity range | 0 – 20 mm/s RMS |
| Display resolution | 0.01 g / 0.01 mm/s |
| Internal memory | 3,500 measurements |
| User interface | LCD display with backlight |
| Wireless connectivity | Fluke Connect Bluetooth |
| Protection rating | IP54 |
| Power supply | 4 AA batteries (approximately 10 hours of operation) |
| Weight | 400 grams |
| Dimensions | 22.5 × 6.5 × 5 cm |
❓ Frequently Asked Questions (FAQ)
Is the Fluke 805 FC suitable for bearing condition monitoring?
Yes, this device is specifically designed for detecting bearing faults and is equipped with a BDS indicator.
Can the data be sent to mobile?
Yes, data can be wirelessly transmitted via the Fluke Connect software.
Is it usable in humid industrial environments?
Yes, it has an IP54 protection rating, making it resistant to dust and moisture.
When does it need calibration?
According to the manufacturer's manual, annual calibration is recommended to maintain accuracy.
🔚 Conclusion
Fluke 805 FC is a professional tool for monitoring the condition of rotating machinery.
With high accuracy, bearing analysis, and wireless communication, this device is an ideal choice for preventive maintenance across various industries.
📎 Official Datasheet Link
👉 Download the datasheet Fluke 805 FC (PDF)
